AW86223QNR

Low Power F0 Detect and Tracking LRA Haptic Driver

Datasheet :
Preview - AW86223QNR - Datasheet
Ref.Price
  • 1-99￥9.33
  • 100-249￥7.65
  • 250-499￥6.16
  • 500-999￥4.85
  • 1000+￥3.73

Product details

Voltage Type Vbat
Vout (Max) (V) 5.5
SRAM (kB) 3
Istandby (μA) 3
IO Level (V) 1.8<br>3.3
AAE YES
Input Signal IIC<br>3TRIG
LRA Calibration LCC2.0
Temperature -40℃~85℃
TikTap YES
Package (mm) QFN 2X2-12L
QFN 2X2-12L
1MHz I2C Bus
Integrated 3K Memory
12k/24k/48k input wave sampling rate
F0 detect and tracking
Advance autobrake engine integrated
Playback mode:
Real time playback
Memory playback
3 Trigger playback
Cont playback
PWM playback
Resistance-Based LRA Diagnostics
Drive signal monitor for LRA protect
Drive Compensation Over Battery Discharge
Fast Start Up Time: 0.4ms
Dedicated interrupt output pin
Support automatically switch to standby mode
Standby current: 3μA
Shutdown current: <1μA
Supply voltage range 3 to 5.5V
Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection
QFN 2mmX2mmX0.5mm-12L Package
AW86223 is a low cost H-bridge, single chip LRA haptic driver, with F0 detecting and tracking based on BEMF, supporting real time playback, memory playback, CONT, PWM, and hardware pin trigged playback with fast start up time. All these make the AW86223 an ideal candidate for haptic driver.
AW86223 integrates a 3KByte SRAM for user-defined waveforms to achieve a variety of vibration experiences, supporting 3 sampling rate(12k/24k/48k) of waveforms loaded in SRAM, supporting output waveform sampling rate up-sampling to 48k.
AW86223 integrates an autobrake engine to suppress the aftershocks to zero for different drive waveforms (short or long) on different LRA motors.
AW86223 supports LRA fault diagnostic based on resistance measurement and protections of short-circuit, over-temperature and under-voltage.
AW86223 features configurable automatically switch to standby mode after haptic waveform playback finished. This can less quiescent power consumption. The RSTN pin provides further power saving by fully shut down the whole device. Dedicated interrupt output pin can detect real time FIFO status and the error status of the chip.
AW86223 features general settings are communicated via an I2C-bus interface.
AW86223 is available in a QFN 2mmX2mmX0.5mm-12L package.

Technical documentation
Type
Title
Date
Product Design Guide AW862XX Software Design Guide   2023-09-11
Datasheet DS_AW86223QNR_EN_V2.3   2023-09-25

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

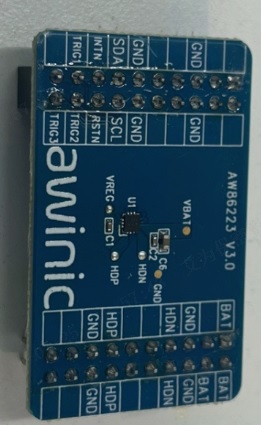

AW86223 V3.0 — Performance evaluation boards suitable for Haptic chips AW86223\233, used in conjunction with V3.0 or higher baseboards

AW86223\233 chip EVB evaluation board

View options

Evaluation board

AW86223 Top Board V1.0 — It is suitable for performance evaluation board of Haptic chip AW86223、AW86214, and used with V1.0 baseplate

AW86223、AW86214 chip EVB evaluation board

View options
Software development

DRIVER OR LIBRARY

HapticNv_Drivers — Android drivers for HAPTIC_NV series.

Android drivers for HAPTIC_NV series，including sample code,porting guide,debuging guide,etc.

View options

APPLICATION SOFTWARE&FRAMEWORK

AW862xx_GUI — AW862XX series Tunning Tool

AW862XX GUI is a highly intergrated and easy-to-use tool for product configuration and debugging. Intuitive interface and uer-friendly operation can help customers shorten development cycle and complete system intergration quickly.

View options
Hardware development

Evaluation board

AW86223 V3.0 — Performance evaluation boards suitable for Haptic chips AW86223\233, used in conjunction with V3.0 or higher baseboards

AW86223\233 chip EVB evaluation board

View options

Evaluation board

AW86223 Top Board V1.0 — It is suitable for performance evaluation board of Haptic chip AW86223、AW86214, and used with V1.0 baseplate

AW86223、AW86214 chip EVB evaluation board

View options
Software development

DRIVER OR LIBRARY

HapticNv_Drivers — Android drivers for HAPTIC_NV series.

Android drivers for HAPTIC_NV series，including sample code,porting guide,debuging guide,etc.

View options

APPLICATION SOFTWARE&FRAMEWORK

AW862xx_GUI — AW862XX series Tunning Tool

AW862XX GUI is a highly intergrated and easy-to-use tool for product configuration and debugging. Intuitive interface and uer-friendly operation can help customers shorten development cycle and complete system intergration quickly.

View options
