AW86215SPR-Q1

Low Power F0 Detect and Tracking LRA Haptic Driver

Datasheet :

Product details

Parameters

Voltage Type	Vbat
Vout (Max) (V)	5.5
SRAM (kB)	3
Istandby (μA)	2
IO Level (V)	1.2 1.8 3.3
AAE	YES
Input Signal	IIC 1TRIG
LRA Calibration	LCC3.0
Temperature	-40℃~105℃
TikTap	YES
Package (mm)	MSOP-10L

Package | Pins | Size

MSOP-10L

Features

 1MHz I2C Bus  Integrated 3K Memory  12k/24k/48k input wave sampling rate  F0 detect and tracking  Advance autobrake engine integrated  Playback mode:  Real time playback  Auto dynamic sine playback  Memory playback  Trigger playback  Cont playback  Resistance-Based LRA Diagnostics  Drive signal monitor for LRA protect  Drive Compensation Over Battery Discharge  Fast Start Up Time: 0.4ms  Reused interrupt output pin  Support automatically switch to standby mode  Standby current: 2μA  Shutdown current:<1μA  Supply voltage range 2.7 to 5.5V  Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection  AECQ100-Grade2

Description

AW86215 is a low cost H-bridge, single chip LRA haptic driver, with F0 detecting and tracking based on BEMF, supporting real time playback, memory playback, Cont playback, and hardware pin trigged playback with fast start up time. All these make the AW86215 an ideal candidate for haptic driver. AW86215 integrates a 3KByte SRAM for user-defined waveforms to achieve a variety of vibration experiences, supporting 3 sampling rate(12k/24k/48k) of waveforms loaded in SRAM, supporting output waveform sampling rate up-sampling to 48k. AW86215 integrates an autobrake engine to suppress the aftershocks to zero for different drive waveforms (short or long) on different LRA motors. AW86215 supports LRA fault diagnostic based on resistance measurement and protections of short-circuit, over-temperature and under-voltage. AW86215 features configurable automatically switch to standby mode after haptic waveform playback finished. This can less quiescent power consumption. The RSTN pin provides further power saving by fully shut down the whole device. Reused interrupt output pin can detect real time FIFO status and the error status of the chip. AW86215 features general settings are communicated via an I2C-bus interface

Technical documentation

	Type	Title		Language		Date
	Datasheet	DS_AW86215_EN_V1.0		英文		2025-08-07
	Product Design Guide	DG_AW86215_Software_Design_Guide_EN_V1.0		英文		2025-08-25

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

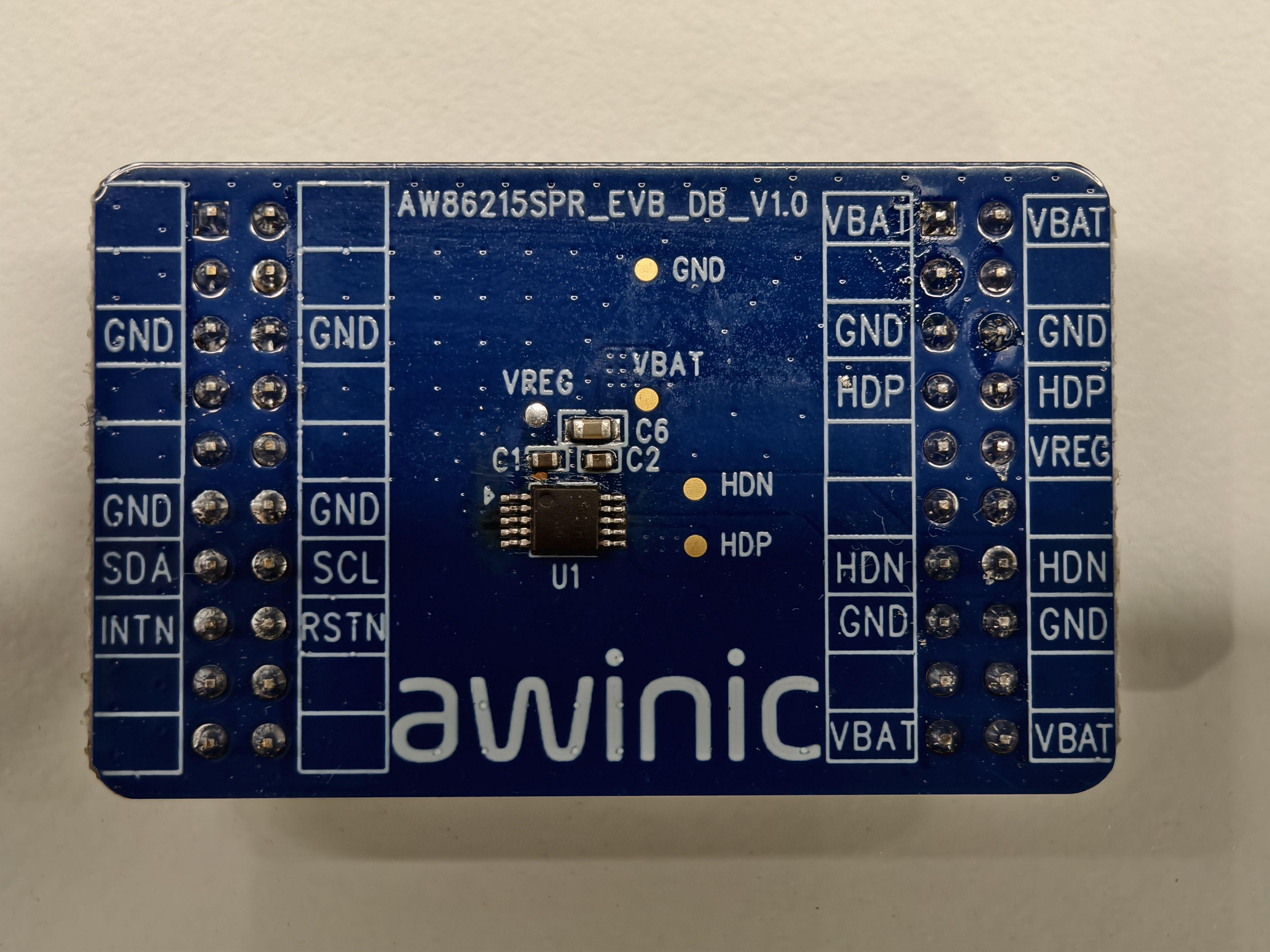

AW86215SPR_EVB_DB_V1.0 — A performance evaluation board suitable for the AW86215 and AW86236R Haptic chips, used in conjunction with Haptic motherboards.

This performance evaluation board is suitable for the two LRA driver chips, AW86215 and AW86236R, and needs to be used in conjunction with the Haptic motherboard. Combined with the GUI, users can control the RAM, RTP, CONT and other modes of the chip to play vibration waveforms, and evaluate the vibration effect of the motor and the working performance of the chip.

View options

Software development

APPLICATION SOFTWARE&FRAMEWORK

AW86215_GUI — AW86215 Tunning Tool

AW86215 GUI is a highly intergrated and easy-to-use tool for product configuration and debugging. Intuitive interface and uer-friendly operation can help customers shorten development cycle and complete system intergration quickly.

View options

DRIVER OR LIBRARY

AW86215 _Driver — MCU dirver for AW86215

AW86215 Driver,includeing sample code,porting guide,debugging guide etc

View options

Hardware development

Evaluation board

AW86215SPR_EVB_DB_V1.0 — A performance evaluation board suitable for the AW86215 and AW86236R Haptic chips, used in conjunction with Haptic motherboards.
