AW86068CSR

Optical Image Stabilization (OIS) Controller and Driver

Datasheet :

Product details

Parameters

Actuator Type	SOC-OIS
Output I(mA)	±160
VDD (Max) (V)	3.6
VDD (Min) (V)	2.6
I2C (Hz)	100K 400K 1M
I2C Addr	Configurable
IQ (mA)	5
ISD (μA)	12
Temperature	-40℃~85℃
Control Mode	/
ADC (bit)	16
Package (mm)	WLCSP 3.555X1.255-27B

Package | Pins | Size

WLCSP 3.555X1.255-27B

Features

Features Core: ♦ ARM 32-bit STARCU with FPU and DSP ♦ Frequency up to 56MHz ♦ 84 DMIPS, 1.5DMIPS/MHz DSP: ♦ INT32 ALU with divider ♦ Private instruction and independent programing Memories: ♦ 64KByte Flash Memory ♦ 16KByte ROM for boot loader ♦ 16KByte Program SRAM ♦ 16KByte Data SRAM(8KB for DSP) EIS buffer SPI Master/Slaver/Monitor I/F I3C, I2C Master/Slaver I/F ♦ Slaver address: 7’h69(Default) 4x 16bit General Timers 3x 16bit PWM Timers with 2-ch each 32-bit Watch Dog Timer 3x 16-bit AD Converter with 3-ch each 10-bit DA Converter for PGA offset, Output 3-ch BIAS output: ♦ Hall Bias current sink, 3-ch ♦ TMR Bias voltage source, 3-ch 3 Programmable Gain Amplifiers Driver: ♦ Constant Current Linear Driver ♦ Output 3-ch for OIS and AF, 13-bit DAC ♦ Default Imax=±160mA,Imax can support ±200mA. ♦ PWM supported, PWM frequency 10K~1MHz Shutdown mode with consumption less than 12μA WLCSP 3.555mm × 1.255mm × 0.3mm - 27B package

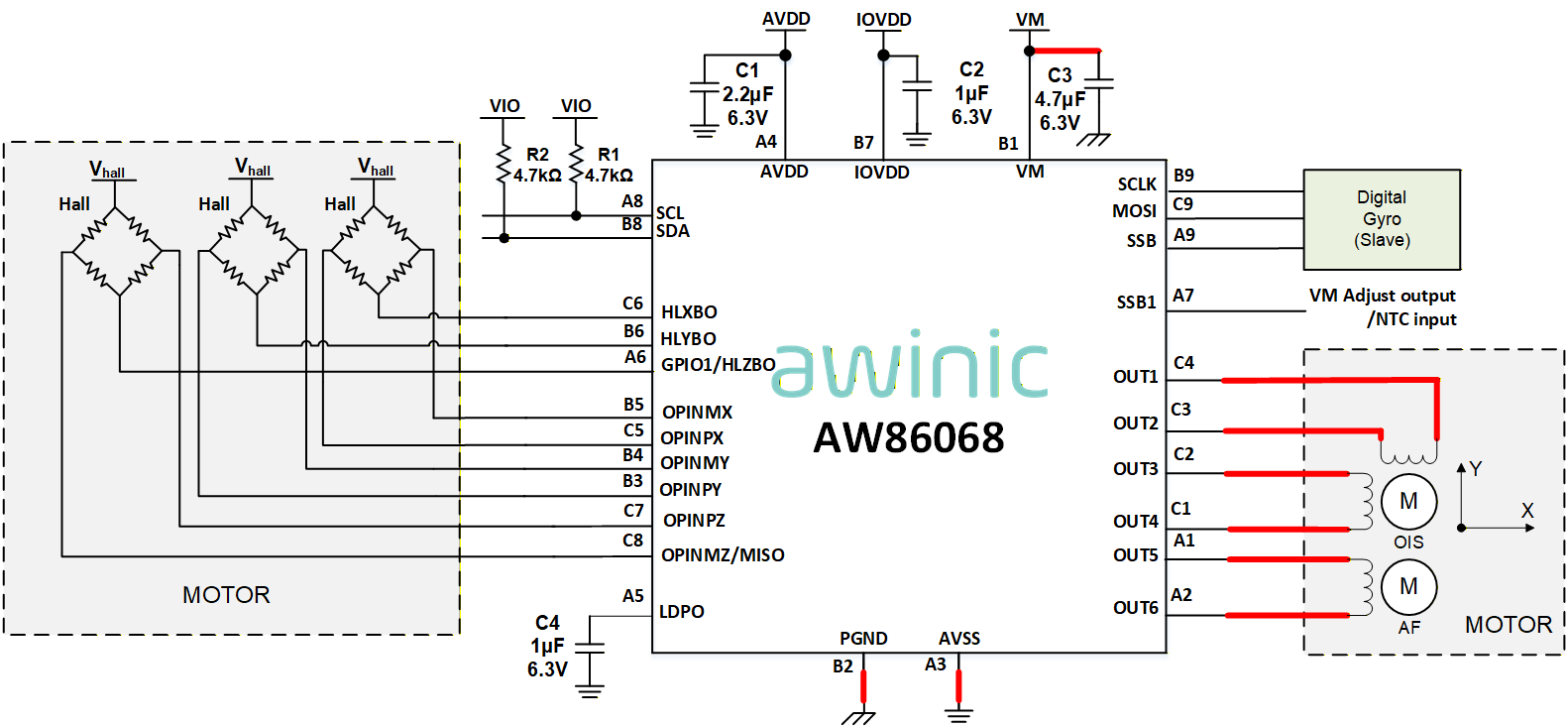

Description

General Description 1.The AW86068 is an optical image stabilization (OIS) controller and driver which also support auto focus driving. It is always used in a camera module of smart mobile phone or other camera equipment. 2.The STARCU is Harvard structure and has own DSP and FPU. The bus for code connects flash, ROM and code SRAM and the bus for data connects data SRAM and APB bridge. With the 56 MHz clock, STARCU can provide 84DMIPS computing power for algorithm. 3.The AW86068 integrates an on-chip 32-bit CPU as the controller, a flash memory for program and user data, 3 channels per ADC, 3 DACs for calibrating Hall sensor offsets, 3 Hall bias circuits, and 3 H-bridge drivers for OIS and AF. 4.The AW86068 DSP has dedicated ALU hardware that integrates instruction flow control, storage access, scalar operations, matrix operations, and digital filters, specifically designed for algorithm acceleration optimization. 5.There is an SPI I/F module that supports on-chip master, slave, and monitor. One I2C module is available, supporting master/slave mode, and one I3C module supports master/slave mode.

Technical documentation

	Type	Title		Language		Date
	Product Design Guide	AW86068 Hardware Design Guide		英文		2025-10-11
	Datasheet	DS_AW86068_EN_V1.4		英文		2026-07-09

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

8606X_EVB_DB_V1.0 — 8606X_EVB_DB_V1.0 is an evaluation board for OIS chips, mainly used for functional assessment of OIS chips such as AW86064CSR、AW86066CSR、AW86068CSR、FU86064、FU86066、FU86068.

Evaluation board for OIS EVB assessment daughter board
