AW86031CSR

OIS Close Loop Driver with Internal Hall Sensor

Datasheet :
Preview - AW86031CSR - Datasheet

Product details

Parameters

Actuator Type AP-OIS
Output I(mA) ±150
VDD (Max) (V) 3.6
VDD (Min) (V) 2.5
I2C (Hz) 400K 1M 3.4M
I2C Addr Configurable
IQ (mA) 6.8
ISD (μA) 7
Temperature -40℃~85℃
Control Mode CL PID
ADC (bit) 16
Package (mm) WLCSP 2.15X0.6-6B

Package | Pins | Size

WLCSP 2.15X0.6-6B(0.335)

Features

 Supply Voltage : 2.5V to 3.6V  2-wire Serial Interface(I2C) ♦ Support Private / Broadcast Communication ♦ Support Frequency Up to 3.4MHz ♦ Support 1.2V / 1.8V I2C Interface ♦ Support Automatic Address Recognition  Built-in Constant Current Driver ♦ ±150mA Current ♦ 12-bit DAC  Built-in Hall Sensor ♦ Si Hall Sensor ♦ 8-level Hall Sensor Signal Amplification ♦ Support Hall Sensor Calibration  Built-in 16bit A/D converter ♦ 14-bit Resolution ♦ Support Temperature and Hall Sampling  Built-in 512 Bytes eFlash for User  Built-in PID Controller ♦ PID Coefficients can be Specified by I2C ♦ Support Multi-scenes Application  Filter Coefficients can be Specified by I2C  Support Linearization Calibration  Support Real-time Detection of Vibration Status  Package ♦ WLCSP 0.600mm x 2.150mm x 0.335mm-6B

Description

AW86031 is an optical image stabilization (OIS) controller and close loop driver chip, which integrated a constant current driver. The default output current is ±150mA. The supply voltage range is from 2.5V to 3.6V. AW86031 is controlled through the I2C serial interface that operates at clock rate up to 3.4MHz. The I2C device address can be configured by eFlash. The default address is 0xD8 (7-bit 0x6C). AW86031 includes internal hall, 512 Bytes eFlash for user, digital PID controller, digital filter, A/D converter, D/A converter, and linearization calibration algorithm . AW86031 can be used for auto focus or optical image stabilization applications in mobile cameras, digital cameras, camcorders, security cameras, web cameras and action cameras.

Technical documentation
Type
Title
Language
Date
Product Design Guide DG_AW86031CSR_Hardware_Design_Guide_EN_V0.9 英文   2023-06-27
Datasheet DS_AW86031_EN_V1.5 英文   2024-10-12
Product Design Guide AW86031硬件设计指南 英文   2024-11-07

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

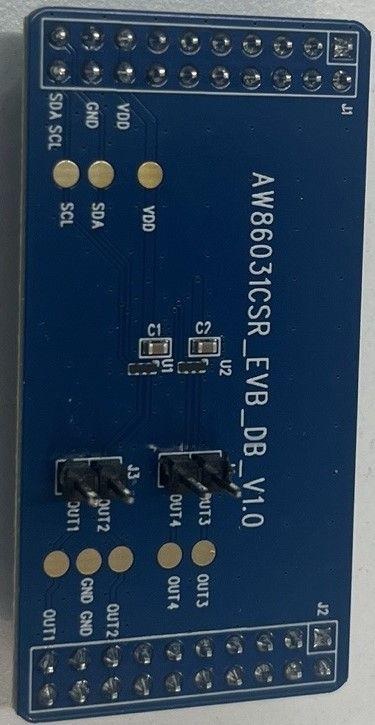

AW86031CSR_EVB_DB_V1.0 — AW86031CSR_EVB_DB_V1.0 is an evaluation board for APOIS chips, mainly used for functional assessment of APOIS chips such as AW86031CSR, AW86033CSR, and AW86033ACSR.

Evaluation board for APOIS EVB assessment small board

View options
Hardware development

Evaluation board

AW86031CSR_EVB_DB_V1.0 — AW86031CSR_EVB_DB_V1.0 is an evaluation board for APOIS chips, mainly used for functional assessment of APOIS chips such as AW86031CSR, AW86033CSR, and AW86033ACSR.

Evaluation board for APOIS EVB assessment small board
