AW86018CSR

11-bit DAC Bi-Directional VCM Auto-Focus Driver

Datasheet :
Preview - AW86018CSR - Datasheet

Product details

Parameters

Actuator Type Bi-OL AF
Output I(mA) ±100mA/±130mA
VDD (Min) (V) 2.3
VDD (Max) (V) 3.6
I2C (Hz) 400K 1M 3.4M
I2C Addr 0x18
IQ (mA) 0.23
ISD (μA) 0.3
DAC (Bit) 11
Temperature -40℃~85℃
Control Mode Open loop
Package (mm) WLCSP 0.99X0.59-6B

Package | Pins | Size

WLCSP 0.99X0.59-6B

Features

Power Supply - 2.3V to 3.6V power supply - Support Power On Reset(POR) - Support Power Down(PD) mode - Support Thermal Shutdown(TSD) Support Automatic Static Address Recognition Up to 2 Chips Built-In Digital-to-Analog Convertor - 11-bit resolution DAC Adjustable Output Current - Default current of ±100mA/±130mA Fast Settling Function - Support VRC(VCM Ringing Control) mode 2-Wire I2C Serial Interface - 1.2V/1.8V interface available - Support I2C Frequency Up to 3.4MHz Dynamic current Compensation Package Dimension - Small 0.4mm pitch WLCSP 0.59mm x 0.99mm x 0.265mm -6B

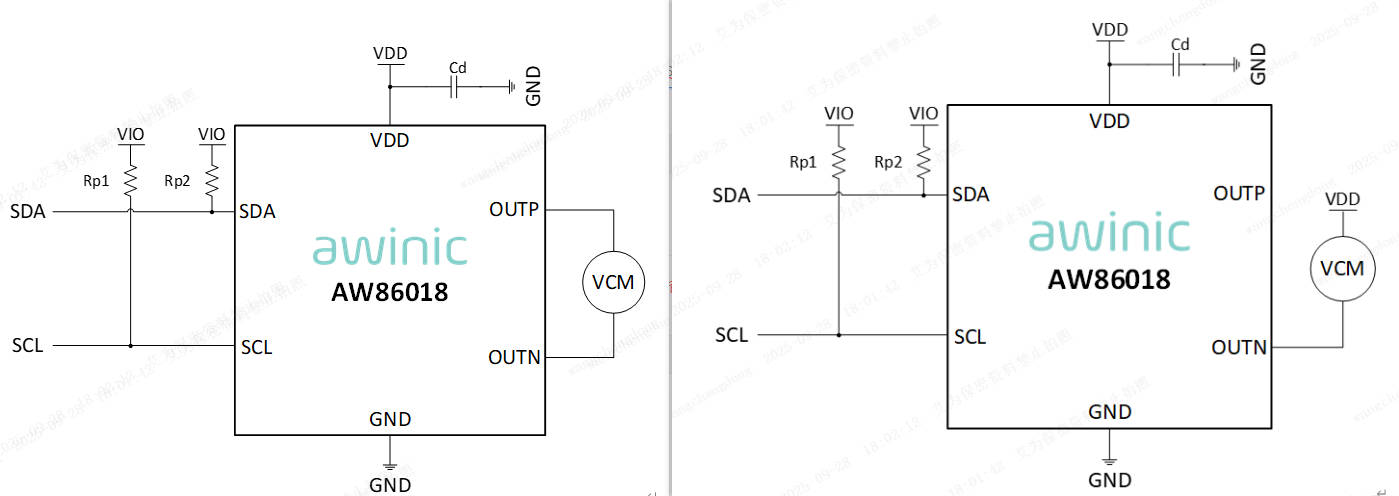

Description

The AW86018 is a bidirectional voice coil motor driver chip, which contains a 11-bit DAC. The operating voltage is from 2.3V to 3.6V. While the maximum output current is totally adjustable by register setting,. The AW86018 is controlled through the I2C serial interface, and its operating frequency can reach up to 3.4MHz. The device address of the chip is default 0x18(7-bit 0x0C). The AW86018 contains Linear Slope Control mode and VCM Ringing Control mode etc., which allow programmable configuration of output current waveform to minimize mechanical vibration for fast settling, and can be suitable for different types of voice coil motors. The AW86018 contains power on reset circuit and power down function. The reset circuit ensures that the digital circuit works well when supply power up. The supply current consumption less than 1μA in Power Down mode. The AW86018 can be used for auto focus applications in mobile cameras, digital still cameras, camcorders and action cameras etc

Technical documentation
Type
Title
Language
Date
Product Design Guide AW86018 Hardware Design Guide 英文   2025-09-25
Datasheet DS_AW86018CSR_EN_V1.1 英文   2026-02-06
Technical articles [Technical Post] Adapt End Side AI! Revealing the secret of the panoramic scheme driven by VCM motor: open loop → closed loop → optical anti-shake 英文   2026-05-19
