AW82194CSR

I2S/TDM Input, High Efficiency, 10.25V BOOST Digital Smart K Audio Amplifier

Datasheet :

Product details

Parameters

Power Supply (Min) (V)	3.0
Power Supply (Max) (V)	5.5
Digital Supply (Min) (V)	1.65
Digital Supply (Max) (V)	1.95
IO Supply (Min) (V)	1.65
IO Supply (Max) (V)	3.6
PVDD Voltage(V)	10.25
Boost Type	Adaptive Boost
PO(W) （8&THD=1%）	5.3W@4.2V
SPK Noise(uV)	22uV
DSP	YES
Protection	MEC+TPC
Control Interface	IIC
RCV mode	YES
RCV Noise(uV)	12uV
Temperature	-40℃~85℃
Package (mm)	WLCSP 2.48X3.17-48B

Package | Pins | Size

WLCSP 2.48X3.17-48B

Features

Integrates SKTune Algorithm
Soundness Enhancement
Audio Path Parametric Equalizer
Multi-Band Dynamic Range Compressor
Programmable Power Control
Anti-Clip Voltage Limiter
Smart BOOST with total efficiency up to 80%
High RF noise suppression, eliminate the TDD noise completely
Low noise: 12uV
THD+N: 0.02%
Supports 6Ω Speaker
Extensive Pop-Click Suppression
Volume control(from -96dB to 0dB)
I2S/TDM interface：
I2S, Left-Justified and Right-Justified
Supports four slots TDM
Input Sample Rates from 8kHz to 96kHz
Data Width: 16, 20, 24, 32 Bits
I2C-bus control interface(400kHz)
Power Supplies：
VDD：3.0V-5.5V
DVDD: 1.65V-1.95V
VDDIO: 1.65V-3.6V
Short-Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection
WLCSP 2.48X3.17-48B package

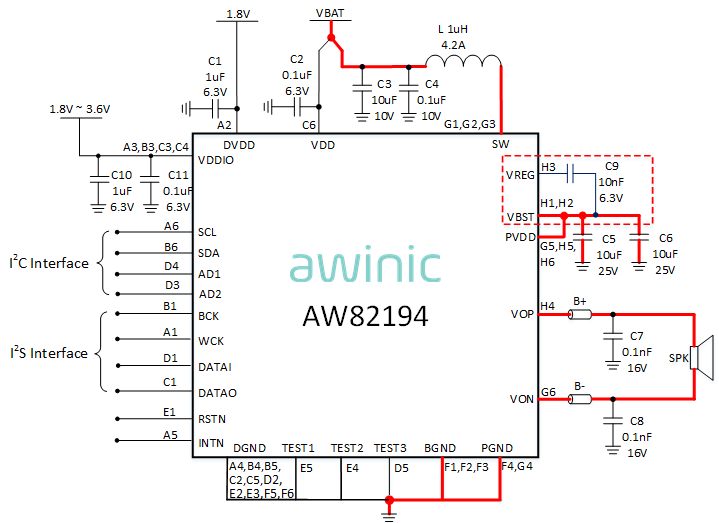

Description

The AW82194 is an I2S/TDM input, high efficiency digital Smart K audio amplifier with an integrated 10.25V smart boost converter and SKTune algorithms. Due to its 12uV noise floor and ultra-low distortion, clean listening is guaranteed. It can deliver 5.3W output power into an 8Ω speaker at 1% THD+N.
The AW82194 integrates SKTune algorithm that maximizes speaker performance while maintaining safe speaker conditions. It also increases loudness and enhances the quality of audio signal.
The AW82194 integrates a high-efficiency smart boost converter as the Class-D amplifier supply rail. The output voltage of boost converter can be adjusted smartly according to the input amplitude, which extremely improves the efficiency without clipping distortion.
The AW82194 features high RF suppression and eliminates TDD noise completely benefited from the digital audio input interface. General settings are communicated via an I2C-bus interface, and the device address is configurable.
The AW82194 offers Short Circuit Protection, Over-Temperature Protection, Under-Voltage Protection and Over-Voltage Protection to protect the device.
AW82194 is available in a WLCSP 2.48X3.17-48B package.

Technical documentation

	Type	Title		Language		Date
	Datasheet	DS_AW82194_EN_V1.0		英文		2023-06-08
