AW37577ECSR

Triple Outputs Switching Converter for AMOLED Display

Datasheet :
Preview - AW37577ECSR - Datasheet
Ref.Price
  • 1-99￥10.44
  • 100-249￥8.56
  • 250-499￥6.89
  • 500-999￥5.43
  • 1000+￥4.18

Product details

Control Interface one-wire
ELVDD (Min) (V) 4.6
ELVDD (Max) (V) 5
ELVSS (Min) (V) -6.6
ELVSS (Max) (V) -1
AVDD (Min) (V) 6.9
AVDD (Max) (V) 7.9
Maximum ELVDD/ELVSS Current (mA) 800
Maximum AVDD Current (mA) 150
Temperature -40℃~85℃
Power Supply (Min) (V) 2.5
Power Supply (Max) (V) 5
IO Level (V) 1.2
Package (mm) WLCSP 2.05X2.05-25B
WLCSP 2.05X2.05-25B
Input voltage: 2.5V ~ 5.0V Excellent line and load transient response Programmable output voltage by ESWIRE from 4.6V to 5V in 100mV steps (Default: 4.6V) Programmable output voltage by ESWIRE from -6.6V to -1V in 100mV steps (Default: -4V) Programmable output voltage by ASWIRE from 6.9V to 7.9V in 50mV & 7.1V to 7.8V in 100mV steps (Default: 7.6V) Max Output current for ELVDD and ELVSS 600mA @ VIN=2.5V, ELVDD=4.6V, ELVSS= -4V 750mA @ VIN=3.2V, ELVDD=4.6V, ELVSS= -6V 800mA @ VIN=3.2V, ELVDD=4.6V, ELVSS= -5V 800mA @ VIN=3.4V, ELVDD=4.6V, ELVSS= -6V 850mA @ VIN=3.0V, ELVDD=4.6V, ELVSS= -4V 150mA Max Output current for AVDD Short Circuit Protection (SCP) WLCSP 2.05mmX2.05mmX0.602mm-25B
The AW37577E is specially designed for AMOLED (Active Matrix organic LED) Display panels. It integrates two high performance boost converters, VO1 (positive voltage ELVDD) and VO3 (AVDD), one inverting buck-boost converter for VO2 (negative voltage ELVSS). These converters have excellent line and load transient response. The VO3 can be programmed by ASWIRE, the VO1 and VO2 can be programmed by ESWIRE. All these interfaces can turn on/off corresponding converters.

Technical documentation
Type
Title
Date
Datasheet DS_AW37577E_EN_V1.6   2025-04-27

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

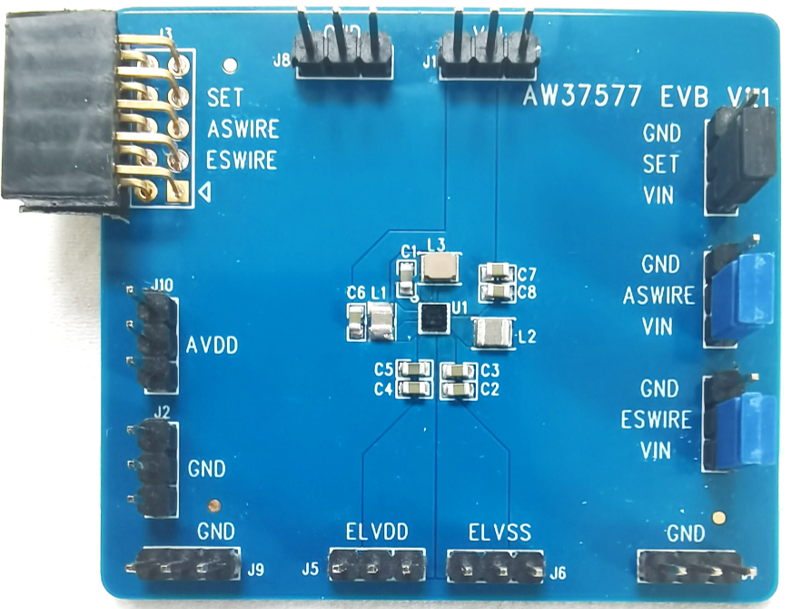

AW37577 EVB V1.1 — Evaluation board for AW37577

AW37577 EVB V1.1 with USB TO IIC BOARD V1.4 for the output voltage adjustment via s-wire

View options

Evaluation board

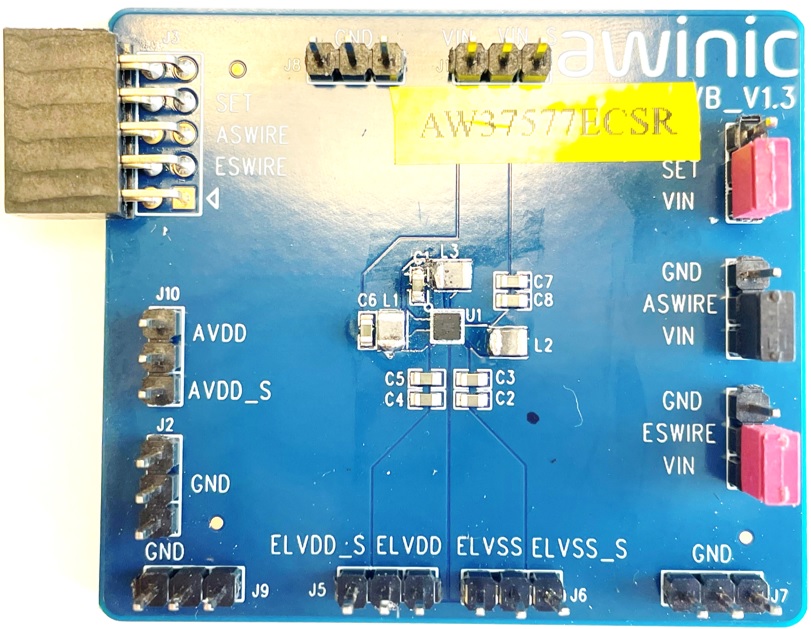

AW37577_EVB_V1.3 — AW37577_EVB_V1.3 with USB TO IIC BOARD V1.4 for the output voltage adjustment via s-wire

Evaluation board for AW37577

View options
Software development

APPLICATION SOFTWARE&FRAMEWORK

AW37577_GUI — AW37577 Tunning Tool

AW37577 GUI is a highly integrated and easy-to-use tool for product configuration and debugging. Intuitive interface and user-friendly operation can help customers shorten development cycle and complete system integration quickly.

View options
