| Power Supply (Min) (V) |
2.5 |
| Power Supply (Max) (V) |
5.5 |
| IQ (μA) |
35 |
| Load Current (Max) (A) |
2 |
| Vout (Min) (V) |
0.6 |
| Vout (Max) (V) |
5.5 |
| Control Interface |
GPIO |
| EMI Optimization |
NO |
| Temperature |
-40℃~85℃ |
| Special Function |
PWM Mode
Power Good
PSM Mode |
| Package (mm) |
SOT23-5L |
Up to 95% Efficiency
2.5V to 5.5V Input Voltage Range
Adjustable Output Voltage from 0.6 V to VIN
Low RDS(ON) Switches 110 mΩ / 75 mΩ
1.5MHz Typical Switching Frequency
2A Maximum Output Current
Low Dropout With 100% Duty Cycle
Power Save Mode for Light Load Efficiency
35μA Operating Quiescent Current
Power Good Output
Over Current Protection
Over Temperature Protection
Internal Soft Startup
Available ｉｎ DFN 2X2-8L, SOT23-5L ａｎｄ SOT23-6L Package

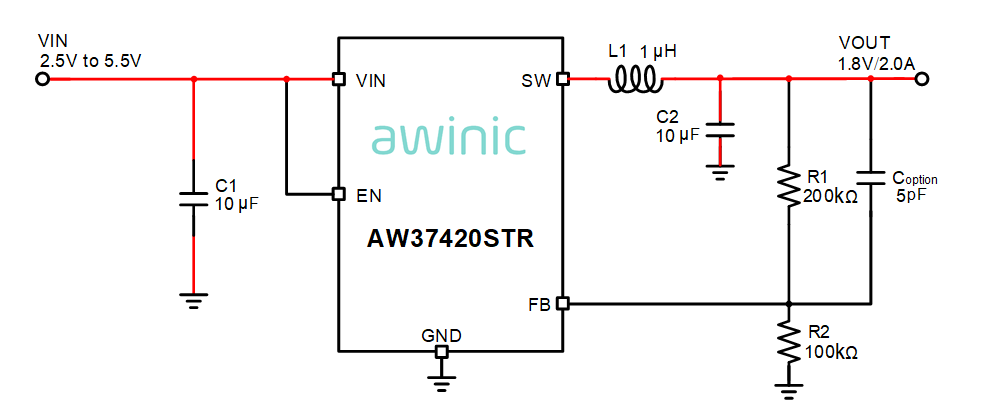

The AW37420 is a synchronous step-down buck DC-DC converter with high efficiency ａｎｄ low power consumption. The device integrates switches capable of delivering an output current up to 2 A.
The device operates at typically 1.5 MHz frequency pulse width modulation (PWM) at moderate to heavy load currents. At light load, the device automatically converts to Power Save Mode (PSM) to maintain high efficiency over the entire load current range. Ｉｎ shutdown, the current consumption less than 2 μA.
The AW37420 provides an adjustable output voltage via an external resistor divider. It has internal soft start circuit to limit the inrush current during startup. Other features ｌｉｋｅ over current protection, over temperature protection ａｎｄ power good are built-ｉｎ. The device is available ｉｎ DFN 2X2-8L, SOT23-5L ａｎｄ SOT23-6L package.
