AW37283B330SPR-Q1

40V, 300mA, Low-IQ, Adjustable Output Linear Regulator

Datasheet :

Preview - AW37283B330SPR-Q1 - Datasheet

Ref.Price

1-99￥6.89
100-249￥5.65
250-499￥4.55
500-999￥3.58
1000+￥2.76

Product details

Load Current (Max) (mA)	300
Power Supply (Min) (V)	3.5
Power Supply (Max) (V)	40
Vout (Min)(V)	1.25
Vout (Max)(V)	15
Iq (Typ) (μA)	13
Accuracy<br>(%)	±2
Vdropout (mV)	275(VOUT=3.3V) 260(VOUT=5V)
PSRR@1KHz(dB)	55@IOUT=10mA
Output Noise (μVrms)	-
Discharge	NO
Output options	Fixed ADJ
IO Level (V)	1.8
Temperature	-40℃~125℃
Package (mm)	ESOP-8L

ESOP-8L

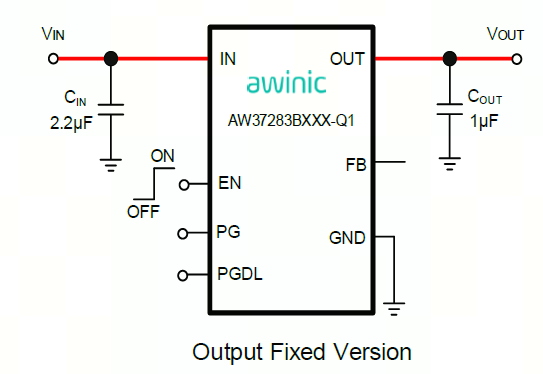

 Input Voltage Range: 3.5V to 40V  Quiescent Current: 13μA  Stable with Low-value Output Ceramic Capacitor (≥ 1μF)  Rated Output Current: 300mA  Fixed Output: 3.3V and 5V  Adjustable Output: 1.25V to 15V  Output ±2% Accuracy Over Temperature  Specified Current Limit  Power Good  Programmable Power Good Delay  Thermal Shutdown and Fold-back Short-Circuit Protection  -40°C to +150°C Specified Junction Temperature Range  Available in ESOP-8L Package  Available in AEC-Q100 Grade 1

The AW37283BXXX-Q1 is a low-power linear regulator that supplies power to systems with high-voltage batteries. It includes a wide 3.5V to 40V input range, low-dropout voltage and low-quiescent supply current. The low-quiescent current and low-dropout voltage allow operations at extremely low-power levels. Therefore, the AW37283BXXX-Q1 is ideal for low-power microcontrollers and battery-powered equipment. The AW37283BXXX-Q1 provides a wide variety of fixed output-voltage options (if requested): 3.3V, 5.0V; Also it provides the output-adjustable option (from 1.25V to 15V). The regulator output current is limited internally, and the device is protected against short-circuit, over-load, and over-temperature conditions. The AW37283BXXX-Q1 includes thermal shutdown (TSD), current-limiting fault protection, and is available in ESOP-8L package.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AW37283BXXX-Q1_EN_V1.3			2025-10-16
	New product launch	【New Product Launch】First Release of Automotive-Grade High-Voltage LDO Chip AW37283BXXX-Q1			2025-08-21

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

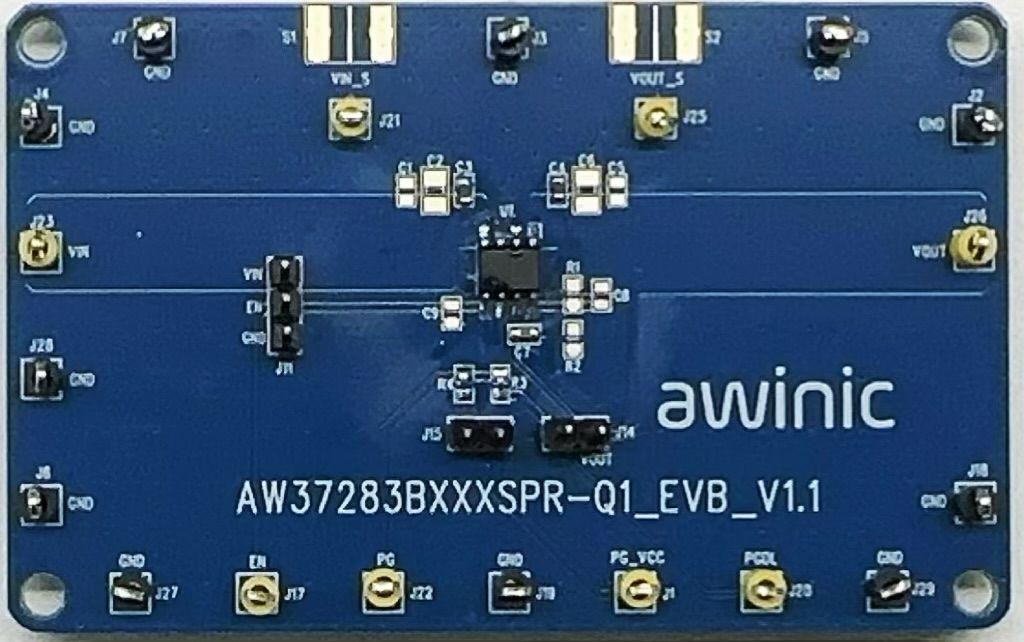

AW37283BXXXSPR-Q1_EVB_V1.1 — AW37283BXXXSPR-Q1 EVB is a low noise,high-voltage LDO test board，the main test points of the chip are drawn separately on the EVB board for convenient testing

EVB evaluation board for LDO AW37283BXXXSPR-Q1

View options

Hardware development

Evaluation board

AW37283BXXXSPR-Q1_EVB_V1.1 — AW37283BXXXSPR-Q1 EVB is a low noise,high-voltage LDO test board，the main test points of the chip are drawn separately on the EVB board for convenient testing

EVB evaluation board for LDO AW37283BXXXSPR-Q1
