AW37030D310DNR

300 mA High Performance Low-Dropout Linear Regulator

Datasheet :

Product details

Load Current (Max) (mA)	300
Power Supply (Min) (V)	1.4
Power Supply (Max) (V)	5.5
Vout (Min) (V)	1.1
Vout (Max) (V)	3.3
Iq (Typ) (μA)	50
Vdropout (mV)	680@300mA,Vout=1.1V 576@300mA,Vout=1.2V 310@300mA,Vout=1.8V 203@300mA,Vout=2.5V 184@300mA,Vout=2.8V 175@300mA,Vout=3.0V 158@300mA,Vout=3.3V
PSRR @1KHz(dB)	90@30mA,Vout=1.8V
Output Noise (μVrms)	21@30mA,Vout=1.1V 33@30mA,Vout=1.8V 46@30mA,Vout=3.3V
Discharge	YES
Output options	Fixed
Temperature	-40℃~85℃
IO Level (V)	1.8
Package (mm)	DFN 1X1-4L

WBDFN 1X1-4L(0.37)

Input voltage range: 1.4V to 5.5V Fixed outputs of 1.1V, 1.2V, 1.5V, 1.55V,1.8V,2.5V, 2.8V, 2.85V, 2.9V, 2.95V, 3.0V, 3.1V, 3.3V Rated output current: 300mA Quiescent current: typical 50uA Typical 0.1uA shutdown current Typical 310mV dropout voltage(IOUT=300mA, 1.8V output) Power supply rejection ratio: typical 90dB(IOUT=30mA, freq=1kHz, 1.8V output) Noise: typical 33uVrms (IOUT=30mA, BW=10Hz to 100kHz, 1.8V output) Built-ｉｎ output short protection: typical 120mA when output short to ground DFN 1mmX1mmX0.37mm-4L package ａｎｄ SOT23-5L package

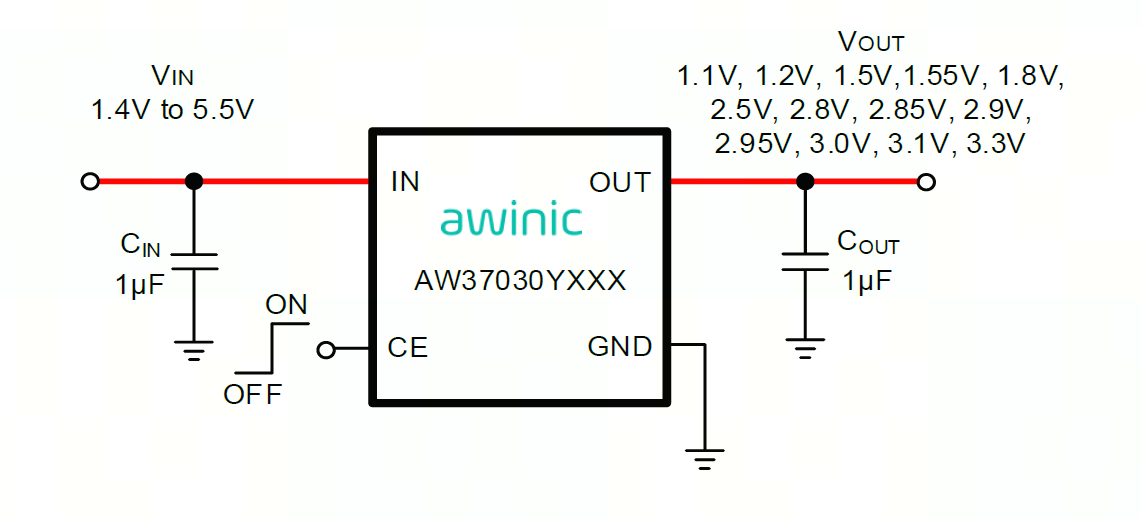

AW37030YXXX is a low dropout voltage regulator featuring low ON resistance, high PSRR, low Noise, good load/line transient response ａｎｄ smooth softstart. AW37030YXXX integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged. AW37030YXXX is designed to work with a 1uF ｏｒ more input ceramic capacitor ａｎｄ a 1uF ｏｒ more output ceramic capacitor. The low power dissipation ａｎｄ good dynamic response make AW37030YXXX very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.

Technical documentation

	Type	Title			Date
	Datasheet	DS_AW37030YXXX_EN_V2.1			2024-08-09

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW3705DXXXDNR EVB V2.0 — AW37003YXXXDNR EVB is a high PSRR, low dropout LDO test board，the main test points of the chip are drawn separately on the EVB board for convenient testing

EVB evaluation board for high-performance LDO AW37030YXXXDNR
