AW37012DADJFOR

1.5A Ultra Low Dropout Linear Regulator with Bias

Datasheet :

Product details

Parameters

Load Current (Max) (mA)	1500
Power Supply (Min) (V)	0.5
Power Supply (Max) (V)	5.5
Vout (Min) (V)	0.5
Vout (Max) (V)	3.5
Iq (Typ) (μA)	32
Vdropout (mV)	85
PSRR @1KHz(dB)	70
Output Noise (μVrms)	72
Discharge	YES
Output options	ADJ
Temperature	-40℃~85℃
IO Level (V)	1.2
Package (mm)	FOWLP 1.200X0.800-6B

Package | Pins | Size

FOWLP 1.200X0.800-6B

Features

● Input voltage range: 0.5 to 5.5V ● Bias voltage range: 2.5V to 5.5V ● Adjustable and Fixed Voltage Version Available(0.5V to 3.5V) ● Output Voltage Accuracy: ±0.5% @ 25°C, ±1% @ Full Temperature ● Very Low Bias Input Current: typical 32μA ● Very Low Bias Input Current in Shutdown: <1μA ● Low dropout voltage: typical 85mV@1.5A(1.2V output) ● High PSRR: typical 70dB @ 1kHz(IOUT=150mA, 1.2V output) ● Noise: typical 72μVrms (IOUT=30mA, BW=10Hz to 100kHz, 1.2V output) ● 1.2V Logic Level Enable Input for ON/OFF Control ● Built-in Output Short Protection: Typical 0.8A ● Fast Load Transient Response ● Thermal Shutdown Protection ● FOWLP 1.200mm×0.800mm×0.300mm-6B package

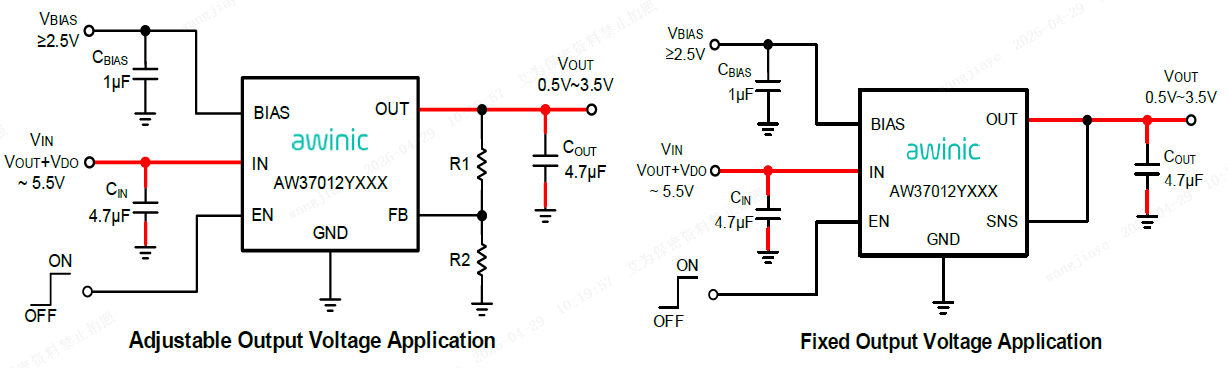

Description

AW37012YXXX is a high accuracy voltage regulator, which provides 1.5A of current. It is equipped with NMOS pass transistor and a separate bias supply voltage(VBIAS). The feature of ultra low dropout voltage is ideal for applications where output voltage is very close to input voltage. AW37012YXXX also features low IQ consumption, high PSRR, low Noise, good load transient response and smooth soft-start. AW37012YXXX integrates current limit, short circuit protection, thermal shutdown, sufficiently protecting IC from being damaged. AW37012YXXX is designed to work with a 4.7μF or more input ceramic capacitor, a 1μF or more input ceramic capacitor and a 4.7μF or more output ceramic capacitor. The low power dissipation and good dynamic response make AW37012YXXX very suitable for hand-held communication equipment. Tiny package makes high density mounting of the IC on boards possible.

Technical documentation

	Type	Title		Language		Date
	Datasheet	DS_AW37012YXXX_EN_V1.1		英文		2026-05-06
	New product launch	【New Product Launch】Focus on Ultra-Low Dropout: Awinic AW37012DXXXFOR Series LDO Debuts!		英文		2025-08-05

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

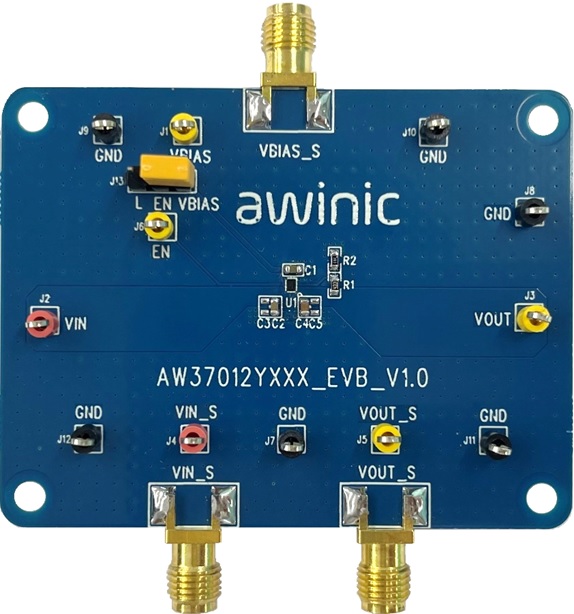

AW37012YXXX_EVB_V1.0 — AW37012YXXX EVB is a high accuracy, low dropout LDO test board，the main test points of the chip are drawn separately on the EVB board for convenient testing
