AW36612DNR

1.2A Synchronous Buck LED Driver

Datasheet :
Preview - AW36612DNR - Datasheet
Ref.Price
  • 1-99￥2.64
  • 100-249￥2.16
  • 250-499￥1.74
  • 500-999￥1.37
  • 1000+￥1.05

Product details

Channel 1
Power Supply (Min) (V) 2.7
Power Supply (Max) (V) 5.5
Control Interface PWM
Current (Max) (A) 1.2
Flash Current Accuracy (%) 5
VFB (V) 0.2
FSW(MHZ) 1.5
Temperature -40℃~85℃
IO Level (V) 1.8
Package (mm) DFN 2X2-6L
DFN 2X2-6L
2.7V~5.5V Input Voltage
0.2V Reference Voltage
1.2A Peak Output Current
Low Dropout Operating at 100%Duty Cycle
Over-Temperature Protection
Over-Current Protection
Fixed 1.5MHz Switching Frequency
<1μA Input Current During Shutdown
DFN 2mm×2mm×0.75mm -6L Package
The AW36612 is a LED driver that designs with current mode. The AW36612 utilizes a 1.5MHz frequency synchronous buck converter to provide power to the 1.2A peak constant current LED sources. The device also provides hardware RUN pin to realize ON/OFF dimming function. Input voltage from 2.7V to 5.5V makes the AW36612 ideally suited for single Li-Lon battery powered applications.

The device operates over a -40°C to +85°C ambient temperature range. The fault protection includes OCP function which ensure the peak of inductor current is less than 1.7A.The use of synchronous switches instead of external Schottky diode improves the efficiency.

The AW36612 is available in DFN 2mm×2mm×0.75mm -6L package.

Technical documentation
Type
Title
Date
Datasheet DS_AW36612_EN_V1.3   2023-11-29
Reliability Report Reliability Qualification Report For AW36612DNR   2026-05-19

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

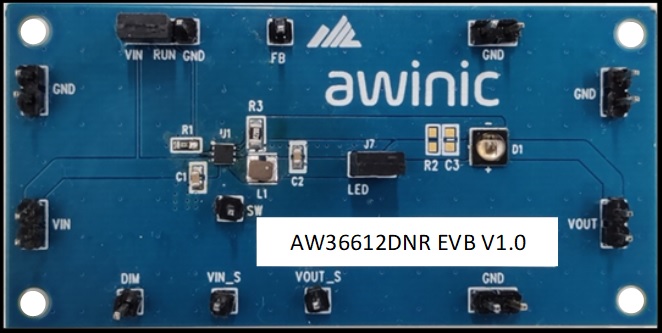

AW36612DNR Demo V1.0 — AW36612DNR Demo V1.0 is the evaluation board for IR LED driver.
