AW36406DNR

600mA PWM Configurable Front Flash LED Driver

Datasheet :
Preview - AW36406DNR - Datasheet
Ref.Price
  • 1-99￥1.58
  • 100-249￥1.30
  • 250-499￥1.04
  • 500-999￥0.82
  • 1000+￥0.63

Product details

Channel 1
Control Interface one-wire
Current (Max) (A) 0.6
Torch Current (Max) (A) 0.6
Flash Current Accuracy (%) 8
Flash Timer (Min) (s) 1.2
Flash Timer (Max) (s) 1.2
IO Level (V) 1.8
Temperature -40℃~85℃
Indicator mode NO
Package (mm) DFN 1.5X1.5-8L
DFN 1.5X1.5-8L
•Front Flash LED Driving
•600mA Maximum Flash/Torch Mode Current
•Flash/Torch Mode LED Current Can be Programmed via PWM Signal at EN Pin
•Flash Timeout Protection: 1.2s
•LED Current Accuracy: ±8%
•Low Dropout Voltage: 140mV@600mA
•LED Short Protection
•Under Voltage Lock Out (UVLO)
•Over Thermal Protection(OTP)
•DFN 1.5×1.5×0.55(mm) -8L Package
•Compatible with AW36404
The AW36406 is a low voltage-drop current sink LED driver, which supports both flash and torch modes. The current-regulation sink integrated in the chip makes the LED current be capable of keeping constant when input voltage, LED forward voltage in temperature are changing. The LED current can be adjusted by PWM signal at the EN pin, and the maximum value is 600mA.
For AW36406, only one multi-layer ceramic capacitor is needed for the peripheral of the solution.
In shut down mode, the AW36406 turns off all internal circuit and the consumption is less than 1μA.
The device requires 2.7V~5.5V input voltage range and an operating temperature range of -40℃~ 85℃.

Technical documentation
Type
Title
Date
Datasheet DS_AW36406_EN_V1.4   2023-06-13

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

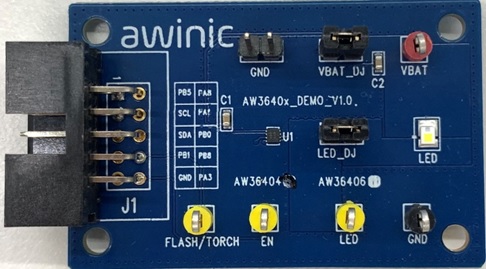

AW3640X_DEMO_V1.0 — AW3640X_DEMO-V1.0 is a flash demonstration motherboard that supports both AW36404 and AW36406 products.

AW3640X Flash LED Driver Evaluation Board

View options
Hardware development

Evaluation board

AW3640X_DEMO_V1.0 — AW3640X_DEMO-V1.0 is a flash demonstration motherboard that supports both AW36404 and AW36406 products.

AW3640X Flash LED Driver Evaluation Board
