AW35616QNR

USB Type-C Configuration Channel Logic and Port Control

Datasheet :
Preview - AW35616QNR - Datasheet
Ref.Price
  • 1-99￥4.06
  • 100-249￥3.33
  • 250-499￥2.68
  • 500-999￥2.11
  • 1000+￥1.62

Product details

DC_CC(V) 28
DC_VBUS(V) 28
Power Role DRP
Temperature -40℃~85℃
IO Level (V) /
Package (mm) QFN 1.6X1.6-12L
WBQFN 1.6X1.6-12L(0.55)
●USB Type-C Cable and Connector Specification Release 1.2 compatible ●Enable control: Active Low (ENB Pin) ●PIN or I2C control ●Mode configuration ●Host Only – SRC (DFP) ●Device Only – SNK (UFP) ●Dual Role Port – DRP ●The DRP mode supports Try.SNK or Try.SRC ●Support different current model controls and identifications (USB Default, 1.5A and 3.0A) ●Configuration Channel (CC) ●Attachment of USB Port Detection ●Cable Orientation Detection ●Role Detection ●Dead Battery Support (SNK mode support when no power applied) ●Accurate internal CC termination resistance and current source with high precision ●Low current consumption ●DC 28V tolerance on VBUS, CC1 and CC2, ●Power supply range: 2.7V~5.5V ●QFN 1.6mm × 1.6mm-12L package
The AW35616 is a Type-C Configuration Channel (CC) Flippable Adapter chip with low power and high efficiency. The AW35616 supports channel identification of USB Type-C and auto detection of different power roles based on chip settings. This chip is compatible with USB Type-C Cable and Connector Specification Release 1.2 for varies of applications. The AW35616 supports PIN mode and I2C mode through CTRL pin settings. SDA (INOUT1), SCL (INOUT2), INTB (OUT3) and ID pins are used to distinguish necessary functions in different control modes. The ROLE pin controls the Source (SRC) / Sink (SNK) / Dual Role Power (DRP) mode in PIN mode. The global enable signal comes from ENB pin with internal pull-up resistor for more feasibility. The AW35616 can determine a connection or disconnection in different power modes. The CC logic block monitors the CC1 and CC2 pins voltage to determine whether a USB port has been attached. The CC logic detects the Type-C current mode (USB Default, 1.5 A or 3.0 A) in SNK mode. VBUS detection is implemented to determine a successful attachment in SNK and DRP modes. The AW35616 operates over a wide supply range with low power consumption. The device is available in QFN 1.6mm × 1.6mm-12L package.

Technical documentation
Type
Title
Date
Product Design Guide AW35616 Hardware Design Guide   2023-11-22
Datasheet DS_AW35616QNR_EN V1.3   2024-06-27

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

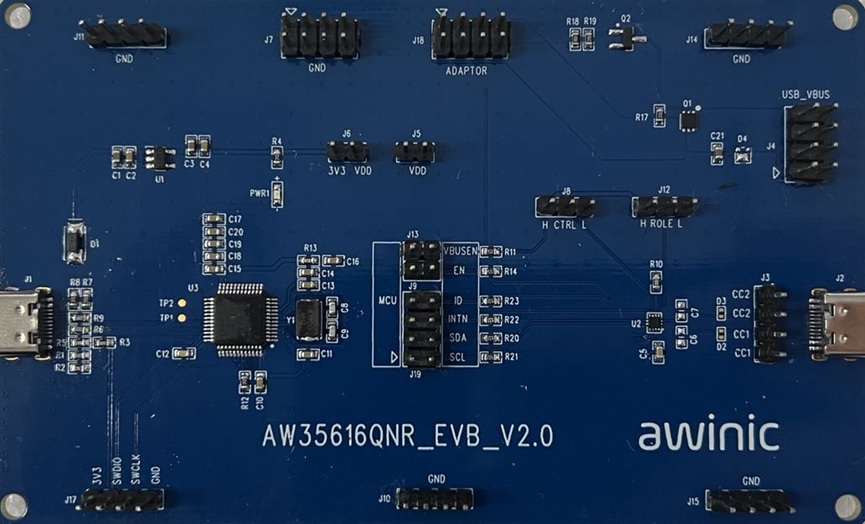

AW35616QNR_EVB_V2.0 — AW35616QNR_EVB is an evaluation board for awinic USB Type-C CC logic and port control IC AW35616QNR.

AW35616QNR_EVB is an evaluation board for awinic USB Type-C CC logic and port control IC AW35616QNR. Cooperating with the supporting software, the progress of Type-C connection can be demonstrated.

View options
Software development

DRIVER OR LIBRARY

AW35616_Driver_Qcom_v0.1.0.zip —

View options

DRIVER OR LIBRARY

AW35616_Driver_RK_v0.1.0.zip —

View options

DRIVER OR LIBRARY

AW35616_Driver_MCU_v0.3.0.zip —

View options

APPLICATION SOFTWARE&FRAMEWORK

AW35616_GUI — Debugging tool for AW35616 product

The debugging tool of AW35616 product is used for product configuration debugging. The interface is intuitive and easy to operate, helping users quickly complete product Functional verification

View options

DRIVER OR LIBRARY

AW35616_Driver_MTK_v1.0.0 — AW35616 series mtk platform Android driver

AW35616 series mtk platform Android driver, including sample code，migration documentation，and dtsi

View options
Hardware development

Evaluation board

AW35616QNR_EVB_V2.0 — AW35616QNR_EVB is an evaluation board for awinic USB Type-C CC logic and port control IC AW35616QNR.

AW35616QNR_EVB is an evaluation board for awinic USB Type-C CC logic and port control IC AW35616QNR. Cooperating with the supporting software, the progress of Type-C connection can be demonstrated.

View options
