AW35615QNR

AW35615 Programmable USB Type-C PD Controller

Datasheet :
Preview - AW35615QNR - Datasheet
Ref.Price
  • 1-99￥5.68
  • 100-249￥4.66
  • 250-499￥3.75
  • 500-999￥2.95
  • 1000+￥2.27

Product details

DC_CC(V) 24
PD Specification 3.0
DC_VBUS(V) 28
Power Role DRP SRC SNK
IO Level (V) 1.8 3.3
Package (mm) QFN 2.5X2.5-14L
WBQFN 2.5X2.5-14L(0.75)
⚫ Dual-role functionality with autonomous DRP toggle ⚫ Attach/Detach detection as either a host or a device based on what has been attached ⚫ Operate as dedicated host, dedicated device or DRP by host software configuration ⚫ Support USB PD 3.0 except Fast Role Swap function ⚫ USB PD 3.0 certified (TID #8339) ⚫ Integrate the several functionality of the CC Pins according to Type-C 1.2 ⚫ Integrate VCONN switch with configurable OCP and OTP ⚫ VBUS detection and discharge control ⚫ Dead Battery Support (SNK mode support when no power applied) ⚫ Higher withstand voltage value of CC pins: 24V ⚫ Support wake detection avoids CC voltage toggle to prevent electric corrosion ⚫ BIST mode supported ⚫ WBQFN 2.5 mm × 2.5 mm-14L package
The AW35615 is a programmable DRP/SRC/SNK USB Type-C controller that compiles with USB PD3.0 and Type-C 1.2 specifications, and it integrates a complete Type-C transceiver including the pull-up and pull-down resistors. The AW35615 enables the USB Type-C detection including attach and orientation by autonomous DRP toggle. The CC logic block monitors the CC1/CC2 pin for pull-up or pull-down resistances to determine when a USB port has been attached, the orientation of the cable and the role detected. Furthermore, AW35615 supports wake detection without CC voltage toggle, which brings lower power and avoids electric corrosion due to voltage toggle. The AW35615 integrates the physical layer of the USB BMC Power Delivery protocol to allow up to 100W of power and role swap. The BMC PD block enables full support for alternative interfaces of the Type-C specification. The AW35615 supports VBUS voltage detection and discharge control by the discharge resistance integrated in VBUS channel. The withstand voltage value of CC pins is up to 24V.

Technical documentation
Type
Title
Date
Product User Guide AW35615 EVB User's Guide   2023-11-01
Datasheet DS_AW35615QNR_EN_V1.3   2024-07-24

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

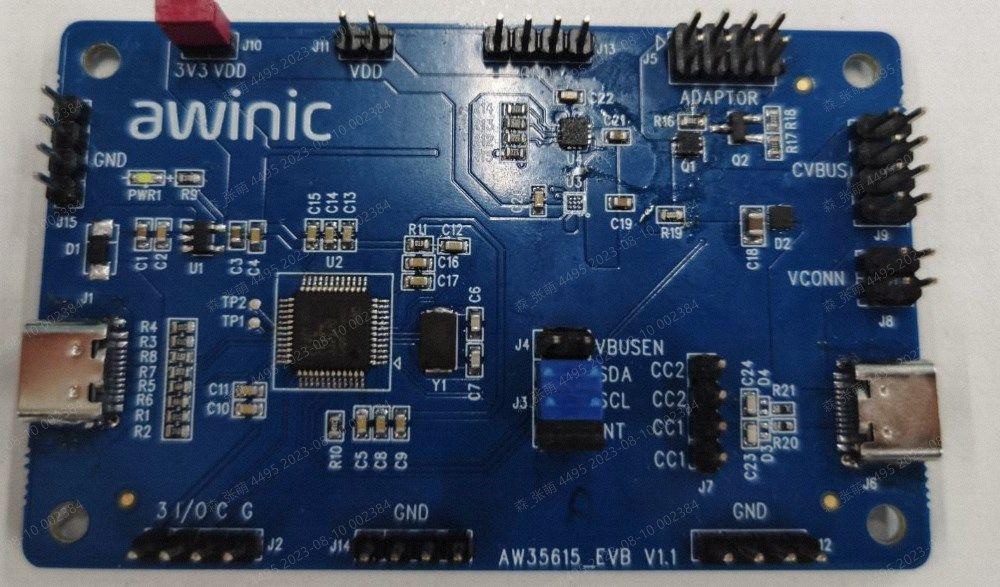

AW35615_EVB_V1.1 — AW35615_EVB_V1.1 is an evaluation board for awinic USB Type-C PD controller AW35615.

AW35615_EVB_V1.1 is an evaluation board for awinic USB Type-C PD controller AW35615. Cooperating with the supporting software, the negotiation progress of PD can be demonstrated.

View options
Software development

APPLICATION SOFTWARE&FRAMEWORK

AW35615_GUI — AW35615 Tunning Tool

AW35615 GUI is a highly integrated and easy-to-use tool for product configuration and debugging. Intuitive interface and user-friendly operation can help customers shorten development cycle and complete system integration quickly.

View options

DRIVER OR LIBRARY

AW35615_Driver_Qcom_v1.6.0.zip — AW35615 series qcom platform Android driver

AW35615 series qcom platform driver, including sample code，migration documentation

View options

DRIVER OR LIBRARY

AW35615_Driver_RK_v1.1.0.zip — AW35615 series RK platform Android driver

AW35615 series rk platform driver, including sample code，migration documentation

View options

DRIVER OR LIBRARY

AW35615_Driver — AW35615 series sprd platform Android driver

AW35615 series sprd platform driver, including sample code，migration documentation

View options

DRIVER OR LIBRARY

AW35615_Driver_MCU_v1.2.0.zip — AW35615 series mcu platform driver

AW35615 series mcu platform driver, including sample code，migration documentation

View options

DRIVER OR LIBRARY

AW35615_Driver_MTK_Android_V1.7.4.zip — AW35615 series mtk platform Android driver

AW35615 series mtk platform driver, including sample code，migration documentation

View options

DRIVER OR LIBRARY

AW35615_Driver_MCU_Android_V1.3.1.zip — AW35615 series mcu platform driver

AW35615 series mcu platform driver, including sample code，migration documentation

View options
Hardware development

Evaluation board

AW35615_EVB_V1.1 — AW35615_EVB_V1.1 is an evaluation board for awinic USB Type-C PD controller AW35615.

AW35615_EVB_V1.1 is an evaluation board for awinic USB Type-C PD controller AW35615. Cooperating with the supporting software, the negotiation progress of PD can be demonstrated.

View options
