AW35331FDR

±20V 超出电源电压低导通电阻单刀单掷断电保护开关，兼容 1.2V 逻辑

Datasheet :

Product details

Parameters

Channel	1
Type	1:1
Power Supply (Min) (V)	2.3
Power Supply (Max) (V)	5.5
Iq (μA)	615
Ron (Typ) (Ohms)	0.09
-3dB Bandwidth (MHz)	200
VINH (Min) (V)	0.78
VINL (Max) (V)	0.42
tON (ns)	35000
Temperature	-40℃~125℃
tOFF (ns)	15000
Package	FCDFN 1.5X1.2-6L

Package | Pins | Size

FCDFN 1.5X1.2-6L

Features

 信号范围：-20V 至 20V  电源电压：2.3V 至 5.5V  超低导通电阻：90mΩ（典型值）  支持高连续电流：>1.5A  兼容 1.2V 逻辑  总谐波失真加噪声 (THD+N)：-100dB  断电保护  工作温度范围：-40°C 至 +125°C  FCDFN 1.5mm x 1.2mm-6L 封装

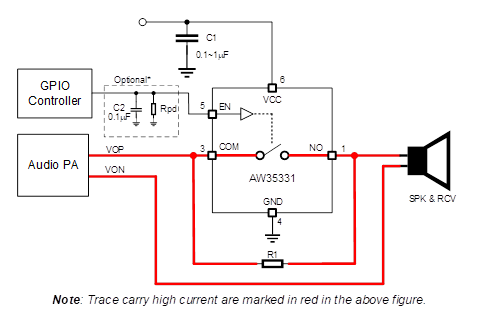

Description

The AW35331 is a high voltage, wide range positive and negative signal passing, 1:1, single-pole, single-throw (SPST) switch. The device works with a single supply from 2.3V to 5.5V, but can pass bidirectional analog and digital signals beyond the supply from -20V to 20V. The AW35331 also features bidirectional powered off protection up to ±20V, which isolates the switch even when there is no supply voltage present (VCC = 0V). Without this protection feature, any voltage on the switch can back-power the supply rail through an internal ESD diode and cause potential damage to the rest of the system. With excellent THD+N and RON-flatness, the AW35331 is a good choice for passing precision analog and audio signals without adding distortion. The AW35331 is available in Green FCDFN 1.5mmX1.2mm-6L package. It operates over an operating temperature range of -40°C to +125°C.

Technical documentation

Type	Title	Language	Date
Datasheet	DS_AW35331_EN_V1.2	英文	2026-08-12
Reliability Report	Reliability Qualification Report For AW35331FDR	英文	2026-05-19
Technical articles	【Technical Post】 Say Goodbye to 'Building Blocks', Skillfully Use awinic SPST Analog Switches to Simplify the 'Speaker + Receiver' Dual-Function Design in Audio Amplifiers	英文	2026-08-11
New product launch	[New Product Launch] Tackling Audio Switching Pain Points \| Awinic's High-Fidelity Audio Switch AW35331FDR Makes Its Debut	英文	2026-04-01
