| Controlled Slew Rate |
NO |
| Enable Logic |
Active Low |
| Output Discharge |
NO |
| Programmable Current Limit |
YES |
| Current Limit （Min）(A) |
0.1 |
| Current Limit （Max）(A) |
1.5 |
| Reverse Current Blocking |
NO |
| Fault Flag |
YES |
| Power Supply (Min) (V) |
3 |
| Power Supply (Max) (V) |
6.8 |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.8 |
| Package (mm) |
DFN 2X2-8L |
Wide input voltage range from 3V to 6.8V
Maximum input voltage is 32V
Integrated low Rdson switch: 105mΩ
Programmable current limit from 100mA to 1.5A
1.5A with 10% Accuracy
6.8V input over-voltage shut-off
OVP response time: less than 1μs
5.8V output clamp voltage
Thermal shutdown protection
Fault output
Enable interface pin
DFN 2mmx2mm-8L

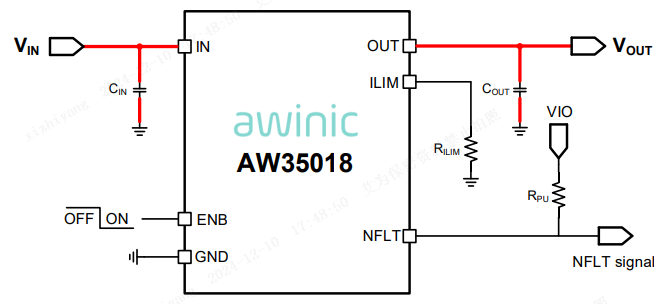

AW35018 is a smart e-Fuse with robust over-current and over-voltage protection. The wide operating voltage allows control of many popular DC buses.
AW35018 uses N-channel MOSFET as power switch, and allows the user to program the current-limit threshold between 100mA to 1.5A with an external resistor.
AW35018 can withstand 32V DC voltage. In the events that an incorrect voltage is IN, the output voltage clamps to 5.8V to protect the load. If the voltage at IN exceeds 6.8V, the device disconnects the load to prevent damage to the device and load.
Additional features include enable, under-voltage, over-temperature and fault flag output are provided to monitor system status.
