AW32915CFCR

Over-Voltage Protection Load Switch with Surge Protection

Datasheet :
Preview - AW32915CFCR - Datasheet

Product details

Default OVP Threshold (V) 6.8
Number of PIN 12
Surge Protection (V) 80
Continuous current of switch IN-OUT （Max）（A） 5
Ron (mΩ) 29
Input DC Withstand Voltage (V) 32
OVP Response Time (ns) 50
Temperature -40℃~85℃
IO Level (V) 1.8 3.3
Package (mm) FCQFN 1.6X1.2-12L
FCQFN 1.6X1.2-12L
 Highly reliable FCQFN 1.6mm×1.2mm-12L package and FOPLP 1.6mm×1.2mm-12B package  Surge protection  IEC 61000-4-5: 80V  Integrated low Rdson nFET switch: typical 29mΩ  5A continuous current capability  Default Over-Voltage Protection threshold  AW32915C: 6.8V  OVP threshold adjustable range: 4V to 24V  Input system ESD protection  IEC 61000-4-2 Contact discharge: ±8kV  IEC 61000-4-2 Air gap discharge: ±15kV  Input voltage: 32VDC  Fast turn-off response: typical 50ns  Over-Temperature Protection (OTP)  Under-Voltage Lockout (UVLO)

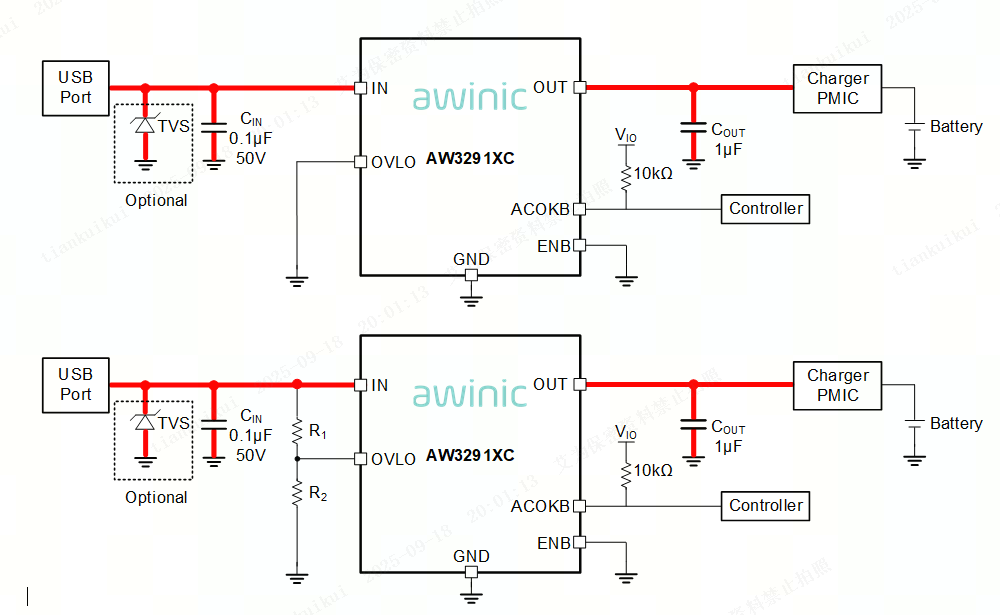

AW3291XC family OVP load switch features surge protection, an internal clamp circuit protects the device from surge voltages up to 80V. AW3291XC features an ultra-low 29m (typ.) Rdson nFET load switch. When input voltage exceeds the OVP threshold, the switch is turned off very fast to prevent damage to the protected downstream devices. The IN pin is capable of withstanding fault voltages up to 29VDC. The default OVP threshold is 6.8V (AW32915C), the OVP threshold can be adjusted from 4V to 24V through external OVLO pin. The device features an open-drain output ACOKB, when VIN_UVLO< VIN < VIN_OVLO and the switch is on, ACOKB will be driven low to indicate a good power input, otherwise it is high impedance. This device features over-temperature protection that prevents itself from thermal damaging.

Technical documentation
Type
Title
Language
Date
Datasheet DS_AW3291XC_EN_V1.2 英文   2026-02-13
Reliability Report Reliability Qualification Report For AW32915CFCR 英文   2026-06-03

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

OVP_12B_ACOK_EVB_V1.2 — The OVP_12B_ACOK_EVB_V1.2 EVB is an OVP test board from AWINIC with surge protection. The key test points of the chip are led out separately on the test board for convenient testing.
