AW26024EQNR

24/18-Channel Intelligent 12-Bit RGB LED Driver

Datasheet :
Preview - AW26024EQNR - Datasheet

Product details

Parameters

Channel 24
Global Current Level 32
Current Levels for Color-Mixing 256
Current Levels for Dimming 4096
Charging Indicator NO
Control Interface IIC
Power Supply (Max) (V) 5.5
Global Max Current(mA) 51
IO Level (V) 1.2 1.8 3.3
Audio Sync. NO
Power Supply (Min) (V) 2.7
Auto Breath YES
Temperature -40℃~105℃
Topology Linear
Package (mm) QFN 4X4-32L

Package | Pins | Size

QFN 4X4-32L

Features

1、24/18-channel RGB LED Driver 2、Independent 12-bit PWM modulation 2.1、Independent color mixing register per channel 2.2、Independent brightness register per RGB LED group 2.3、Linear or logarithmic brightness control 3、Maximum output current: 25.5mA or 51mA 4、Autonomous Breathing Mode 5、Manual Breathing Mode 6、High-precision current sinks 6.1、Device to device error：±5% 6.2、Channel to channel error：±5% 7、LED Bank control 7.1、3 banks for RGB LED color control 7.2、1 bank for RGB LED brightness control 8、Power save mode when all LED off > 30ms 9、EMI reduction: slew rate control 10、Over temperature protection 11、1.2V IO compatible 12、Up to 1MHz I2C interface, 4 independent addresses, 1 broadcast address 13、Power supply: 2.7V to 5.5V 14、QFN 4mm x 4mm x 0.85mm 32L package

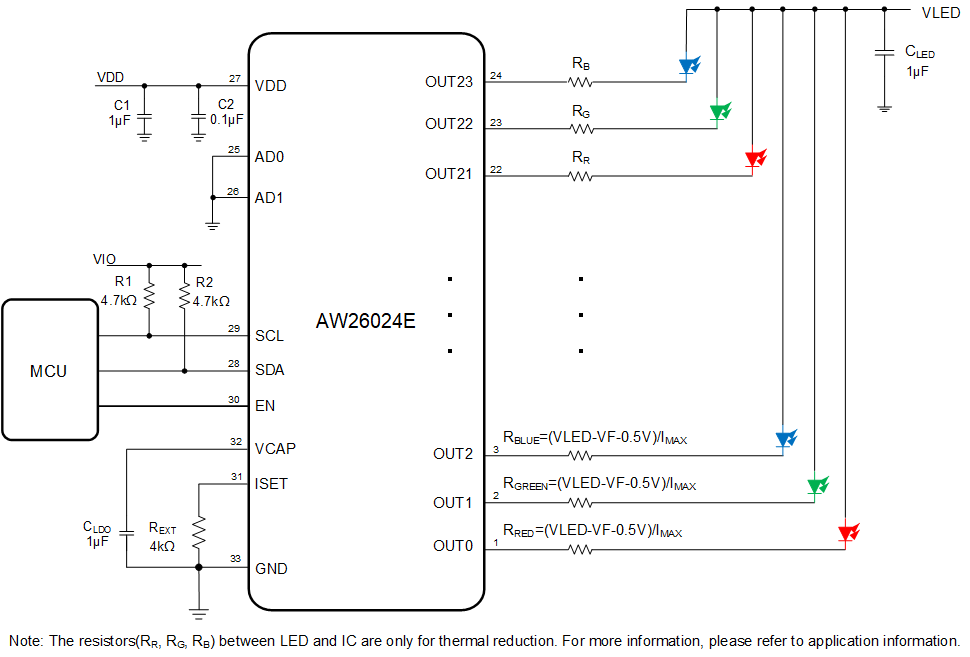

Description

AW26024E/AW26018E is a 24/18-channel high precision constant current LED driver. AW26024E/AW26018E supports 5-bit globe current control. Each channel integrates independent 12-bit PWM generator which is composed of 8-bit brightness register and 8-bit color register. The maximum current of each channel is recommended to be configured via external resistor REXT. AW26024E/AW26018E supports Auto-Breath-Pattern and has a flexible and efficient lighting effect programming function, which can reduce the resource occupation of the main controller. AW26024E/AW26018E can be turned off with minimum current consumption by pulling the EN pin low. When EN pin pull high and all LEDs off >30ms, AW26024E/AW26018E enters power save mode. AW26024E/AW26018E is available in QFN 4mm x 4mm x 0.85mm-32L package. It operates from 2.7V to 5.5V over the temperature range of -40℃ to 105℃.
