AW21209QNR

Nine-Channel LED Driver with Execution ENGINE and Charge Pump

Datasheet :
Preview - AW21209QNR - Datasheet
Ref.Price
  • 1-99￥8.95
  • 100-249￥7.34
  • 250-499￥5.91
  • 500-999￥4.65
  • 1000+￥3.58

Product details

Channel 9
Global Current Level 1
Current Levels for Color-Mixing 256
Current Levels for Dimming 256
Charging Indicator NO
Control Interface IIC
Power Supply (Max) (V) 5.5
Global Max Current(mA) 25.5
IO Level (V) 1.2 1.8 3.3
Audio Sync. NO
Power Supply (Min) (V) 2.7
Auto Breath YES
Temperature -40℃~105℃
Topology Charger pump
Package (mm) QFN 4X4-24L
QFN 4X4-24L
1.Power Supply Voltage Range: 2.7V to 5.5V 2.Operating Temperature Range: -40°C to 105°C 3.9 Independent Programmable LED Channels 4.Each Channel Supports an 8-Bit Current Setting, with a Maximum Output Current of 25.5mA 5.Each Channel Features 12-Bit PWM Control Resolution 6.High-efficiency Adaptive Charge Pump (1x/1.5x) with Efficiency up to 94% 7.Charge Pump Incorporates Soft Start, Overcurrent, and Short-Circuit Protection 8.LED Driver Efficiency Reaches up to 93% 9.Integrated Open-Circuit, Short-Circuit, and Voltage Error Detection 10.Automatic Power-Saving Mode 11.Three Independent Program Execution Engines 12.Large SRAM Program Memory 13.I2C interface 14.Supports Cascading Applications 15.Low-level external trigger function 16.AW21209FOR package: FOWLP 2.26X2.26-25B 17.AW21209QNR package: QFN 4X4-24L

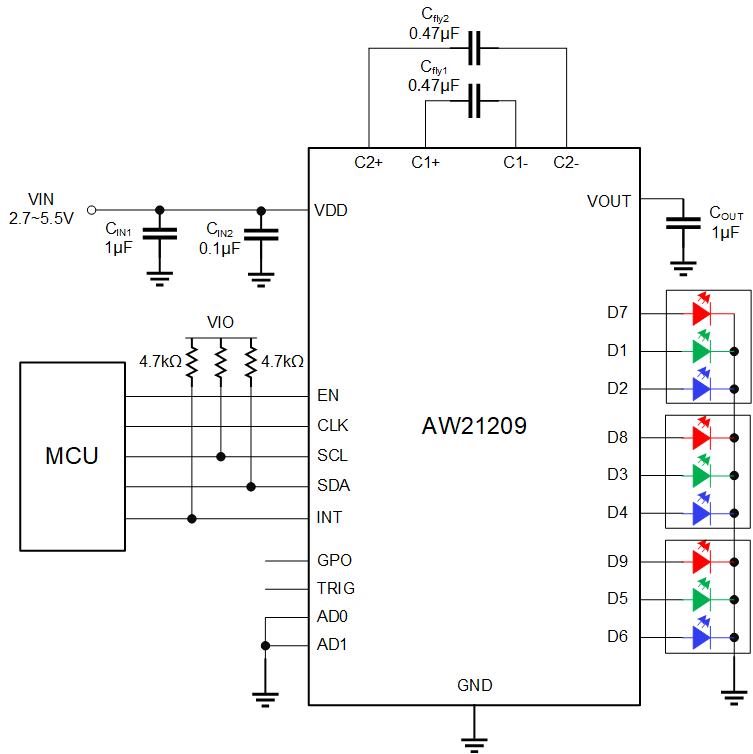

AW21209 is a programmable 9-channel LED driver specifically designed for mobile devices. It features an internal program memory that enables it to operate independently without the need for an external processor and generate the desired lighting effects. There are two products in total: AW21209FOR and AW21209QNR. Since the AW21209QNR has no GPO pins, all control logic related to GPO (such as the GPO bit in the IO_CTRL register and the mapping function of GPO in the LED mapping instruction) is not applicable. AW21209 is equipped with an efficient charge pump that can drive LEDs across the entire voltage range of lithium-ion batteries and automatically selects the optimal charge pump gain to meet the forward voltage requirements of the LEDs, ensuring high efficiency over a wide operating voltage range. When the LEDs are not activated, the AW21209 automatically enters a power-saving mode, significantly reducing current consumption in idle states. AW21209 features a control interface compatible with the I2C protocol and supports four different address selections, facilitating system integration. The TRIG pin can trigger the operation of light effects and synchronize multiple devices. The INT pin can send an interrupt signal to the processor after the lighting sequence is completed. The GPO pin can be used as a digital control pin for other devices.

Technical documentation
Type
Title
Date
Datasheet DS_AW21209_EN_V1.3   2025-08-15

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW21209QNR_EVB_V1.1 — EVB evaluation board for the 9-channel Charge Pump LED driver AW21209QNR

AW21209QNR_EVB_V1.1 is an EVB evaluation board for the Awinic 9-channel Charge Pump LED driver AW21209QNR, which can demonstrate 9-channel LED or 3 RGB lighting effects.
