AW21104QNR

4-Channel Programmable RGBW-LED Driver

Datasheet :
Preview - AW21104QNR - Datasheet
Ref.Price
  • 1-99￥4.85
  • 100-249￥3.97
  • 250-499￥3.20
  • 500-999￥2.52
  • 1000+￥1.94

Product details

Channel 4
Global Current Level 1
Current Levels for Color-Mixing 256
Current Levels for Dimming 256
Charging Indicator NO
Control Interface IIC
Power Supply (Max) (V) 5.5
Global Max Current(mA) 25.5
IO Level (V) 1.2 1.8
Audio Sync. NO
Power Supply (Min) (V) 2.7
Auto Breath YES
Temperature -40℃~105℃
Topology Linear
Package (mm) QFN 3X3-16L
QFN 3X3-16L
1、4-channel programmable LED driver individually 1.1、25.5mA Imax 1.2、Individual 8-bit current resolution 1.3、Individual 8-bit PWM 2、3 program execution engines With Flexible Instruction Set 3、Autonomous Operation With Program Execution Engines 4、SRAM memory for lighting pattern programs 5、Current accuracy ±5%@17.5mA 6、Current match accuracy：±2%@17.5mA 7、Auto power save mode 8、1MHz I2C Interface 9、Support 1.2V/1.8V logic level 10、Power supply: 2.7V~5.5V 11、QFN 3mmX3mm-16L package

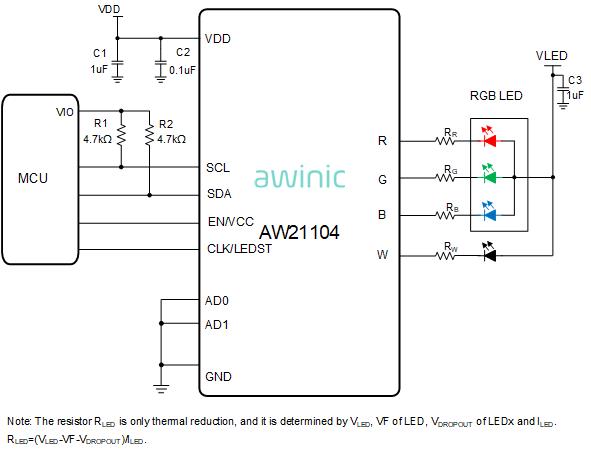

The AW21104QNR is a 4-channel LED driver designed to produce variety of lighting effects. The device has a program memory for creating variety of lighting sequences. When the program memory has been loaded, the AW21104QNR can operate independently without processor control. The AW21104QNR is able to automatically enter power save mode, when LED outputs are not active and thus lowering current consumption. Four independent LED channels have accurate programmable current sinks, from 0mA to 25.5mA with 100μA steps and flexible PWM control. Each channel can be configured into each of the three program execution engines. Program execution engines have program memory for creating desired lighting sequences with PWM control. The AW21104QNR has four pin-selectable I2C addresses. This allows connecting up to four parallel devices in one I2C bus. The device requires only one small, low-cost ceramic capacitor.

Technical documentation
Type
Title
Date
Product Design Guide AW21104 Software Design Guide   2025-12-23
Product Design Guide AW21104 Hardware Design Guide   2026-02-28
Datasheet DS_AW21104QNR_EN_V1.5   2026-03-26
