| Global Current Level |
256 |
| Current Levels for Color-Mixing |
256 |
| Channel |
36 |
| Current Levels for Dimming |
256 |
| Charging Indicator |
NO |
| Control Interface |
IIC |
| Power Supply (Max) (V) |
5.5 |
| Global Max Current(mA) |
50 |
| IO Level (V) |
1.8 |
| Audio Sync. |
NO |
| Power Supply (Min) (V) |
2.7 |
| Auto Breath |
YES |
| Temperature |
-40℃~125℃ |
| Topology |
Linear |
| Package (mm) |
QFP 7X7-48L |
AEC-Q100 Qualified
36-channel RGB LED Driver
Global 256-level DC current configuration
Individual 256-level PWM for dimming
Individual 256-level current for color-mixing
High-precision current sinks
Device-to-device error: ±7%
Channel-to-channel error: ±6%
EMI and audible noise reduction
Phase delay and phase inverting scheme
Spread spectrum function
Flexible LED lighting pattern control
LED open/short detection per channel
Auto power saving mode when all LEDs off > 32ms
Over-temperature protection
400kHz I2C interface, four selectable addresses
Power supply: 2.7V~5.5V
-40°C to +125°C temperature range
QFP 7mmX7mmX1.2mm-48L package

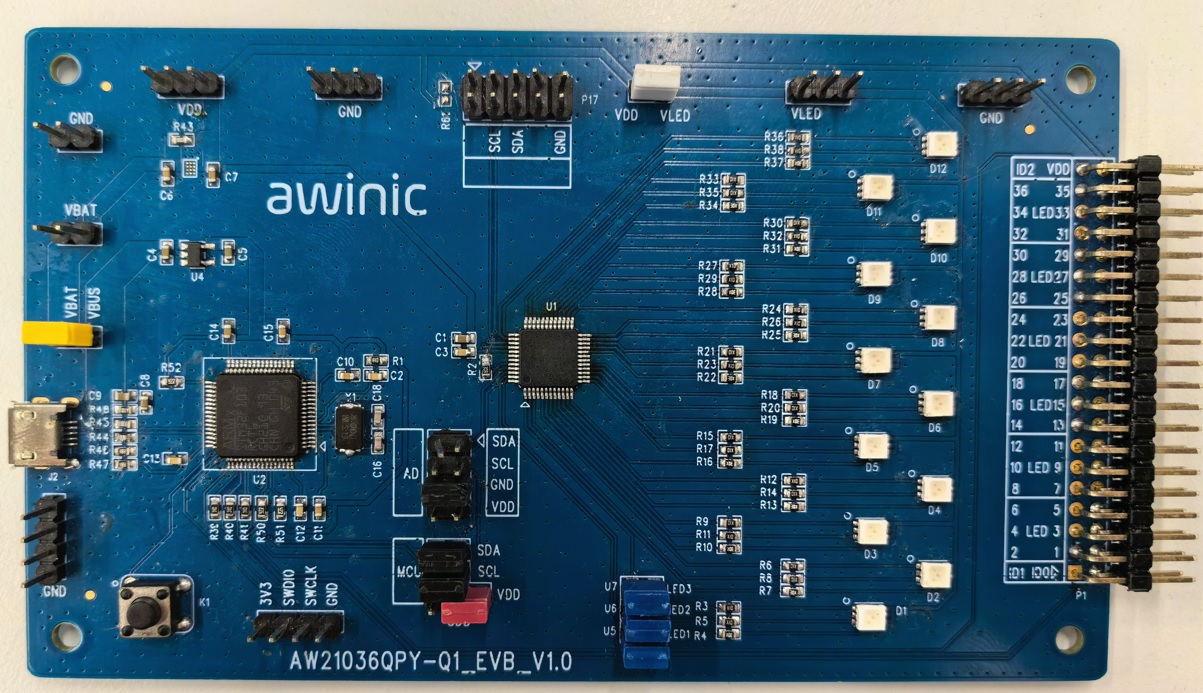

AW21036QPY-Q1 is a 36-channel high precision constant current LED driver. Each channel has individual 8-bit DC current setting for color-mixing and 8-bit PWM current for brightness control. The maximum global current of each channel is recommended to be 50mA configured via internal register and external resistor REXT.
Group control mode, autonomous breathing pattern and rapid RGB control mode are provided for flexible, high efficiency lighting effect programming and fast display updating.
Programmable phase-shifting and spread spectrum technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on or off simultaneously.
AW21036QPY-Q1 can be turned off with minimum current consumption by either pulling the EN pin low or setting bit GCR.CHIPEN=0.
AW21036QPY-Q1 operates from 2.7V to 5.5V over the temperature range of -40°C to +125°C.
