AW21012QNR

12 Multi-Function LED Driver With I2C Interface

Datasheet :

Preview - AW21012QNR - Datasheet

Ref.Price

1-99￥6.89
100-249￥5.65
250-499￥4.55
500-999￥3.58
1000+￥2.76

Product details

Channel	12
Global Current Level	256
Current Levels for Color-Mixing	256
Current Levels for Dimming	4096
Charging Indicator	NO
Control Interface	IIC
Power Supply (Max) (V)	5.5
Global Max Current(mA)	40
IO Level (V)	1.8 3.3
Audio Sync.	NO
Power Supply (Min) (V)	2.7
Auto Breath	YES
Temperature	-40℃~85℃
Topology	Linear
Package (mm)	QFN 3X3-20L

QFN 3X3-20L

1、12-channel RGB LED Driver 1.1、Global 256-levels DC current configuration 1.2、Individual 4096-levels PWM for dimming 1.3、Individual 256-levels current for color-mixing 1.4、Dither function 2、High-precision current sinks 2.1、Device-to-device error: ±5% 2.2、Channel-to-channel error: ±5% 3、EMI ａｎｄ audible noise reduction 3.1、Slew rate control function 4、Flexible LED lighting pattern control 5、LED open/short detection per channel 6、Auto power save mode when all LEDs off > 32ms 7、Under voltage lock out ａｎｄ over temperature protection 8、1MHz I2C interface, 4 selectable addresses: 20h, 21h, 24h, 25h 9、Power supply: 2.7V~5.5V 10、QFN 3mmX3mmX0.75mm-20L package

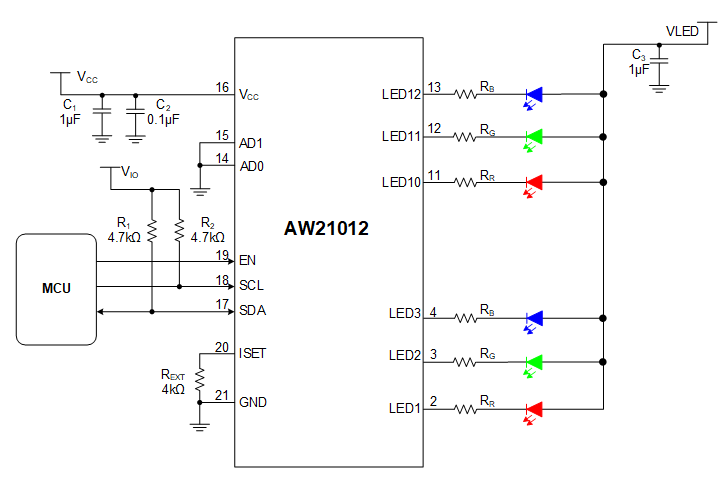

AW21012 is a 12-channel multi-function LED driver. Each channel has individual 8-bit DC current setting for color-mixing ａｎｄ maximum 12-bit PWM resolution for brightness control. The global current of each channel is recommended to be 40mA configured via register ａｎｄ external Resistor REXT. Group control mode, autonomous breathing pattern ａｎｄ rapid RGB control mode are provided for flexible, high efficiency lighting effect programming ａｎｄ fast display updating. Programmable spread spectrum technology are utilized to reduce EMI ａｎｄ audible noise caused by MLCC when LEDs turn on ｏｒ off simultaneously. AW21012 can be turned off with minimum current consumption by either pulling the EN pin low ｏｒ using the software shutdown feature. AW21012 is available ｉｎ QFN 3mmX3mmX 0.75mm-20L package. It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C.

Technical documentation

Type	Title	Date
Product Design Guide	AW21018&AW21012&AW21009 Application Design Guide	2023-05-08
Product Design Guide	AW21009XQNR AW21012QNR AW21018QNR Software Design Guide	2025-01-24
Product Design Guide	AW21018 & AW21012 & AW21009 Hardware Design Guide	2025-01-24
Datasheet	DS_AW21012_EN_V1.3	2025-09-28

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW21012 EVB V1.0 — "AW21012 is an I2C-controlled 12-channel DC LED control driver;"; AW21012 is an LED driver board that includes an MCU and a light board. It can demonstrate various lighting effects and can also be debugged using Awinic UI; "

AW21012 is an I2C-controlled 12-channel DC LED control driver

View options

Software development

DRIVER OR LIBRARY

AW210XX_Driver — Android Driver for AW210XX

AW210XX Driver，includeing sample code,porting guide,debugging guide etc

View options

APPLICATION SOFTWARE&FRAMEWORK

AW21018_AW21012_AW21009_AW95016A_GUI — Intelligent RGB LED driver Tunning Tools of AW210XX series

AW210XX GUI is a highly integrated and easy-to-use tool for product configuration and debugging.Intuitive interface and user-friendly operation can help custion can help customers shorten development cycle and complete system integration quickly

View options

DRIVER OR LIBRARY

AW210XX_Driver_MCU_V1.0.1 —
