AW20216SQNR

18×12 MATRIX LED DRIVER WITH AUTO BREATH

Datasheet :
Preview - AW20216SQNR - Datasheet

Product details

Parameters

Channel 216
Global Current Level 256
Current Levels for Color-Mixing 256
Current Levels for Dimming 256
Charging Indicator NO
Control Interface SPI
Power Supply (Max) (V) 5.5
Global Max Current(mA) 120
IO Level (V) 1.8
Audio Sync. NO
Power Supply (Min) (V) 2.7
Auto Breath YES
Temperature -40℃~105℃
Topology Matrix
Package (mm) QFN 5X5-44L

Package | Pins | Size

WBQFN 5X5-44L(0.75)

Features

18 current sinks, 12 current switches, up to drive 216 LEDs or 72 RGBs. Programmable matrix size 3 pattern controllers for auto breathing or group PWM control Global 256-level DC current configuration Individual 256-level PWM for dimming Individual 256-level scaling current for color-mixing High-precision current sinks Device-to-device error: ±5% Channel-to-channel error: ±5% EMI and audible noise reduction Phase control Spread spectrum function Programmable slew rate control Individual 216 LEDs open/short detection Multiple-device clock synchronization by SYNC pin UVLO and over-temperature protection De-Ghost 10MHz SPI interface Power supply: 2.7V~5.5V QFN 5mmx5mmx0.75mm-44L package

Description

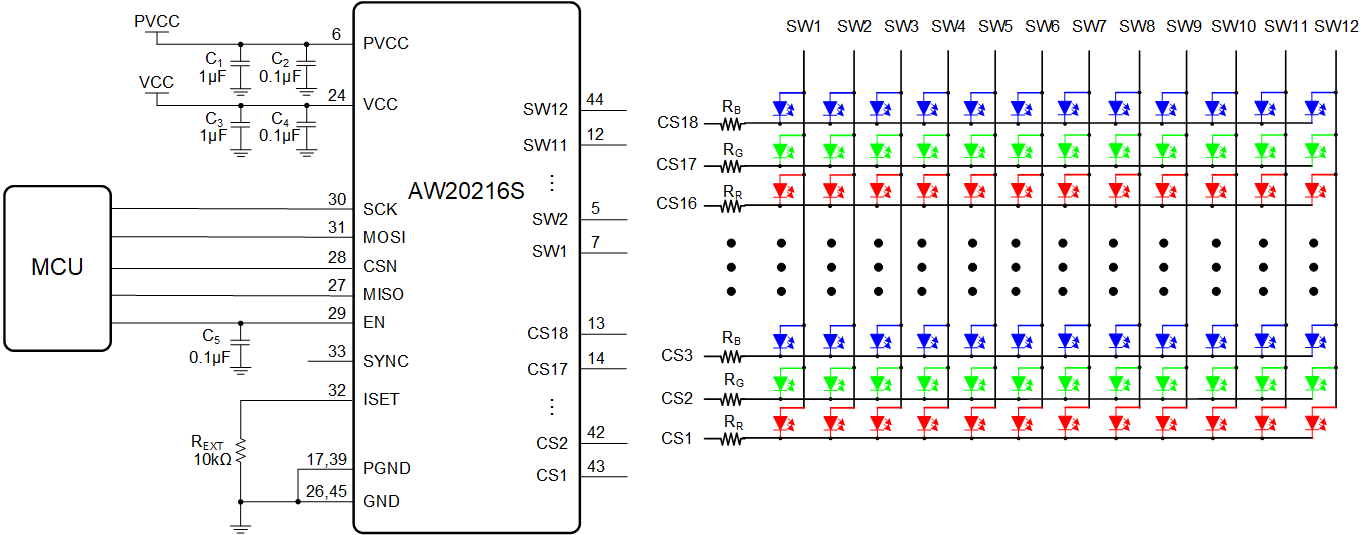

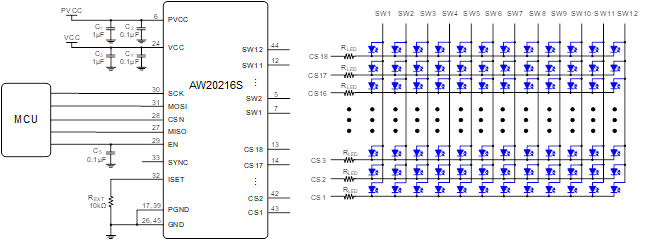

AW20216S is an 18x12 matrix LED driver programmed via an SPI compatible interface. Each channel has individual 8-bit DC current setting for color-mixing and 8-bit PWM current setting for brightness control. The global current of each channel is configured via register GCCR and external resistor REXT. Three integrated pattern controllers provide auto breathing or group dimming control. Each pattern controller can work in auto breathing or manual control mode. All breathing parameters are configurable, including rising/falling slope, on/off time, repeat times, and minimum/maximum brightness, etc. Each LED’s PWM parameter can be sourced from any one of the 3 pattern controllers optionally. Phase-delay, phase-inverting, selectable three phase, spread spectrum and slew rate control technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on or off simultaneously. AW20216S can be turned off with minimum current consumption by either pulling the EN pin low or using the software reset. AW20216S is available in QFN 5mmx5mmx 0.75mm-44L package. It operates from 2.7V to 5.5V over the temperature range of -40°C to 105°C.

Technical documentation
Type
Title
Language
Date
Datasheet DS_AW20216S_EN_V2.0 英文   2024-12-09
Product Design Guide DG_AW20144X_AW20198X_AW20216X_Software_Design_Guide_EN_V1.5 英文   2025-09-09
Product Design Guide AW20144X AW20198X AW20216X Hardware Design Guide 英文   2025-09-15
Application plan 【Application Solution】 “Breathing” Gaming Keyboard: awinic Breathing LED Driver® Lets Light Fight Alongside You 英文   2025-11-27

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW20216 EVB V1.1 — "The AW20216/216S Demo can be used for functional development through the GUI provided as part of the Demo package.". The AW20216/216S Demo can be used in conjunction with the accompanying light board for demonstrating different lighting effects. "

AW20216/216S Demo is an 18*12 LED driver Demo, which includes an MCU and an LED driver circuit
