AW17245FCR

4xSPST MIPI Antenna Tuning Switch

Datasheet :
Preview - AW17245FCR - Datasheet

Product details

Parameters

Frequency (GHz) 0.4~6
Control Interface MIPI
VDD (Min) (V) N/A
VDD (Max) (V) N/A
VIO (Min) (V) 1.65
VIO (Max) (V) 1.95
Vpeak (V) 50
Ron (Ω) 1.1
Coff (fF) 160
ISO (Max) (dB) 33
Temperature -40℃~85℃
ISO (Min) (dB) 19
Package (mm) FCQFN 1.5X1.1-10L

Package | Pins | Size

FCQFN 1.5X1.1-10L

Features

1、High Voltage Handling
2、Very Low On-Resistance,1.1Ω
3、Low Off- Capacitance, 160fF
4、High linear performance
5、MIPI RFFE V2.1 interface
6、Small FCQFN 1.5mm x 1.1mm x 0.37mm - 10L package
7、Single VIO supply, no VDD
8、Broadband frequency range: 0.4 to 6GHz

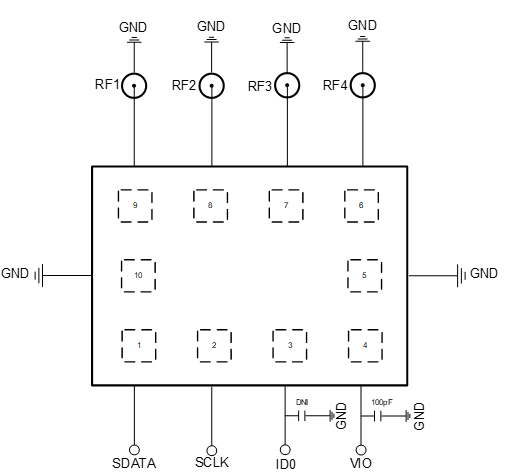

Description

The AW17245FCR is four single-pole-single-throw(4xSPST) antenna tuning switch, using CMOS silicon-on-insulator (SOI) process. The high voltage handling, high linear performance and very low Ron and COFF make the switch very suitable for high performance antenna tuning application.
The AW17245FCR is perfectly compatible with MIPI RFFE V2.1 control interface. It is provided very small FCQFN 1.5mm x 1.1mm x 0.37mm – 10L package.

Technical documentation
Type
Title
Language
Date
Product Design Guide AW17245FCR Hardware Design Guide 英文   2023-04-19
Datasheet DS_AW17245FCR_EN_V1.0 英文   2023-06-06

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

AW17245FCR_EVB_V1.4 — This EVB is used for evaluating performance of 4xSPST Tuner Switch, including S-parameters, Ron, Coff, etc.
