| Frequency (GHz) |
GNSS L1&L2&L5 |
| VCC (Min) (V) |
1.08 |
| VCC (Max) (V) |
3.1 |
| Gain(dB) |
19 |
| NF(dB) |
0.55 |
| Icc (mA) |
5 |
| Temperature |
-40℃~105℃ |
| P1dB (dBm) |
-10 |
| Package (mm) |
DFN 1.1X0.7-6L |
1.Operation frequencies:
L1 Band: 1550MHz to 1615MHz
L2&L5 Band: 1160MHz to 1300MHz
2.Low noise figure:
0.55dB@ L1 Band
0.6dB@ L2&L5 Band
3.High power gain:
19dB@ L1 Band
21dB@ L2&L5 Band
4.Require only one input matching inductor
5.Supply voltage: 1.08V to 3.1V
6.DFN 1.1X0.7-6L package

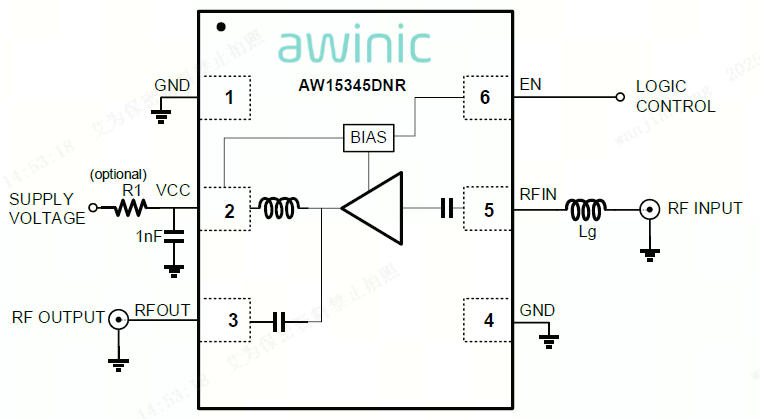

AW15345DNR is a Low Noise Amplifier designed for Global Navigation Satellite Systems (GNSS) as GPS, BDS, GLONASS and Galileo. AW15345DNR requires only one external input matching inductor, and reduces assembly complexity and the PCB area, enabling a cost-effective solution.
AW15345DNR with patented Smart Linearity Technology (SLT) achieves ultra-low noise figure, high linearity, high gain, over a wide range of supply voltages from 1.08V to 3.1V. These features make AW15345DNR an excellent choice for GNSS LNA as it improves sensitivity with low noise figure and high gain, provide better immunity against out-of-band jammer signals with high linearity, reduces filtering requirement of preceding stage and hence reduces the overall cost of the GNSS receiver.
AW15345DNR is available in a small lead-free, RoHS-Compliant, DFN 1.1X0.7-6L package.
