| Frequency (GHz) |
1.518~2.5 |
| VCC (Min) (V) |
1.6 |
| VCC (Max) (V) |
3.1 |
| Gain(dB) |
19 |
| NF(dB) |
0.55 |
| Icc (mA) |
14 |
| Temperature |
-40℃~105℃ |
| P1dB (dBm) |
8.5 |
| Package (mm) |
DFN 1.1X0.7-6L |
1. Operating frequency: L-Band: 1518MHz to 1559MHz; S-Band: 2170MHz to 2500MHz
2. Noise figure: 0.55dB@L-Band, 0.65dB@S-Band
3. High power gain: 23dB@L-Band, 19dB@S-Band
4. Output 1dB-compression point: 8.5dBm@L-Band, 8dBm@S-Band
5. Output 3rd-order intercept point: 19dBm@L-Band, 20dBm@S-Band
6. Supply voltage: 1.6V to 3.1V
7. Input and output DC decoupled
8. DFN 1.1X0.7-6L

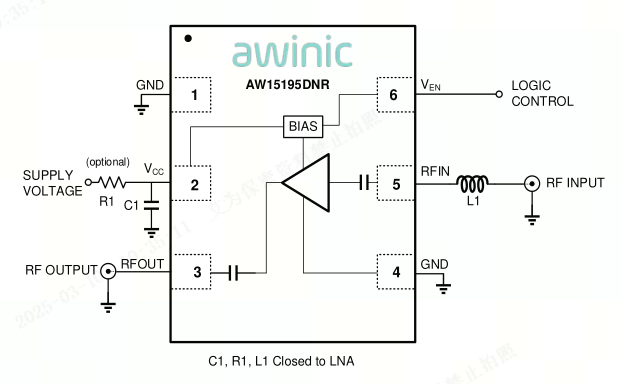

1. The AW15195DNR is a low noise amplifier for satellite communication. The AW15195DNR requires only one external input matching inductor at L or S band, reduces assembly complexity and the PCB area, enabling a cost-effective solution.
2. The AW15195DNR achieves low noise figure, high linearity, high gain, over a wide range of supply voltages from 1.6V to 3.1V. All these features make AW15195DNR an excellent choice for satellite communication application as it improves sensitivity with low noise figure and high gain, provides better immunity against jammer signals with high linearity, reduces filtering requirement of preceding stage and hence reduces the overall cost.
3. The AW15195DNR is available in a small lead-free, RoHS-Compliant, DFN 1.1X0.7-6L.
