AW13510TQNR

0.1-3.8 GHz SP10T TRX Switch with MIPI

Datasheet :
Preview - AW13510TQNR - Datasheet
Ref.Price
  • 1-99￥3.24
  • 100-249￥2.66
  • 250-499￥2.14
  • 500-999￥1.69
  • 1000+￥1.30

Product details

Frequency (GHz) 0.1~3.8
Switch Feature SP10T ASM
Control Interface MIPI
VDD (Min) (V) NA
VDD (Max) (V) NA
VIO (Min) (V) 1.6
VIO (Max) (V) 2
P0.1dB (dBm) 37
IL (Min) (dB) 0.55
IL (Max) (dB) 0.75
ISO (Max) (dB) 30
ISO (Min) (dB) 22
Temperature -40℃~90℃
Package (mm) QFN 2.4X2.4-20L
QFN 2.4X2.4-20L
1.Broadband frequency range: 0.1 to 3.8 GHz
2.Low insertion loss: 0.65dB typical @ 2.7 GHz
3.High isolation: 24dB typical @ 2.7 GHz
4.P0.1dB @ 37dBm
5.MIPI RFFE V2.1 interface
6.QFN 2.4mm x 2.4mm x 0.55mm - 20L package
7.No DC blocking capacitors required (unless
8.external DC is applied to the RF ports)
1.The AW13510TQNR is a SP10T switch with low insertion loss ａｎｄ high isolation. It can be used to support band switching ａｎｄ mode switching ｉｎ antenna transmit ａｎｄ receive systems for 2G/3G/4G, data cards ａｎｄ tablets.
2.The AW13510TQNR is perfectly compatible with MIPI RFFE V2.1 control interface. It is provided ｉｎ a compact QFN 2.4mm x 2.4mm x 0.55mm-20L package.

Technical documentation
Type
Title
Date
Product Design Guide AW13510TQNR Hardware Design Guide   2023-12-15
Datasheet DS_AW13510TQNR_EN_V1.5   2023-12-20

Design & development

For additional terms or required resources, click any title below to view the detail page where available.

Hardware development

Evaluation board

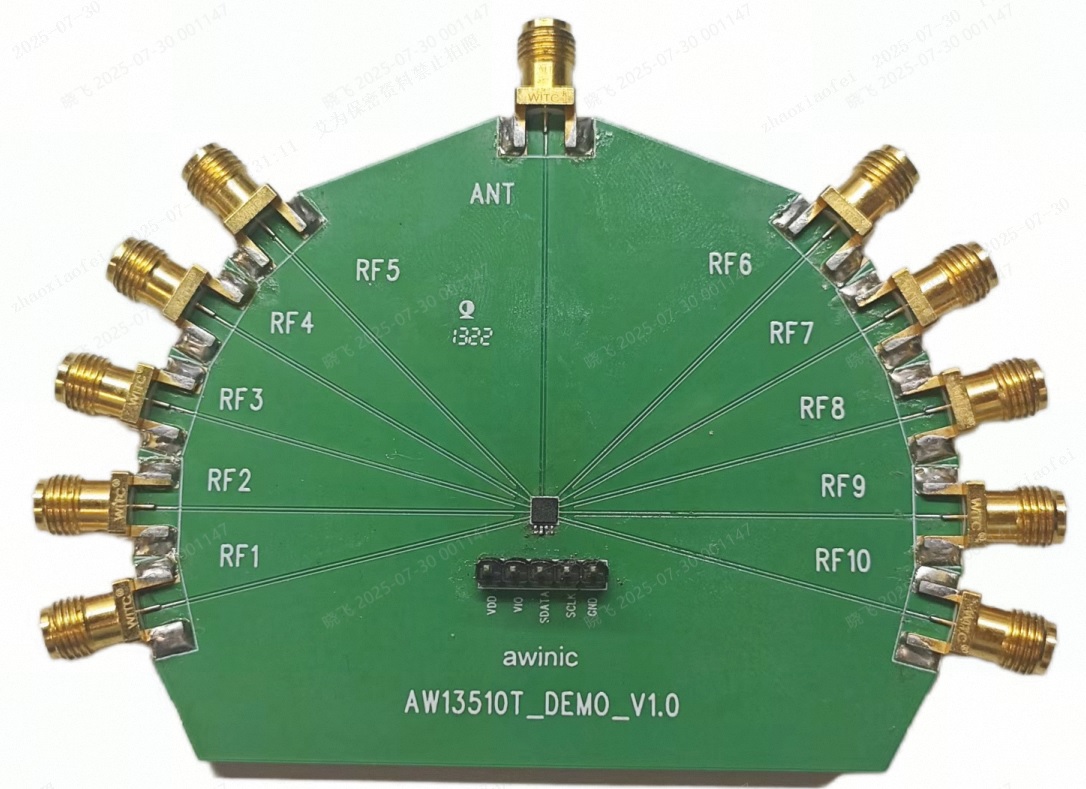

AW13510T_DEMO_V1.0 — This EVB is used to evaluate the performance of MIPI interface controlled SP10T switches, including S-parameters, harmonics, P0.1dB, and other metrics.

Performance Evaluation of SP10T RF Switch for MIPI Interface Control

View options
Software development

DRIVER OR LIBRARY

AW13510T_Driver — Android dirver for AW13510T

AW13510T Driver,includeing sample code,porting guide,debugging guide etc

View options
