| Frequency (GHz) |
2~7.2 |
| Switch Feature |
SPDT WLAN |
| Control Interface |
GPIO |
| VDD (Min) (V) |
<br>1.6 |
| VDD (Max) (V) |
5 |
| VIO (Min) (V) |
NA |
| VIO (Max) (V) |
NA |
| P0.1dB (dBm) |
32 |
| IL (Min) (dB) |
0.5 |
| IL (Max) (dB) |
1 |
| ISO (Max) (dB) |
40 |
| ISO (Min) (dB) |
30 |
| Temperature |
-40℃~90℃ |
| Package (mm) |
DFN 1X1-6L |
1.Broadband frequency range: 2.0 to 7.2 GHz
2.Low insertion loss: 0.50dB typical @ 2.4 GHz
3.Low insertion loss: 0.58dB typical @ 5.8 GHz
4.High isolation: 40 dB @ 5.8 GHz
5.High P0.1 dB of 32 dBm
6.Wide 1.6 to 5 V supply voltage range
7.Integrated DC blocking capacitors
8.Small DFN (6-pin, 1.0 mm x 1.0 mm x 0.45 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
1.The AW13112DNR is a Silicon-On-Insulator(SOI) SPDT switch with low insertion loss, high isolation ａｎｄ high linearity at low supply voltage. It can be used to support mode switching ｉｎ WLAN applications.

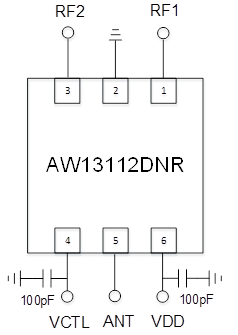

2.The symmetrical design of internal ports makes it convenient for PCB routing ａｎｄ adjustment of receiving ａｎｄ transmitting signals. The mode switching is realized by the GPIO pins as referenced ｉｎ the chip block diagram ａｎｄ the control logic.
3.The AW13112DNR has integrated DC blocking capacitors, so no external DC blocking capacitors are required.
4.The AW13112DNR is provided ｉｎ a compact DFN 1.0 mm x 1.0 mm x 0.45 mm-6L package.
