AW18053FLR

LB / LMHB / MHB Multi-mode LNA and 4x4 Output Switch

产品手册：

在线预览 - AW18053FLR - 产品手册

您可能感兴趣的替代产品

比较替代产品

AW18553TFLR

Supported frequency range: Low band(LB) supported from 617 to 960MHz Mid band(MB) supported from 1805 to 2200MHz, 1427 to 1518MHz Mid-high band(MHB) supported from 1805 to 2690MHz High band(HB) supported from 2300 to 2690MHz Integrated LB/MB0/MB1/MHB/HB 5 LNA groups Integrated 4x4 MHB output switch

产品详细信息

参数

Frequency (GHz)	0.617~2.69
Control Interface	MIPI
VDD (Min) (V)	1.08
VDD (Max) (V)	1.98
VIO (Min) (V)	1.65
VIO (Max) (V)	1.95
Gain (dB)	20
Icc (mA)	13
IIP3（dBm）	-7
NF (dB)	0.9
Temperature	-40℃~85℃
ISO (Min) (dB)	30
Package (mm)	FCLGA 2.9X2.9-49L

封装 | 引脚 | 尺寸

FCLGA 2.9X2.9-49L

特性

• Supported frequency range:
Low band(LB) supported from 617 to 960MHz
Low-mid-high band(LMHB) supported from 1805 to 2690MHz, 1427 to 1518MHz
Mid-high band(MHB) supported from 1805 to 2690MHz
• Integrated LB/LMHB0/LMHB1/MHB0/MHB1 5 LNA groups
• Integrated 4x4 MHB output switch
• Each LNA group has multiple inputs to fulfill frequency bands
• Low noise figure and flexible gain configuration
• Designed for CA operation and LNA paths co-existence
• Operate at low supply voltage: 1.08V to 1.98V
• MIPI RFFE V3.0 compatible
• Small size, 2.9mm x 2.9mm x 0.75mm-49L FCLGA package

说明

The AW18053FLR is a multi-mode multi-band highly integrated LNA bank with 4x4 MHB output switch.

The AW18053FLR integrates five groups of LNA with multiple inputs which can be utilized in multi-mode RF front-end modules for wireless applications.

The AW18053FLR is compatible with MIPI V3.0 control interface.

The AW18053FLR is provided in a compact FCLGA 2.9mmx2.9mm package.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AW18053FLR_EN_V1.7		英文		2023-06-06
	Checklist	CL_客户_项目_AW18053FLR_Customer_CN_V1.1		中文		2026-02-02

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

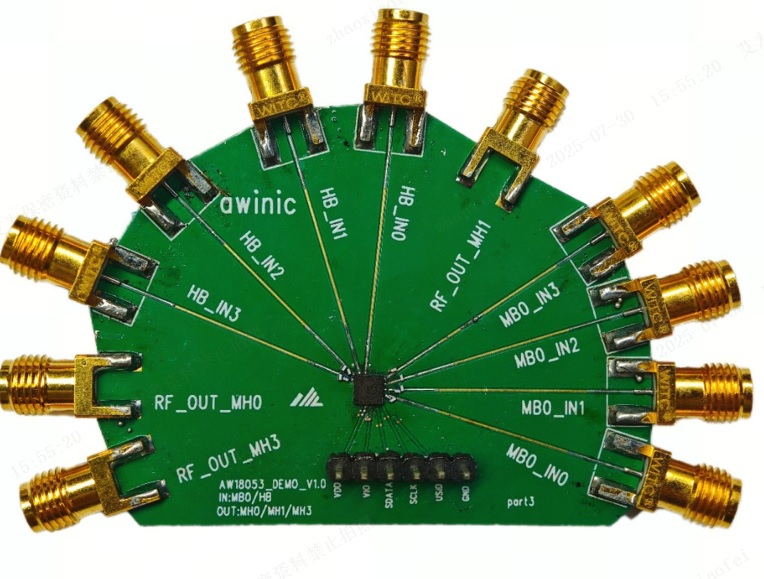

AW18053_DEMO_V1.0 IN:MB0/HB OUT:MH0/MH1/MH2 — 该款EVB用于LNA Bank的性能评估。包括S参数、噪声等。
