In the core link of industrial automation, Hall sensors serve as the "sensing nerve" for magneto electric conversion, and their performance directly determines the operational stability, control accuracy, and service life of terminal devices. Faced with the severe challenges of 12V/24V bus voltage fluctuations, rampant electromagnetic interference, and alternating high and low temperature environments in industrial scenarios, traditional Hall devices often fall into pain points such as adaptation limitations, insufficient anti-interference ability, and high and low temperature alternating output jitter.
As a leading enterprise in the field of mixed signal technology, Awinic Electronics relies on Hyper Hall ™ Core technological advantages in the R series(Rugged, featuring durability and adaptability to complex working conditions with high reliability scenarios) New AW8652X/AW8653X series high-voltage Hall sensors have been added, which are suitable for wide voltage, anti-interference protection, precise and reliable. Breakthroughs have been made in the three core dimensions, providing highly reliable magnetic sensor solutions for industrial automation, motor control, intelligent robots, and other fields, helping the manufacturing industry accelerate the upgrading of intelligence.
Core Highlights: Three Major Industrial Breakthroughs, Cracking Pain Points in Scenarios
Wide pressure protection, suitable for complex industrial power environments
Voltage fluctuations and power failures in industrial sites are the main causes of device failure ™ The R series products integrate high-performance voltage stabilization modules, Realize 2.7~32V ultra wide voltage coverage, can be directly adapted 3.3V/5V MCU system and 12V/24V industrial control power supply system. No additional voltage regulator circuit is required, greatly simplifying the system design process. In terms of extreme protection, The absolute maximum power supply voltage of the product can reach ± 40V, It can calmly resist static electricity interference in industrial environments and build a core defense line for circuit safety.
Accurate anti temperature drift, precise and stable output across the entire temperature range
Industrial equipment often needs to operate in extreme environments such as severe cold outdoors, high-temperature machine rooms, and motor heating areas for a long time, which puts strict requirements on the stability output of Hall sensor accuracy. Ai for Hyper Hall ™ The R series is equipped with a high-precision temperature compensation calibration module, which works together with wafer level high-voltage BCD process dual engines, Control the trigger threshold drift within ± 2Gs across the entire temperature range, and improve the magnetic induction threshold consistency by up to 20% compared to traditional Hall schemes，Product operating temperature range coverage-40 ℃ to 150 ℃, storage temperature extended to -50 ℃ to 165 ℃，whether in sub zero cold or high-temperature roasting environments, it can maintain stable magneto electric conversion performance, avoid detection errors caused by temperature changes, and ensure the accuracy and reliability of industrial control instructions.
High sensitivity and fast response
Radiation anti-interference ability meets the vehicle specification level standard
For dynamic scenarios such as industrial motor speed detection and high-speed positioning of cylinder pistons, Awinic Hyper Hall ™ The R series has high sensitivity magnetic detection capability, with the highest sensitivity Bop up to 2mT，point of release Brp up to 1mT，Even in weak magnetic environments, it can respond quickly, Response time ≤ 10 μ s，It can accurately capture the signal changes of high-speed moving magnets and provide timely feedback for closed-loop control systems. Relying on a multi-layer magneto electric shielding circuit architecture, The product's radiation anti-interference and suppression ability has increased by 200% compared to traditional solutions; Tested in accordance with ISO11452-2:2019; ISO7637-2:2011 Vehicle Classification Standard provide more comprehensive safety protection for industrial equipment.
Product Features
Working voltage; 2.7~32V; maximum withstand voltage up to 40V
Support anti reverse connection function, with a maximum withstand voltage of ± 36V
Average power consumption: ≤ 3mA
Response speed<10us
Chopping Frequency up to 800KHZ
Drive capability up to 50mA
Open Drian output;
Support output current limiting protection
Radiation anti-interference capability: compliant with ISO11452-2:2019; ISO7637-2:2011 Vehicle Classification Standard
Working temperature range: -40 ℃~150 ℃
Package type: TO-92S/SOT23-3
Typical Application Diagram
Figure 1 Typical Application Diagram
Typical application scenarios
Figure 2 Typical application scenarios

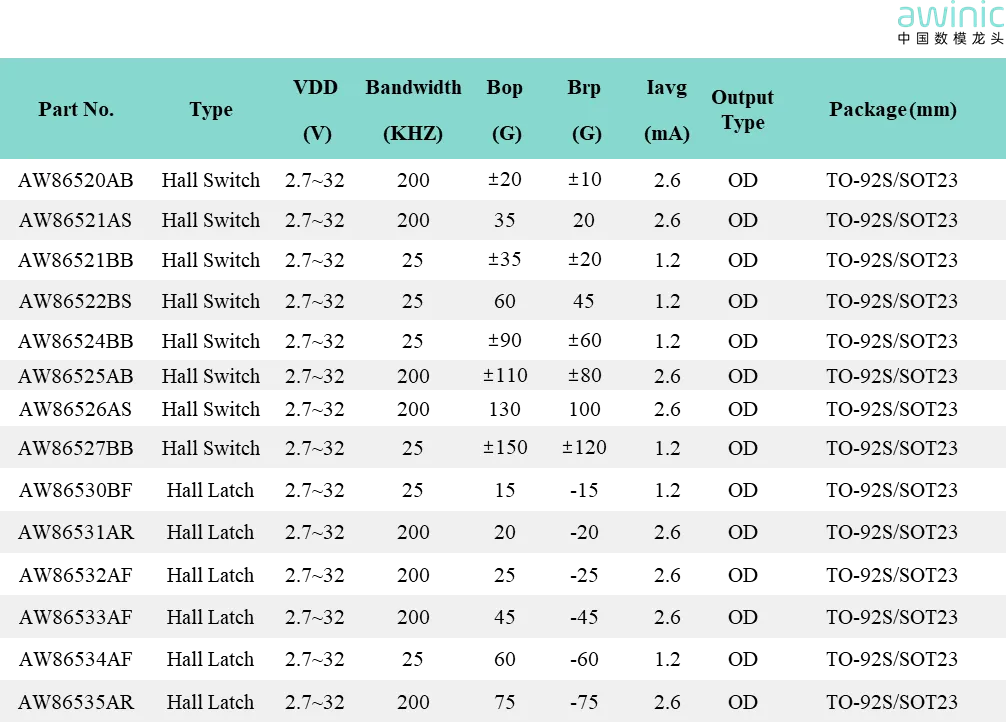

Product Selection Sheet
Table 1 Product Selection Table
