【New Product Launch】Awinic Empowers the Launch of ASUS ROG9 with 6-Axis Anti-Shake Hybrid Gimbal 4.0
As a pioneer in the gaming smartphone segment, the ROG gaming smartphone – ASUS ROG9 – has been officially released. ROG stands for high performance and an ultimate user experience. The main camera of the ASUS ROG9 is equipped with a 6-axis anti-shake Hybrid Gimbal 4.0, which incorporates Awinic’s integrated OIS (Optical Image Stabilization) Driver IC and provides ±5° motion compensation. This powerful collaboration delivers stable and premium imaging effects, offering users a visual feast.
Figure 1: ROG Gaming Smartphone 9 Series
Handheld gimbals/stabilizers are primarily used to secure devices such as smartphones and cameras. They utilize built-in motors and sensors to detect and compensate for device shakes in real time, thereby ensuring stable shooting footage. Micro-gimbals, by contrast, cleverly "fit" the bulky gimbal structure into the limited space of a smartphone. With the synergy of components like dual-ball suspensions and voice coil motors, they achieve 100% overall anti-shake for the module.
Currently, the anti-shake angle of most micro-gimbal devices is typically around ±3°. However, the 6-axis anti-shake Hybrid Gimbal 4.0 – integrated with Awinic’s OIS Driver IC and paired with Awinic’s fully independently developed OIS optical anti-shake algorithm, the "Jingdouyun" OIS Algorithm – has achieved a breakthrough in anti-shake angle, reaching ±5°. This superior anti-shake performance ensures stable and clear footage even when shooting in dynamic scenarios, propelling smartphone photography to a new level.
Awinic has successfully completed the ±5° upgraded micro-gimbal project and supported ASUS in achieving mass production, making it one of the few domestic IC companies with micro-gimbal mass production experience. This marks a successful attempt of Awinic chips in new application solutions and another outstanding case of mutually beneficial cooperation with customers.
Beyond smartphones, micro-gimbal anti-shake technology can also be applied to devices that require large-angle anti-shake and high stability, such as action cameras and drone cameras, presenting broad application prospects.

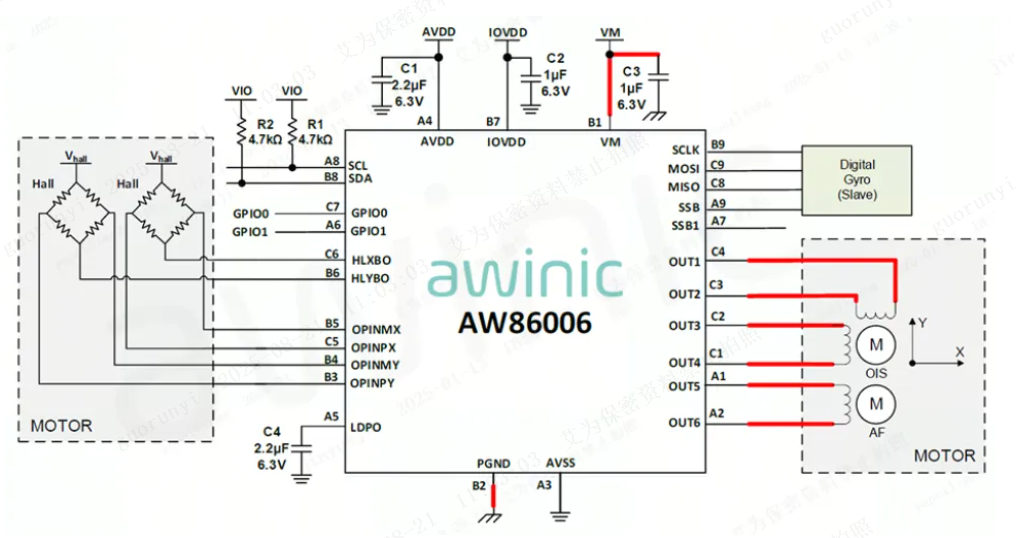

Figure 2: Typical Application Diagram
Product Features
-
2-channel closed-loop OIS control + 1-channel open-loop AF (Auto Focus) control
-
±200mA linear current drive
-
84 DMPIS high-computing-power 32-bit processor
-
64 Kbyte Flash memory for expanded storage capacity
-
12-bit ADC (Analog-to-Digital Converter) for high-precision control
-
Equipped with independent OIS algorithm: Jingdouyun Algorithm
-
Independently solidified Boot Loader for enhanced security
-
2-channel 1MHz IIC interface, compatible with master/slave modes for flexible configurations
-
High-speed SPI interface, with a maximum speed of 7MHz
-
Gyroscope interface supporting master/slave monitoring and one-click setup
-
Package: WLCSP 4.2mm×1.3mm×0.3mm-27B
For auto-focus and optical anti-shake applications, Awinic continues to launch a diverse range of products, covering open/closed-loop focus drives, OIS drives, piezoelectric drives, and more. This achieves comprehensive coverage in the field of camera motor drives, and the rich product ecosystem provides customers with more options.
With a decade of dedication to camera motor drive technology, Awinic is a purely domestic manufacturer offering a full product lineup, including open-loop, closed-loop, and OIS solutions (covering integrated, discrete, and SMA types). It has already established mass production partnerships with multiple brand customers. Meanwhile, Awinic collaborates in-depth with motor manufacturers and module manufacturers, providing a complete one-stop solution for camera motor drives.

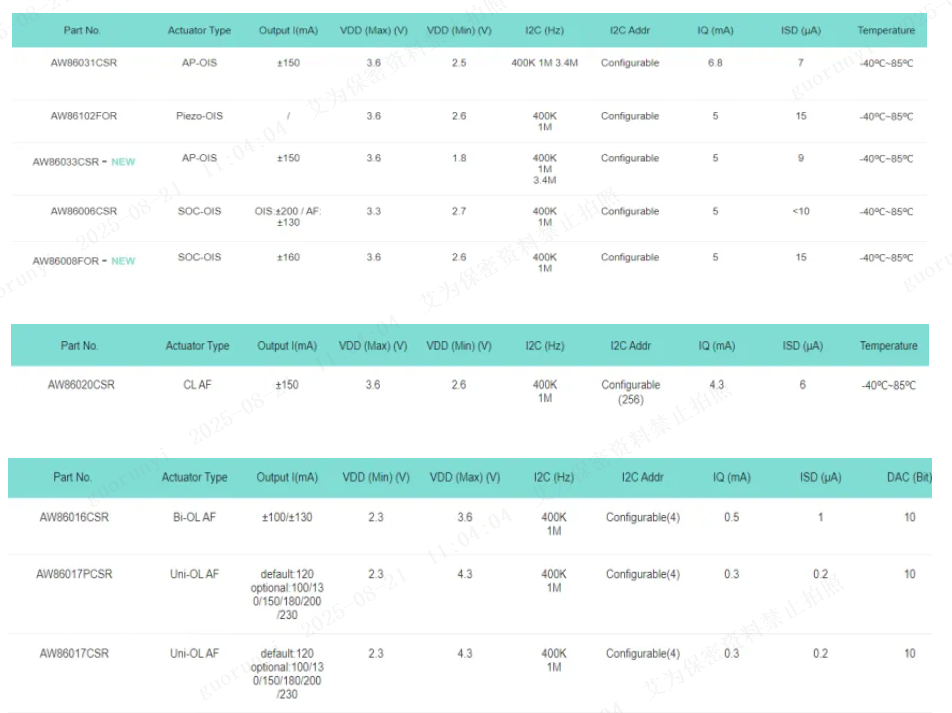

Table 1: Awinic Auto-Focus & Optical Image Stabilization Product Selection Table
