| Power Supply (Min) (V) |
1.7 |
| Power Supply (Max) (V) |
5.5 |
| Threshold Voltage typ.
(V) |
0.405 |
| Threshold Acurracy
（%） |
2.5 |
| ISUPPLY typ.(uA) |
2.2 |
| Vcc To Reset Delay typ.(us) |
|
| Time delay typ.(ms) |
Programmable |
| Reset Output |
Open Drain；Active Low |
| Manual Reset |
YES |
| Power Fail Input |
NO |
| Temperature |
-40℃~125℃ |
| Watch Dog |
NO |
| Package (mm) |
SOT23-6L |
⚫ Power-On Reset Generator with Adjustable
Delay Time: 1.25 ms to 10 s
⚫ Very Low Quiescent Current: 2.4 μA (Typical)
⚫ High Threshold Accuracy: 2.5% (Typical)
⚫ Fixed Threshold Voltages for Standard Voltage
Rails from 0.9 V to 5 V and Adjustable Voltage
Down to 0.4 V Are Available
⚫ Manual Reset (MRB) Input
⚫ Open-Drain RESETN Output
⚫ -40°C to 125°C Operating Temperature Range
⚫ Package
◼ WBSOT23-6L(1.25)

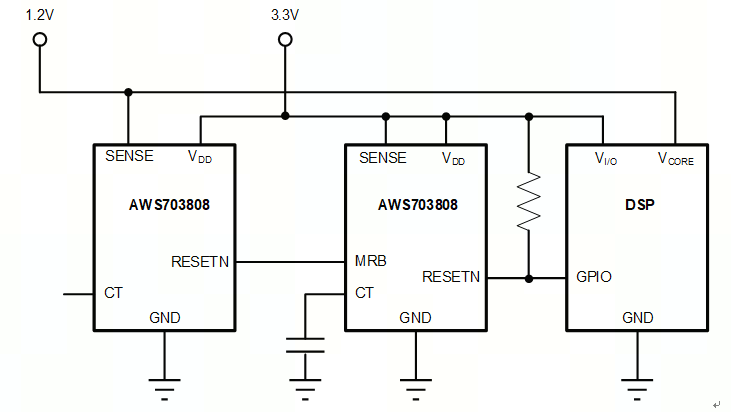

The AWS703808 family of microprocessor
supervisory circuits monitors system voltages from
0.4 V to 5 V, asserting an open-drain RESETN
signal when the SENSE voltage drops below a
preset threshold or when the manual reset (MRB)
pin drops to a logic low. The RESETN output
remains low for the user-adjustable delay time after
the SENSE voltage and manual reset (MRB) return
above the respective thresholds.
The AWS703808 device uses a precision reference
to achieve 2.5% threshold accuracy for VIT ≤ 3.3 V.
The reset delay time can be set to 20 ms by
disconnecting the CT pin, 300 ms by connecting the
CT pin to VDD using a resistor, or can be useradjusted
between 1.25 ms and 10 s by connecting
the CT pin to an external capacitor. The
AWS703808 device has a very low typical
quiescent current of 2.4 μA, so it is well-suited to
battery-powered applications. It is fully specified
over a temperature range of -40°C to 125°C (TJ).
