AWR13012DNR-Q1

产品手册：

在线预览 - AWR13012DNR-Q1 - 产品手册

参考价格

1-99￥9.61
100-249￥7.88
250-499￥6.35
500-999￥5.00
1000+￥3.85

产品详细信息

参数

Frequency (GHz)	0.1~10
Switch Feature	SDPT
Control Interface	GPIO
VDD (Min) (V)	1.65
VDD (Max) (V)	3.3
VIO (Min) (V)	/
VIO (Max) (V)	/
P0.1dB (dBm)	31
IL (Min) (dB)	0.2
IL (Max) (dB)	1
ISO (Max) (dB)	35
ISO (Min) (dB)	16
Temperature	-40℃~105℃
Package (mm)	DFN 1.1X0.7-6L

封装 | 引脚 | 尺寸

DFN 1.1X0.7-6L

特性

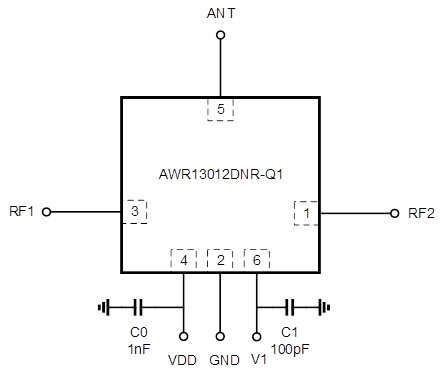

The AWR13012DNR-Q1 is a SPDT switch with low insertion loss and high Isolation. It can be used to support band switching and mode switching for Wireless Communication. The symmetrical design of internal ports makes it convenient for PCB routing and adjustment of receiving and transmitting signals. The band/mode switching is realized by the GPIO pins as referenced in the chip block diagram and the control logic. The AWR13012DNR-Q1 is provided in a compact DFN 1.1X0.7-6L package.

技术文档

	类型	项目标题		语言		日期
	产品手册	DS_AWR13012-Q1_EN_V1.0		英文		2026-05-22
	可靠性报告	Automotive Reliability Qualification Report For AWR13012DNR-Q1		英文		2026-05-21
