| Load Current (Max) (mA) |
150 |
| Power Supply (Min) (V) |
2.7 |
| Power Supply (Max) (V) |
24 |
| Vout (Min) (V) |
5 |
| Vout (Max) (V) |
5 |
| Iq (Typ) (μA) |
1.5 |
| Vdropout (mV) |
650mV@100mA |
| PSRR @1KHz(dB) |
60 |
| Output Noise (μVrms) |
- |
| Discharge |
NO |
| Output options |
Fixed |
| Temperature |
-40℃~105℃ |
| IO Level (V) |
/ |
| Package (mm) |
SOT23-3L |
● Input voltage range: 2.7V to 24V
● Available in fixed voltage option: 1.8V, 3.3V, 5V
● Output voltage tolerances of ±2%
● Rated output current: 150mA
● Ultra Low Quiescent current: typical 1.5µA
● Typical 650mV dropout voltage @ IOUT=100mA
● Internal short-circuit current limit
● Internal thermal overload protection
● SOT23-3L package

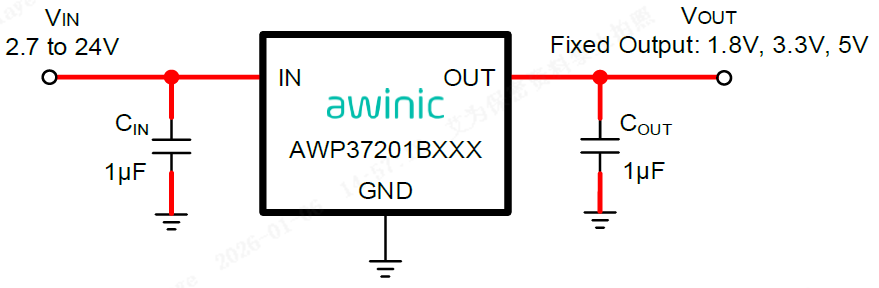

AWP37201BXXX is a ultra-low quiescent current regulator features low dropout voltage and low current in the standby mode. With less than 1.5μA quiescent current at no load, the AWP37201BXXX is ideally suited for standby micro-control-unit systems, especially for always-on applications like E-meters, fire alarms, smoke detectors and other battery operated systems.
With adequate heat sinking, the AWP37201BXXX can deliver 150mA output current. Current limiting is included to limit the peak output current to a safe value. The AWP37201BXXX retains all of the features that are common to low dropout regulators including a low dropout PMOS pass device, short circuit protection, and thermal shutdown..
The AWP37201BXXX is available in SOT23-3L package, which is useful for cost-effective board manufacturing.
