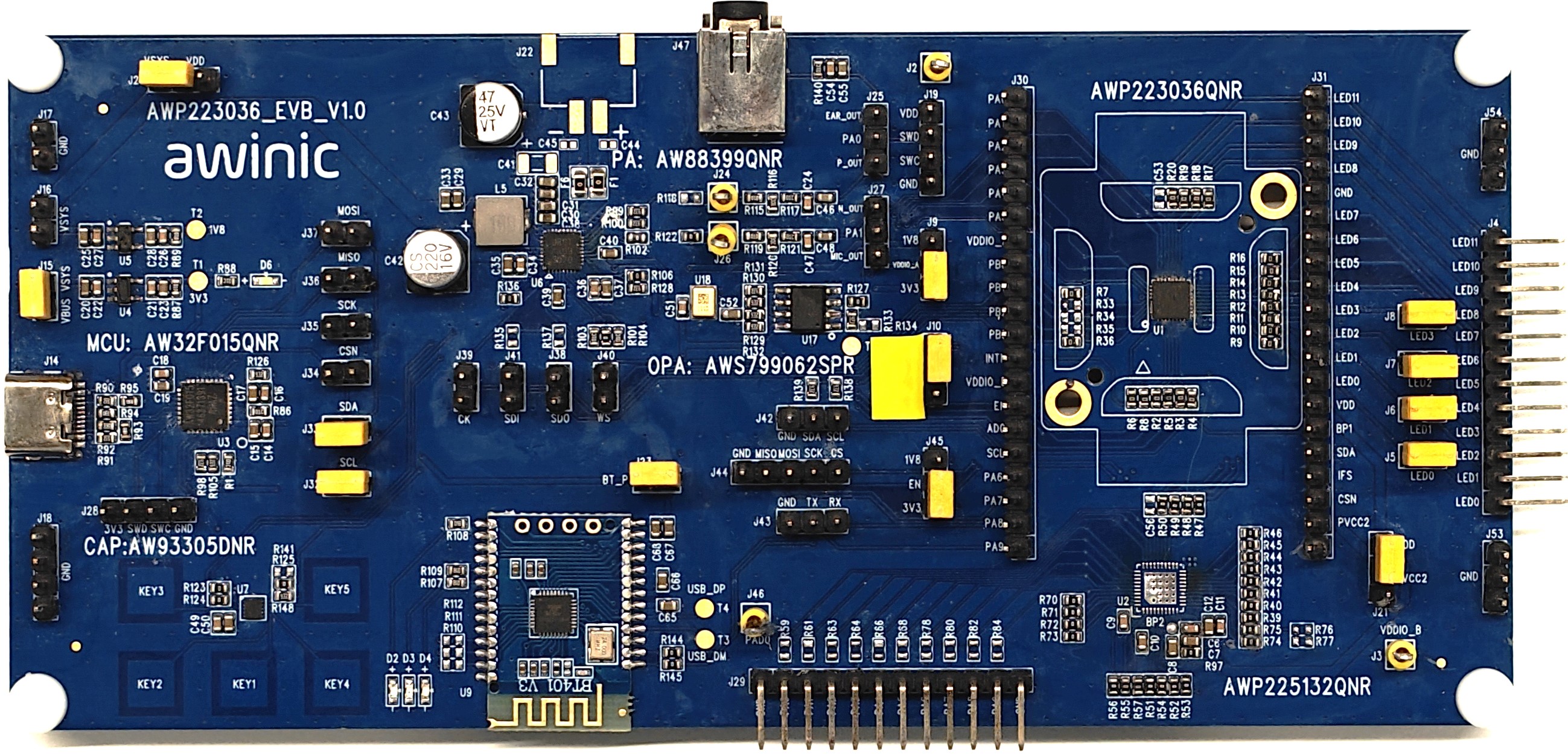

AWP223036QNR

产品手册：

在线预览 - AWP223036QNR - 产品手册

参考价格

1-99￥27.86
100-249￥22.84
250-499￥18.39
500-999￥14.49
1000+￥11.14

产品详细信息

参数

Channel	36
Global Current Level	256
Current Levels for Color-Mixing	256
Current Levels for Dimming	65536
Charging Indicator	NO
Control Interface	IIC IIS PWM SPI GPIO
Power Supply (Max) (V)	5.5
Global Max Current(mA)	63.75
IO Level (V)	1.2 1.8 3.3
Audio Sync.	YES
Power Supply (Min) (V)	VDD:2.7V VDDIO_A:1.2V VDDIO_V:1.2V
Auto Breath	YES
Temperature	-40℃~105℃
Topology	Matrix
Package (mm)	QFN 4X4-32L

封装 | 引脚 | 尺寸

QFN 4X4-32L

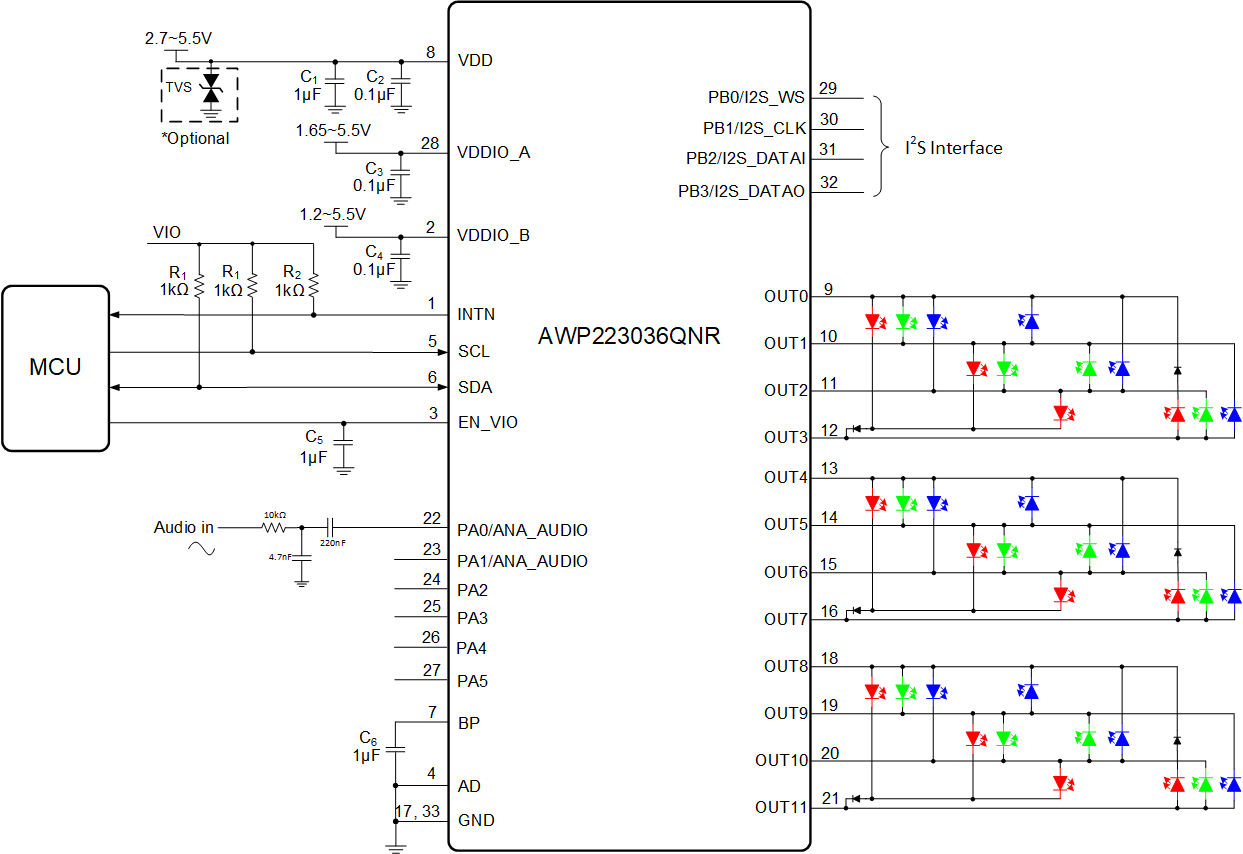

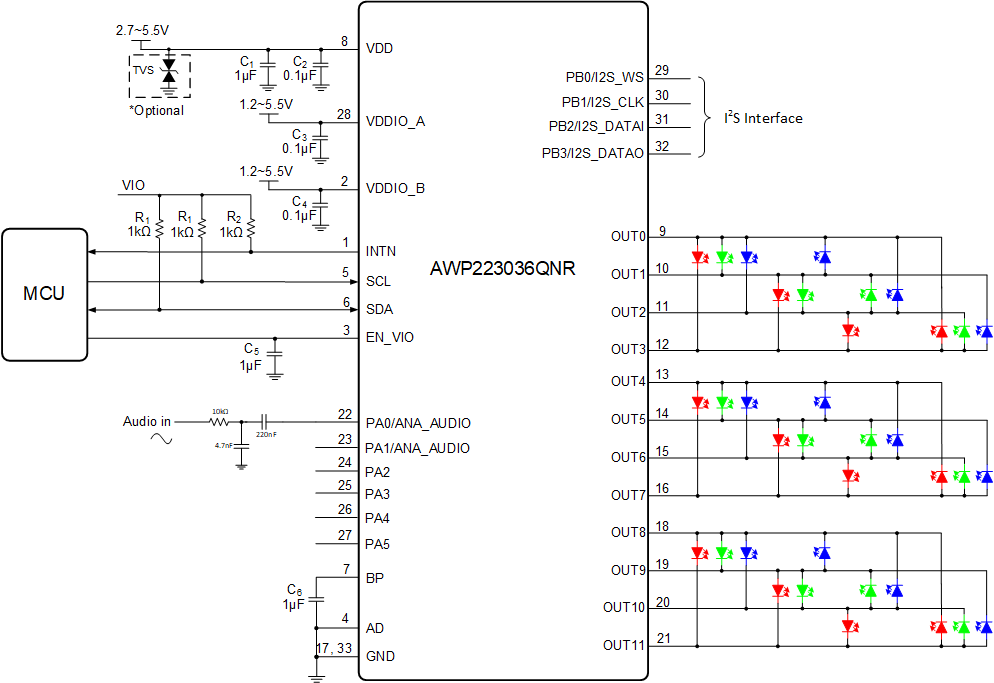

特性

1. 32-bit MCU, Frequency up to 48MHz 2. 64kB Flash with ECC, 8kB SRAM with ECC 3. Up to 36 LEDs or 12 RGB LEDs 4. Analog and Digital (I2S) audio input 5. LED effect with Audio Synchronization 5.1. Analog audio input: 12bit ADC, -12dB~58dB PGA for gain adjustment 5.2. I2S digital audio input 6. 63.75mA maximum current per channel 7. 256-level global current configuration 8. Individual 256-level constant current for color-mixing (16.8 million colors) 9. Individual 65536-level PWM for dimming 10. High-precision current sinks 10.1. Device-to-device error: ±4% 10.2. Channel-to-channel error: ±4% 11. Open/short detection 12. Low-power OSC frequency: 32 kHz 13. Power management and reset 13.1. VDD: 2.7 to 5.5V 13.2. VDDIO_A: 1.2 to 5.5V 13.3. VDDIO_B: 1.2 to 5.5V 14. One 16-bit general purpose timer, two 25-bit basic timers 15. Up to 10 I/O ports 15.1. UART, I2C, SPI, I2S 15.2. 12-bit ADC with 1Mbps 15.3. 5-ch DMA (UART, I2C, SPI, I2S, ADC) 16. Low-active interrupt (INTN) 17. Embedded CRC engine 18. Debug mode: SWD, I2C(slave) 19. Package: QFN 4X4-32L
