AWD8833CQNR

12V 1A Dual H-bridge Motor driver

产品手册：

在线预览 - AWD8833CQNR - 产品手册

参考价格

1-99￥4.61
100-249￥3.78
250-499￥3.05
500-999￥2.40
1000+￥1.85

产品详细信息

参数

Motor Type	Stepper Motor
H bridge	2
Micro Step	1/2
VDD (Min) (V)	2.5
VDD (Max) (V)	12
Peak Current (A)	1.0
Ron (mΩ)	1140
Control Mode	PWM
CTRL IF	HD (GPIO)
Temperature	-40℃~85℃
Function	-
Package (mm)	QFN 3X3-16L

封装 | 引脚 | 尺寸

QFN 3X3-16L

特性

2.5V to 12V Supply Power Voltage 1A Maximum Drive Current Low-Power Sleep Mode With 500-nA Maximum Sleep Current Rdson HS + LS: Typical 1.14Ω Dual H-Bridge Motor Driver 1 Stepper Motor or 2 DC Motors 1 DC Motor on Parallel Mode Decay Modes Supported: –Slow Decay –Fast Decay Over Current Protection (OCP) Thermal Shutdown (TSD) Under Voltage Lockout (UVLO) Supported Package and Footprint: WBQFN3mm×3mm-16L package WBETSSOP-16L package

说明

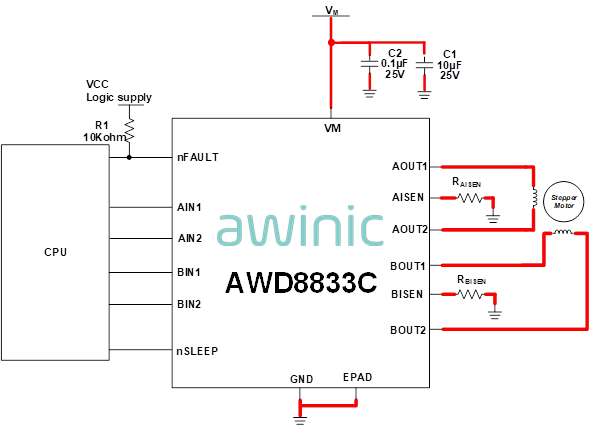

The AWD8833C provides a dual H-bridge motor driver solution for Point-of-Sale printer, Video Security Cameras, Robotics,and other mechatronic applications.
The device has two H-bridges that can drive one bipolar stepper motor, two brush DC motors, solenoids in other inductive loads.
Each H-bridge output consists of a pair of N-channel and P-channel MOSFETs that regulate the winding current. The device can support peak currents of up to 1A per bridge. Current capability is slightly reduced at lower VM voltages.
Internal shutdown functions are provided for Over-current protection, Short-circuit protection, Under-voltage lockout, and Over-temperature protection.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AWD8833C 硬件设计指南		中文		2023-07-26
	产品手册	DS_AWD8833C_EN_V1.5		英文		2025-09-18
