| Output Type |
Analog |
| VDD (Min) (V) |
2.5 |
| VDD (Max) (V) |
6.0 |
| Sensitivity (mV/Gs) |
2.50 |
| Sleep Current (μA) |
0.2 |
| BandWidth (kHz) |
10 |
| Noise(mVrms) |
0.96 |
| Temperature |
-40℃~125℃ |
| linearity(%) |
±1.5% |
| Package (mm) |
DFN 3X2-6L |
-Ratiometric linear hall effect magnetic sensor.
-Analog output with VREF / 2 quiescent offset
-High-impedance output during ｓｌｅｅｐ mode.
-Operates from 2.5V and 5.5V power supplies
-Less than 1μA power consumption in the ｓｌｅｅｐ mode.
-Sensitivity selection
AW86560DNR: 1.25mV/G
AW86561DNR: 2.50mV/G
AW86562DNR: 5.00mV/G
AW86563DNR: 10.0mV/G
-Reference voltage (VREF pin).
-Temperature-stable quiescent voltage output and sensitivity
-Wide operating temperature range: -40 ℃ to 125℃
-WBDFN 3mm X 2mm X 0.75mm-6L package

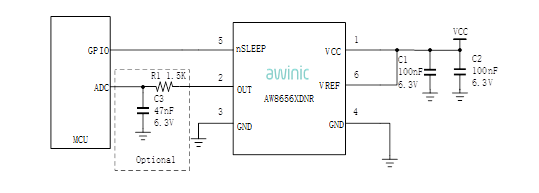

The AW8656XDNR are linear Hall effect IC that
respond proportionally to magnetic flux density..
The quiescent output voltage of these devices is
50 % nominal of the ratiometric supply reference
voltage applied to the VREF pin of the device.
The AW8656XDNR consume 2.6 mA of current in
the active mode. minimize current consumption to
less than 1 μA through the addition of a userselectable
sleep mode.
The AW8656XDNR features magnet temperature
compensation to counteract how magnets drift for
linear performance across a wide –40°C to +125°C
temperature range. Device options for no
temperature compensation of magnet drift are also
available.
The AW8656XDNR are available in 6 pin DFN and
are rated over –40°C to +125°C. The package is
available in a lead (Pb)free version.
