AW86502EBCADNR-MC

带磁校准的高灵敏度全极性霍尔效应开关

产品手册：

在线预览 - AW86502EBCADNR-MC - 产品手册在线预览 - AW86502EBCADNR-MC - 产品手册

参考价格

1-99￥1.61
100-249￥1.32
250-499￥1.06
500-999￥0.84
1000+￥0.64

产品详细信息

参数

Pole Type	omnipolar
VDD (Min) (V)	1.3
VDD (Max) (V)	3.6
Sensitivity Bop (Gs)	±30Gs
Sensitivity Brp (Gs)	±20Gs
BHY (Gs)	10
IDD_AVG (μA)	1.2
IDD_Sleep (μA)	30
Channel	1
Temperature	-40℃~85℃
Output Type	Push Pull
Package (mm)	DFN 1.6X1.2-4L

封装 | 引脚 | 尺寸

DFN 1.6X1.2-4L

特性

高灵敏度全极性工作微功耗工作，典型值 1.2uA（平均值：VDD=1.8V）超小封装：DFN 1.6X1.2-4L 磁校准板载电压稳压器，支持 1.3V 至 3.6V 范围宽工作温度范围：-40°C 至 85°C

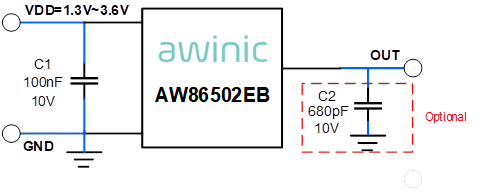

说明

The AW86502EBCADNR-MC is an omnipolar Hall-effect switch with magnet calibration, ideal for applications demanding high consistency in open-close angle detection and other position sensing scenarios. The device supports omnipolar magnetic field response with a supply voltage range of 1.3 V to 3.6 V. It achieves an ultra-low average operating current of only 1.2uA, benchmarked among the lowest in the industry. When the magnetic flux density exceeds Bop (operating point), the device output is pulled low. When the magnetic flux density falls below Brp (release point), the device output is pulled high. When the magnetic flux density lies between Bop and Brp, the device output retains its previous state

技术文档

类型	项目标题	语言	日期
产品手册	DS_AW86502EBCADNR-MC_CN_V1.0	中文	2026-09-10
产品手册	DS_AW86502EBCADNR-MC_EN_V1.0	英文	2026-09-10
可靠性报告	Reliability Qualification Report For AW86502EBCADNR-MC	英文	2026-09-10
