| Motor Type |
BDC Motor |
| H bridge |
1 |
| Micro Step |
NA |
| VDD (Min) (V) |
2 |
| VDD (Max) (V) |
7 |
| Peak Current (A) |
1 |
| Ron (mΩ) |
770 |
| Control Mode |
PWM |
| CTRL IF |
GPIO |
| Temperature |
-40℃~125℃ |
| Function |
ERM Driver |
| Package (mm) |
WBDFN 2X2-8L(0.75) |
Drives a erm
Rdson HS + LS: 770mΩ(Typ)
Supply Voltage Range 2V to 7V
Standby current: 0.1μA
1A Maximum Drive Current
Brake function integrated
Discharge function integrated
WBDFN 2mm×2mm×0.75mm-8L package
Over-Current Protection
Over-Temperature Protection
Under-Voltage Protection

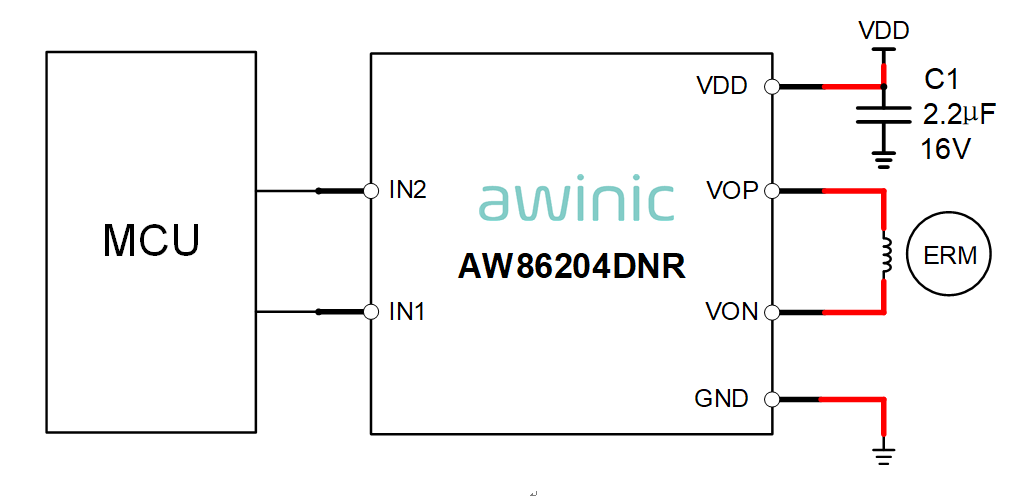

The AW86204 is a low cost ERM actuator driver formobile phone and wearable devices, the brake function can reduce the fall time of actuator significantly. And the discharge function can protecting chips from the impact of overshoot caused by inductive current storage.The AW86204 has a PWM(IN1 and IN2) input interface, which is compatible with industry standard devices. The AW86204 integrate a H-driver to control the output.Internal shutdown functions are provided for Over-current protection, Over-temperature protection and Under-voltage Protection.
