| Actuator Type |
SOC-OIS |
| Output I(mA) |
±160mA |
| VDD (Max) (V) |
3.6 |
| VDD (Min) (V) |
2.6 |
| I2C (Hz) |
100K
400K
1M |
| I2C Addr |
Configurable |
| IQ (mA) |
5 |
| ISD (μA) |
15 |
| Temperature |
-40℃~85℃ |
| Control Mode |
/ |
| ADC (bit) |
16 |
| Package (mm) |
FOWLP 4.4X1.7-44B |
4-ch closed-loop control
ARM 32-bit STARCU with FPU and DSP，frequency up to 96MHz
128KB Flash, SRAM: 64KB for program and 16KB for data, 8KB ROM
Analog: VAVDD = 2.6V to 3.6V,
Driver: VVM = 1.8V to 3.6V,
I/O: VIOVDD = 1.1V to 3.6V
Current type linear driver (4-ch,12-bit), default Imax. = ±160mA,Imax can support ±215mA
PGA (8-ch), support 4-ch differential signal input or 8-ch single-ended signal input
Each PGA offset(8-ch,10bit DAC) independently adjustable
PWM driver, support 4-ch current or 4-pairs voltage modulated output
Sigma-delta ADC(13-ch),configurable 12/14/16bit resolution.
DAC(4-ch,8bit), Hall bias current: 0 to 4mA,
DAC(4-ch,8bit),TMR bias voltage: 1.2 to 2.5V
SPI (2-ch), configurable master / slave / monitor mode, configurable 3/4 wire bus
I2C(2-ch), configurable master / slave mode
Support I3C slave and UART
Support Hardware Cordic and Digital Filter

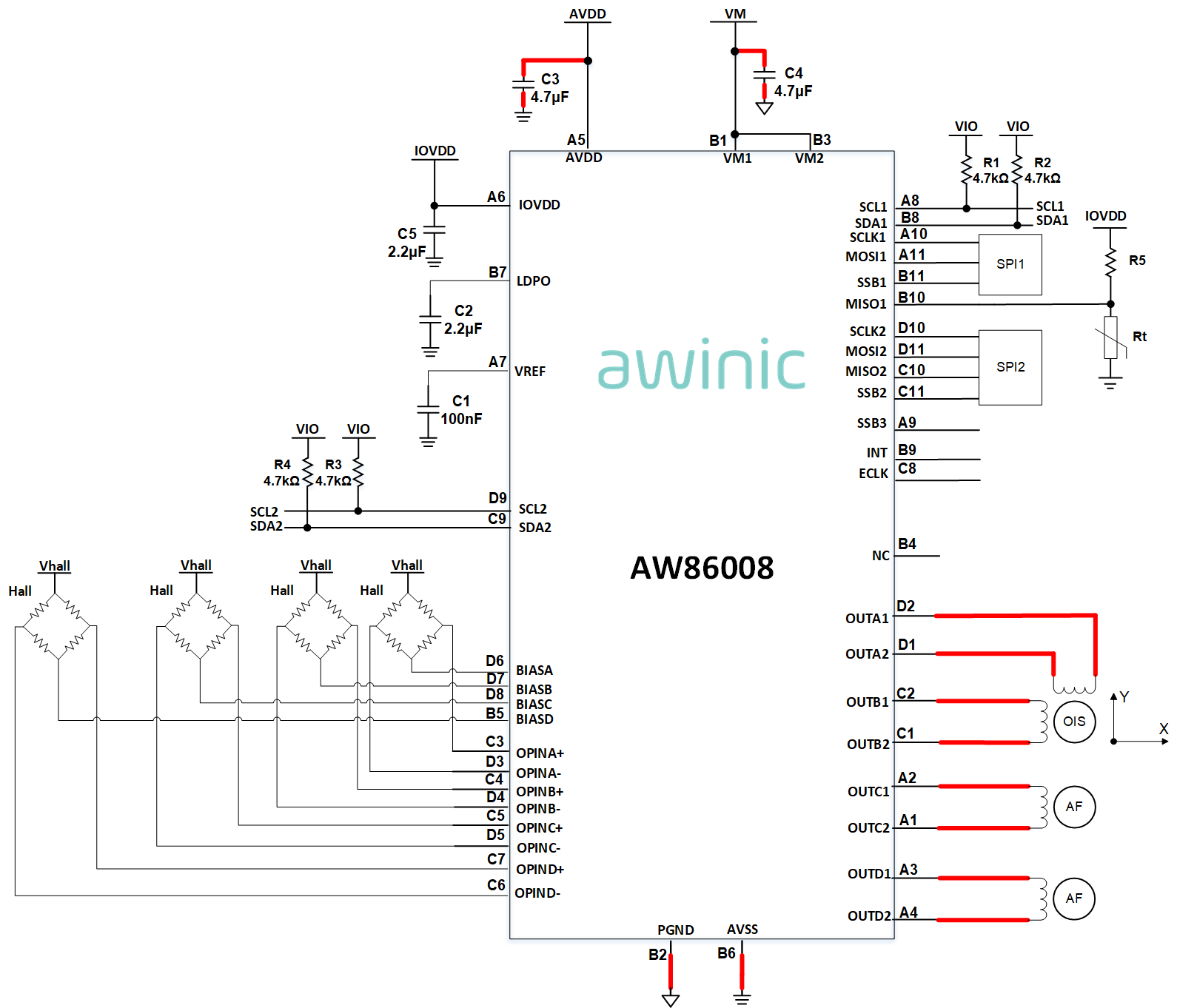

AW86008 is an Optical Image Stabilization (OIS) controller. AW86008 integrates an on-chip 32-bit CPU as controller. 128KB flash and 64+16KB SRAM is provided for program and data storage.
The driver in AW86008 support linear current out.
4-ch HALL bias DAC, which can be configured to current output, provide power supply for HALL sensor. 4-ch TMR bias DAC, which can be configured to voltage output, provide power supply for TMR sensor. 8-ch PGA, which support 8-ch single-ended signal input or 4-ch differential signal input.
There are two SPI modules in AW86008, which support master / slave / monitor mode. Two I2C modules is available, which support master and slave.
