| Control Interface |
IIC |
| Temperature |
-40℃~85℃ |
| DSP |
YES |
| Noise (μV) |
34uVrms @LLM mode |
| PO(W)（8&THD=1%） |
2×33W@8Ω, 24V, THD+N<1% in BTL mode |
| PO(W)（4&THD=1%） |
1×65W@4Ω, 24V, THD+N <1% in PBTL mode |
| IO Supply (Max) (V) |
3.63 |
| IO Supply (Min) (V) |
1.62 |
| Digital Supply (Max) (V) |
3.63 |
| Digital Supply (Min) (V) |
1.62 |
| Power Supply (Max) (V) |
26.4 |
| Power Supply (Min) (V) |
4.5 |
| IV Sense |
NO |
| Loadmin（Ω) |
2 |
| Channel |
2 |
Integrates SKTune Algorithm:Smart Protection (Anti-chip Voltage Limiter Thermal Limiter, Excursion Limiter and Auto Voltage Monitor)、Power tracking Control (PTC)、Input Mixer, Output Crossbar、2x15 Parametric Equalizers (EQ)、Dynamic Equalizer Enhancement (DEE)、Sound Field Expansion (SFE)、Multi-band Dynamic Range Control
Output Power ：2×33W@8Ω, 24V, THD+N<1% in BTL mode 、1×65W@4Ω, 24V, THD+N <1% in PBTL mode ；
Excellent Audio Performance：THD+N≤0.02%@4Ω,1W, 1kHz, PVDD = 12 V：SNR≥110dB@4Ω, 1%, 1kHz, PVDD = 24 V, A-weighted，Noise Level < 34uVrms @LLM mode,Noise Level < 28uVrms @Low Noise Enable ；
High-efficiency Class-D Amplifier：Power efficiency 90%, RDSon 110mΩ，Low quiescent current < 18 mA ，Supports Low-Loss Mode；
I2S/TDM interface ：I2S, Left-Justified and Right-Justified，Supports 1/2/4/6/8 Slots TDM，Supports 32k,44.1k,48k,88.2k,96k,192kHz Sample Rates，Data Width: 16, 20, 24, 32 Bits;
I2C-bus control interface(1MHz)；Extensive Pop-Click Suppression；Volume control (from -96dB to 0dB)；
Multiple switching frequencies:AM/FM avoidance：Supports 384kHz、480kHz、576kHz、768kHz、960 kHz、1200kHz switching frequencies;Support Spread Spectrum to Enhance EMI Performance；
Power Supplies ：PVDD: 4.5V~26.4V，DVDD: 1.8V/3.3V;
Integrated Self-Protection：Over-Current Protection (OCP),Over-Temperature Protection (OTP),Over / Under-Voltage Lock-out (OVLO/UVLO),DC-detect and short-circuit protection;
WBQFN 5X5-32L (0.75) Package

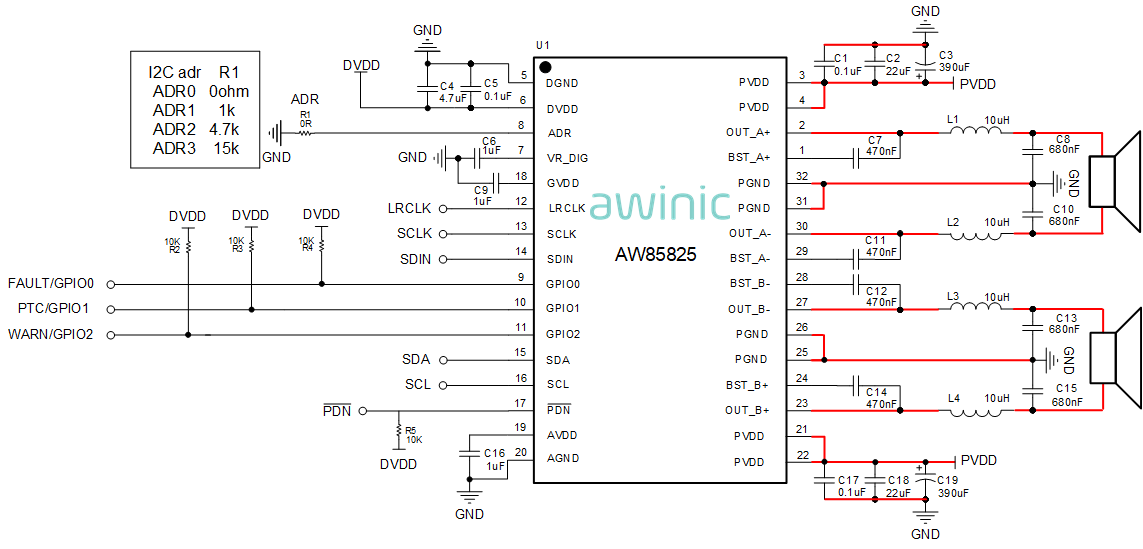

The AW85825 is a high-efficiency, stereo digital Class-D audio amplifier with low power dissipation and sound enrichment.
The supply voltage (PVDD) of an audio amplifier is normally provided by a DC-DC converter. Compared with a fixed PVDD, a variable PVDD that fluctuates based on the audio signal significantly improves efficiency, lowers idle current, and reduces heat.
The powerful audio DSP core of AW85825 implements a proprietary algorithm called PTC(Power tracking Control).The PTC algorithm detects the upcoming audio power demand and provides a PWM control signal for the former DC-DC converter via the GPIO pin.
The AW85825 supports Over-Current Protection, Over-Temperature Protection, DC Protection, Under-Voltage/Over-Voltage Protection, short-circuit Protection to protect the device.
AW85825 is available in a WBQFN 5X5-32L(0.75) Package.
