| Data Rate (Max) (Mbps) |
70 |
| VCCA (Min) (V) |
1.1 |
| VCCA (Max) (V) |
3.6 |
| VCCB (Min) (V) |
1.65 |
| VCCB (Max) (V) |
5.5 |
| ICCA+ICCB (Max) (μA) |
20 |
| Channel |
8 |
| Support |
Open Drain
Push-Pull |
| Temperature |
-40℃~125℃ |
| Transmission Direction |
Auto |
| Package (mm) |
TSSOP-20L |
No Direction-Control Signal Required
Maximum Data Rates
-70Mbps (Push Pull),
-2Mbps (Open Drain)
Power Supply Range:
-A Port and VCCA: 1.1V to 3.6 V
-B Port and VCCB: 1.65 V to 5.5 V
-VCCA ≤ VCCB
Pull Up Resistors are Integrated in A Port and B Port
No Power-Supply Sequencing Required: Either VCCA or VCCB Can be Ramped First
Support Ultra-Low Power Consumption Mode with OE Pin is Low Voltage Level
ESD Protection Exceeds ANSI/ESDA/JEDEC (A Port):
-±4kV Human Body Model (JS-001-2023)
-±1kV Charged-Device Model (JS-002-2022)
IEC 61000-4-2 ESD (B port):
-±6kV Contact Discharge
-±8kV Air-Gap Discharge
WBTSSOP 6.5mmx4.4mm-20L package

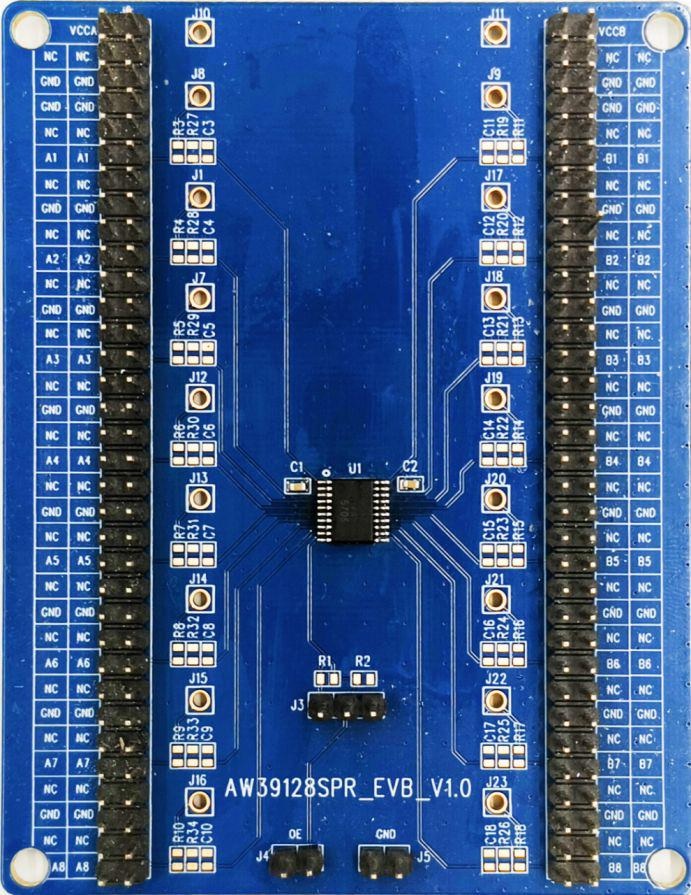

AW39128 is a 8-bit high-performance voltage-level translator without direction control signal, which is a non-inverting converter and can be used to convert digital signal with mixed-voltage systems. It needs two separate power supply rails, with the A ports tracks the VCCA ranging from 1.1V to 3.6V, and the B ports tracks the VCCB ranging from 1.65V to 5.5V. This makes the chip has capabilities of support both lower and higher logic signal levels translation between any of the 1.2V, 1.8V, 2.5V, 3.3V, and 5V voltage nodes.
The OE input circuit is supplied by VCCA. Meanwhile, OE is recommended to be tied to GND through an external pull-down resistor to ensure all I/O to be pulled to the supply voltage. No power supply sequencing requirements means either VCCA or VCCB can be powered up first, and OE should be enabled after both VCCA and VCCB are established.
