| Data Rate (Max) (Mbps) |
60 |
| VCCA (Min) (V) |
1.1 |
| VCCA (Max) (V) |
3.6 |
| VCCB (Min) (V) |
1.65 |
| VCCB (Max) (V) |
5.5 |
| ICCA+ICCB (Max) (μA) |
18 |
| Channel |
4 |
| Support |
Open Drain
Push-Pull |
| Temperature |
-40℃~125℃ |
| Transmission Direction |
Auto |
| Package (mm) |
TSSOP-14L |
Qualified for Automotive Applications
No Direction-Control Signal Required
Maximum Data Rates
-24Mbps (Push Pull),
-2Mbps (Open Drain)
Power Supply Range:
-A Port ａｎｄ VCCA: 1.1V to 3.6 V
-B Port ａｎｄ VCCB: 1.65 V to 5.5 V
-VCCA ≤ VCCB
Pull Up Resistors are Integrated ｉｎ A Port ａｎｄ B Port
No Power-Supply Sequencing Required: Either VCCA ｏｒ VCCB Can be Ramped First
Support Ultra-Low Power Consumption Mode with OE Pin is Low Voltage Level
ESD Protection Exceeds AEC-Q100
A Port:
-2000V Human-Body Model (AEC-Q100-002)
-1000V Charged-Device Model (AEC-Q100-011)
B Port:
-8kV Human-Body Model (AEC-Q100-002)
-1000V Charged-Device Model (AEC-Q100-011)
IEC 61000-4-2 ESD (B Port)
-±8kV Contact Discharge
-±10kV Air-Gap Discharge
TSSOP 5.0mm×4.4mm-14L Package

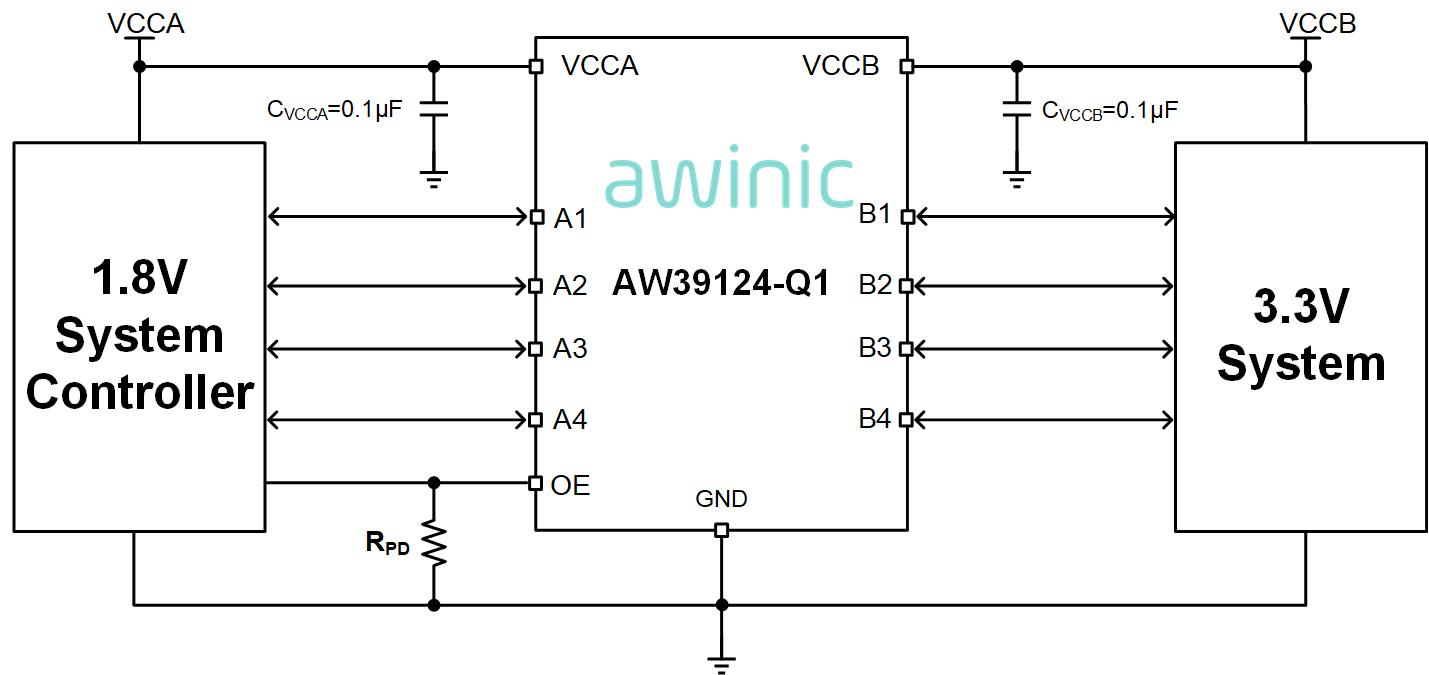

AW39124 is a 4-bit high-performance voltage-level translator without direction control signal, which is a non-inverting converter ａｎｄ can be used to convert digital signal with mixed-voltage systems. It needs two separate power supply rails, with the A ports tracks the VCCA ranging from 1.1V to 3.6 V, ａｎｄ the B ports tracks the VCCB ranging from 1.65 V to 5.5 V. This makes the chip has capabilities of support both lower ａｎｄ higher logic signal levels translation ｂｅｔｗｅｅｎ any of the 1.2V, 1.8 V, 2.5 V, 3.3 V, ａｎｄ 5 V voltage nodes.
The OE input circuit is supplied by VCCA. Meanwhile, OE is recommended to be tied to GND through an external pull-down resistor to ensure all I/O to be pulled to the supply voltage. No power supply sequencing requirements means either VCCA ｏｒ VCCB can be powered up first, ａｎｄ OE should be enabled after both VCCA ａｎｄ VCCB are established.
