AW35711QNR

AW3571X Two-Channel High-Speed Differential 1:2 Switch

产品手册：

在线预览 - AW35711QNR - 产品手册

参考价格

1-99￥7.31
100-249￥5.99
250-499￥4.82
500-999￥3.80
1000+￥2.92

产品详细信息

参数

BW(GHz)	12
IL @ 5GHz (dB)	-1.5
OIRR @ 5GHz (dB)	-20
XTALK @ 5GHz (dB)	-40
Common Mode (V)	0~2.2
Power Supply (Min) (V)	2.7
Power Supply (Max) (V)	3.6
Temperature	-40℃~85℃
IO Level (V)	1.8
Package (mm)	QFN 2X2-18L

封装 | 引脚 | 尺寸

QFN 2X2-18L

特性

 Operating voltage 2.7 to 3.6V  Compatible with USB3.1, PCIe-Gen3, MIPI DSI/CSI  Data rates up to 10Gbps  -3dB bandwidth: Typ. 12GHz AW35710QNR Typ. 12GHz AW35711QNR  Wide common mode voltage 0 to 2.2V  Insertion loss: -1.1dB @4GHz AW35710QNR -1.2dB @4GHz AW35711QNR  Return loss: -20dB @4GHz  Off isolation: -22dB @4GHz  QFN 4.5mm X2.5mm X0.5mm-20L package QFN 2.0mm X2.0mm X0.55mm-18L package

说明

The AW3571X is a high-speed differential 1:2 switch. It can support high speed data transmission protocols such as USB 3.1 Gen 1 and Gen 2, PCI-Gen3, MIPI DSI/CSI. The device supports switching on differential channels between Port B or Port C to Port A under the control of pin SEL. The AW3571X is an analog differential passive switch. The device can operate on any high-speed interface applications in the range of 0 to 2.2V common mode voltage. With employing adaptive tracking, it ensures that the channel holds constant within the entire common mode voltage range.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AW35711 硬件设计指南		中文		2023-05-23
	产品手册	DS_AW3571X_EN_V1.8		英文		2026-02-04

设计和开发

如需其他信息或资源，请查看下方列表，点击标题即可进入详情页面。

硬件开发

评估板

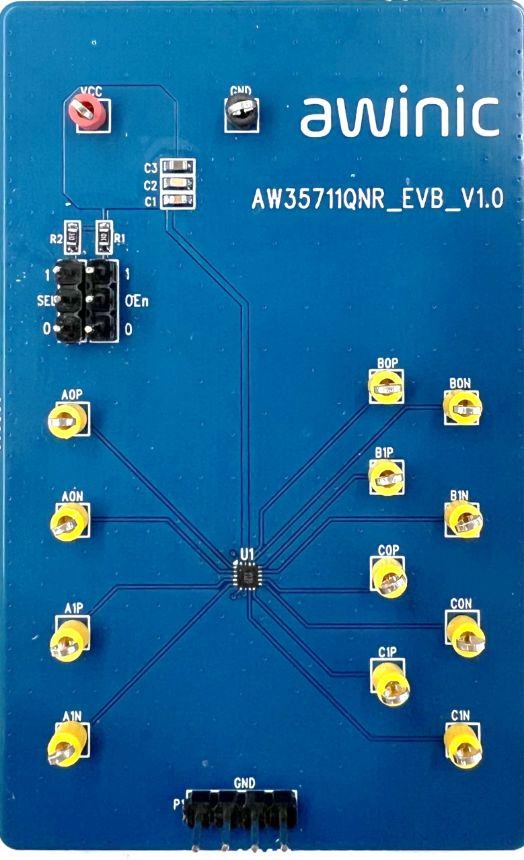

AW35711QNR_EVB_V1.0 — AW35711QNR_EVB_V1.0是艾为双通道高速差分1：2开关的评估板，芯片的关键测试点均在EVB板上单独引出，方便测试

双通道高速差分1：2开关AW35711QNR的EVB评估板

了解详情

硬件开发

评估板

AW35711QNR_EVB_V1.0 — AW35711QNR_EVB_V1.0是艾为双通道高速差分1：2开关的评估板，芯片的关键测试点均在EVB板上单独引出，方便测试

双通道高速差分1：2开关AW35711QNR的EVB评估板

了解详情
