| Channel |
5 |
| Controlled Slew Rate |
YES |
| Enable Logic |
Active High |
| Output Discharge |
Programmable |
| Reverse Current Block |
NO |
| TR (μs) |
-- |
| Max Continuous Current (A) |
1.5 |
| Ron (mΩ) |
48.5 |
| Power Supply (Min) (V) |
2.3 |
| Power Supply (Max) (V) |
5 |
| Temperature |
-40℃~85℃ |
| IO Level (V) |
1.2 |
| Package (mm) |
WLCSP 2.045X1.580-20B |
Input Voltage & Load Current & RON
Channel 1: 2V to 5V, 1.5A, 48.5mΩ
Channel 2: -11V to -0.4V, 1.5A, 49mΩ
Channel 3: 5V to 8V, 300mA, 100mΩ
Channel 4: -13V to -5V, 200mA, 400mΩ
Channel 5: -13V to -5V, 200mA, 400mΩ
VBIAS Voltage Range: 2.3V to 5V
Quiescent Current:
Group A or B on: 120μA @VBIAS=3.5V
Group A and B both on: 120μA @VBIAS=3.5V
Shutdown Current: 0.3μA(typ)
I2C Configuration
Programmable Soft-start inrush current
Programmable On/Off-delay between channels in Power-sequence mode
Programmable Output Discharge
Power Good status indicator
Soft-start time-out protection, Over-temperature protection, Under-voltage Lock-out
WLCSP 2.045mm x 1.580mm -20B package

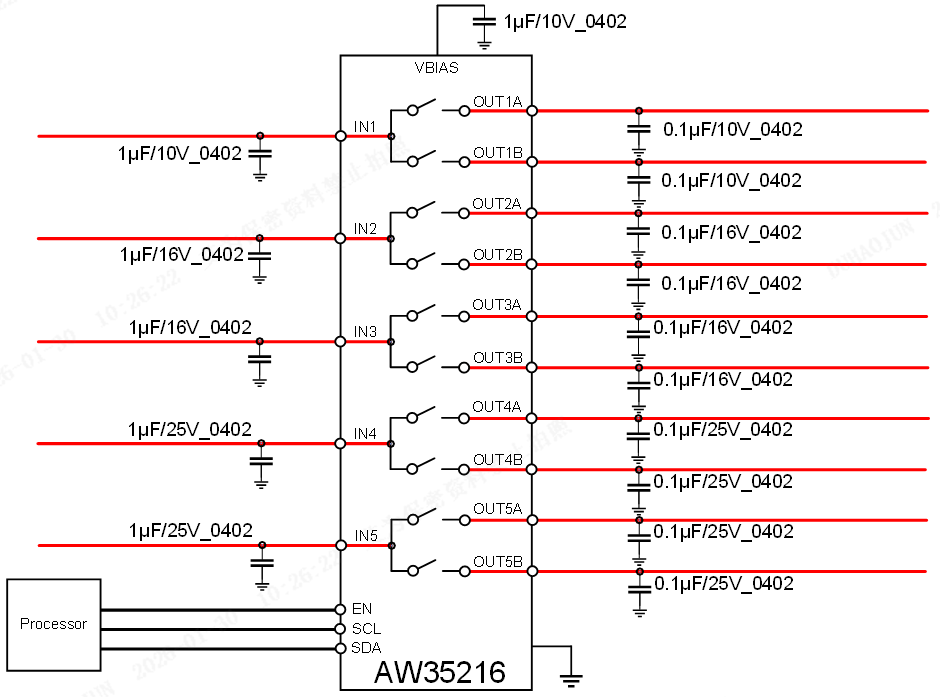

The AW35216 is a 5 channels 2:1 SPST Load Switch with I2C programmable features. The device integrates ten N-MOSFETs and each channel consists of one input and two outputs. The inrush current of each channel is controlled by the internal registers through I2C interface to suppress input voltage drop. Each output can be controlled individually through I2C.
The AW35216 integrates a function called Power-sequence mode which allows the switches of group A or B turn on and off in sequence by only one command. The delay time between channels can be configured through I2C.
The device integrates Soft-start time-out protection, Over-temperature protection and Under-voltage Lock-out.
The AW35216 is available in WLCSP 2.045mm x 1.580mm -20B package.
