AW35114FDR

1.5A Ultra-small Load Switch with Slew Rate Control

产品手册：

在线预览 - AW35114FDR - 产品手册

参考价格

1-99￥1.35
100-249￥1.10
250-499￥0.89
500-999￥0.70
1000+￥0.54

产品详细信息

参数

Channel	1
Controlled Slew Rate	YES
Enable Logic	Active Low
Output Discharge	YES
Reverse Current Block	NO
TR (μs)	274
Max Continuous Current (A)	2
Ron (mΩ)	64
Power Supply (Min) (V)	1
Power Supply (Max) (V)	5.5
Temperature	-40℃~85℃
IO Level (V)	1.8
Package (mm)	FCDFN 0.8X0.8-4L

封装 | 引脚 | 尺寸

FCDFN 0.8X0.8-4L

特性

● Integrated P-channel MOSFET load switch ● Input voltage: 1V to 5.5V ● 2A maximum continuous switch current ● Switch on-resistance(typ.): Rdson=52mΩ at VIN=5.5V Rdson=57mΩ at VIN=4.2V Rdson=64mΩ at VIN=3.3V Rdson=76mΩ at VIN=2.5V Rdson=100mΩ at VIN=1.8V Rdson=164mΩ at VIN=1.2V Rdson=230mΩ at VIN=1V ● Controlled slew rate to limit inrush currents ● Ultra low shutdown current ● Internal EN pull-down/up resistor ● Quick Output Discharge(QOD) for AW35111/ AW35113/AW35114 ● Full time Reverse Current Protection (RCP) for AW35112/AW35112B/AW35113 ● FCDFN 0.8mm×0.8mm-4L package FOWLP 0.8mm×0.8mm-4B package FOWLP 0.9mm×0.9mm-4B package

说明

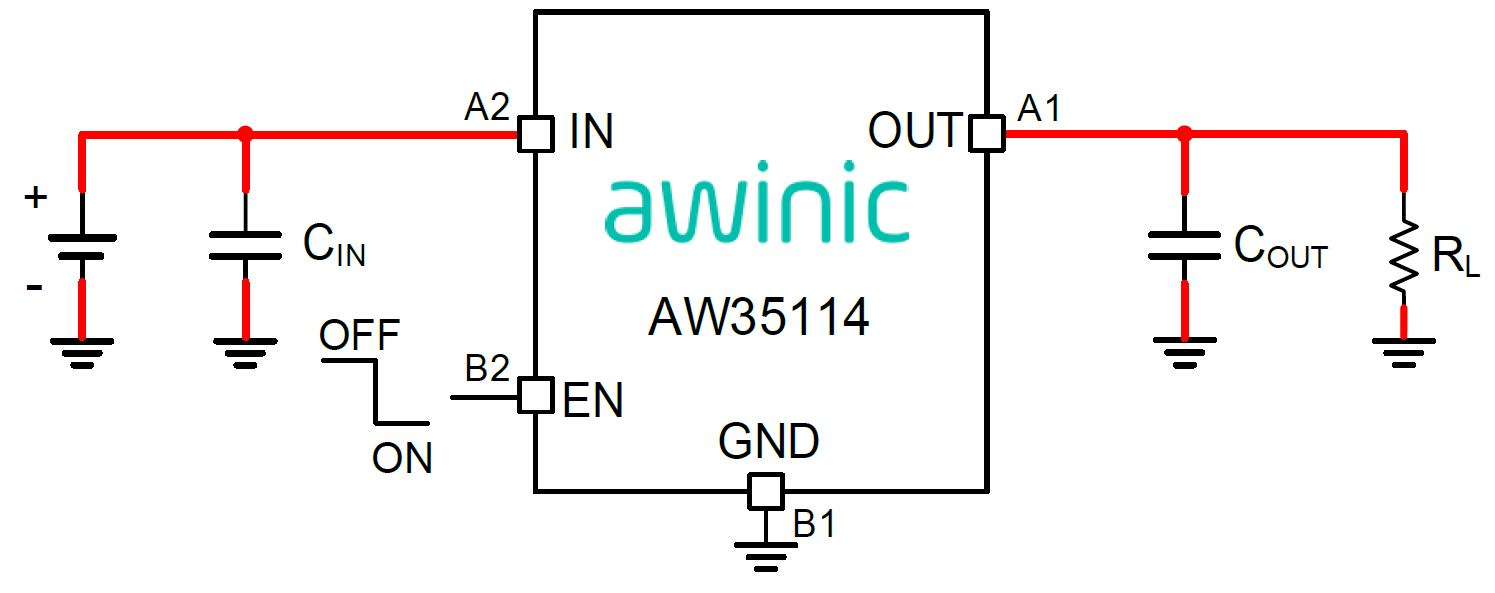

The AW35114 is a load switch with output slew rate control. The device integrates a 64mΩ (typ.) P-channel MOSFET, which can operate over a wide input range of 1.2V to 5.5V.
The AW35114 features output slew rate control, limiting inrush currents during turn-on to protect downstream devices. In addition, AW35114 has QOD function which can prevent the output from floating when the switch is disabled.

技术文档

	类型	项目标题		语言		日期
	产品设计指南	AW3511X 硬件设计指南		中文		2024-03-25
	产品手册	DS_AW3511X_EN_V1.8		英文		2026-07-23
