AW32F020QNR-Q1

LIN Interface Motor Controller with MCU

产品手册：

在线预览 - AW32F020QNR-Q1 - 产品手册

参考价格

1-99￥17.31
100-249￥14.19
250-499￥11.42
500-999￥9.00
1000+￥6.92

产品详细信息

参数

Frequency(MHz)	16
Flash Size (kB)	64
RAM Size(kB)	16
Control Interface	LIN IIC PWM SPI GPIO
I/O Channels	16
ADC Channels	4
Audio Sync.	YES
LED Effcet Controller	YES
Power Supply (Min) (V)	6
Power Supply (Max) (V)	18
Temperature	-40℃~125℃
package	QFN 5X5-32L

封装 | 引脚 | 尺寸

QFN 5X5-32L

特性

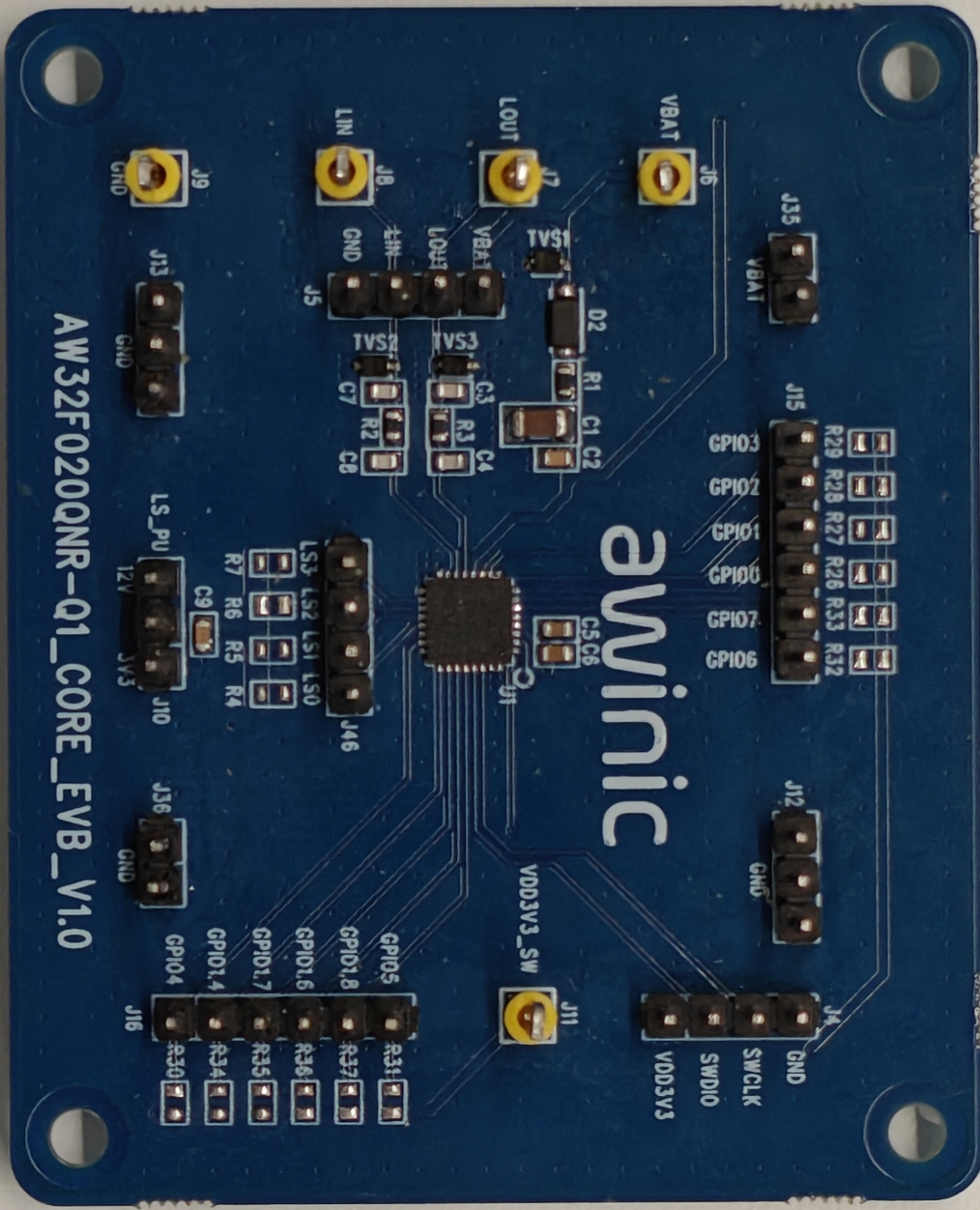

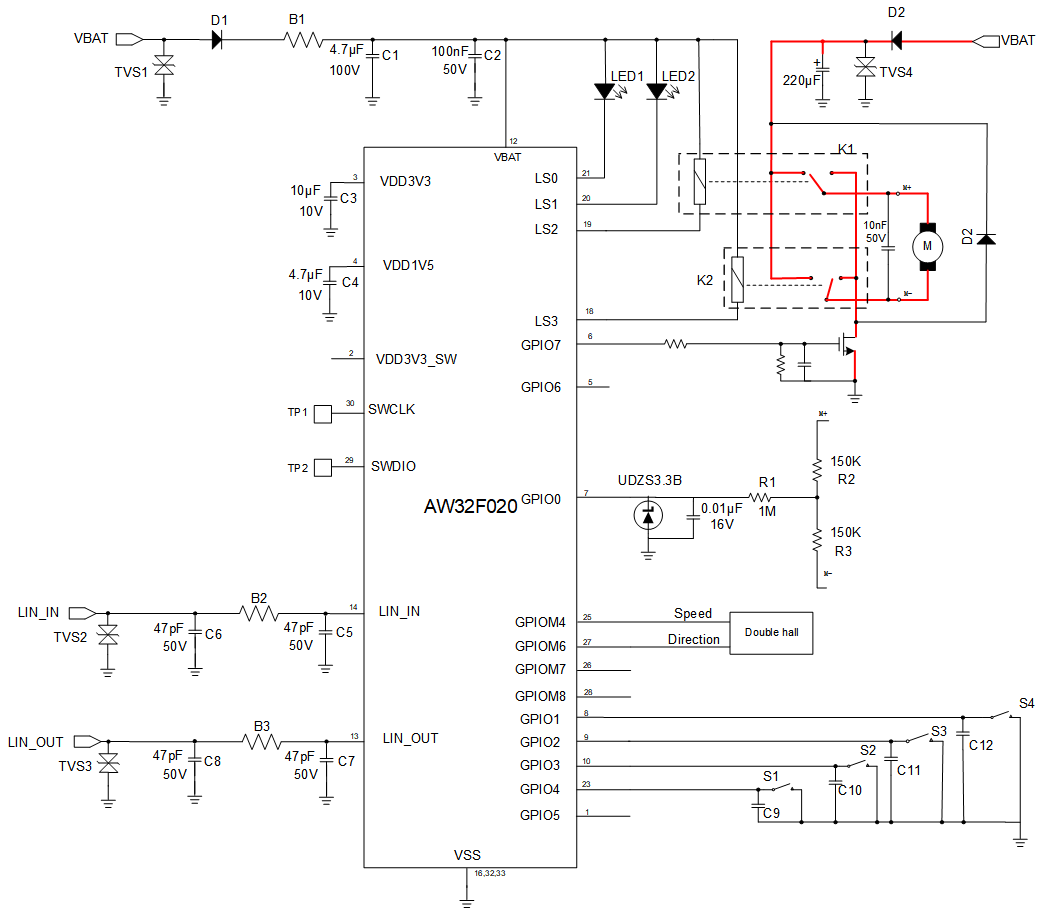

AW32F020QNR-Q1 is a chip designed specifically for automotive window motor controllers, which can improve the convenience of debugging automotive window controls. The AW32F020QNR-Q1 integrates a 32-bit MCU. The MCU provides superior computational performance and an efficient interrupt system, while the peripheral devices use a smaller number of pins and lower power consumption. AW32F020QNR-Q1 integrates 64KB FLASH memory with erase/write protection function. The LIN communication module is integrated to support the transceiver function of LIN communication. Integrated 12-bit ADC for LED junction voltage and temperature detection, supporting 13 channels, VREF voltage can be configured to 1.2V/2.4V/3.3V. Support 4 current sinks, the maximum current of each channel is up to 60mA. Support 16-bit PWM dimming, support 80Hz~250Hz dimming frequency. Two basic timers and one WDT are integrated. 12 general GPIO ports are integrated to support PWM mode and external LIN receiver interconnection. The SWD debug interface is integrated with built-in Power on Reset (POR) and Brown out Reset (BOR) functions to effectively protect the chip. AW32F020QNR-Q1 is packaged in WBQFN 5x5-32L.

技术文档

类型	项目标题	语言	日期
产品设计指南	AW32F020QNR-Q1 Hardware Design Guide	中文	2025-05-19
产品设计指南	DG_AW32F020QNR-Q1_Software_Design_Guide_CN_V1.0	中文	2025-07-30
产品手册	DS_AW32F020_EN_V1.1	英文	2026-02-09
