| Global Current Level |
256 |
| Current Levels for Color-Mixing |
256 |
| Channel |
198 |
| Current Levels for Dimming |
256 |
| Charging Indicator |
NO |
| Control Interface |
SPI |
| Power Supply (Max) (V) |
5.5 |
| Global Max Current(mA) |
120 |
| IO Level (V) |
3.3 |
| Audio Sync. |
NO |
| Power Supply (Min) (V) |
2.7 |
| Auto Breath |
YES |
| Temperature |
-40℃~85℃ |
| Topology |
Matrix |
| Package (mm) |
QFN 5X5-40L |
1.18 current sinks, 11 current switches, up to drive 198 LEDs ｏｒ 66 RGBs.
2.3 pattern controllers for auto breathing ｏｒ group PWM control
3.Global 256-level DC current configuration
4.Individual 256-level PWM for dimming
5.Individual 256-level SL current for color-mixing
6.High-precision current sinks
a)Device-to-device error: ±5%
b)Channel-to-channel error: ±5%
7.EMI ａｎｄ audible noise reduction
a)Phase control
b)Spread spectrum function
c)Programmable slew rate control
8.Individual 198 LEDs open/short detection
9.Multiple-device clock synchronization by SYNC
10.UVLO ａｎｄ over-temperature protection
11.De-Ghost
12.10MHz SPI interface
13.Power supply: 2.7V~5.5V
14.QFN 5mmx5mmx0.55mm-40L package

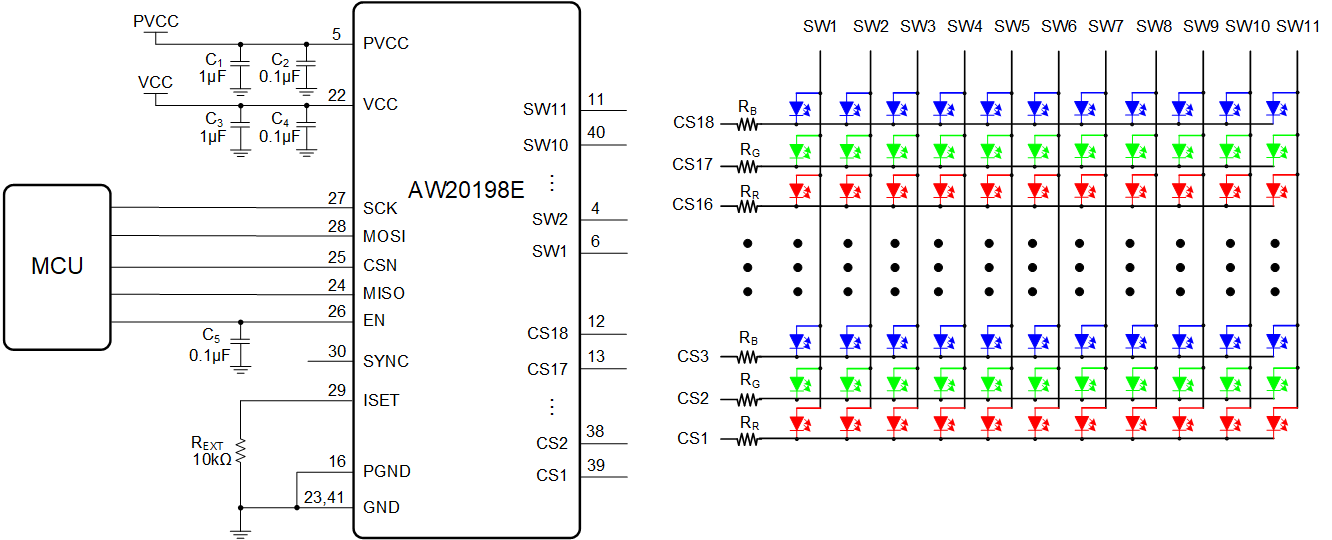

AW20198E is an 18x11 matrix LED driver programmed via an SPI compatible interface. Each channel has individual 8-bit DC current setting for color-mixing and 8-bit PWM current setting for brightness control. The global current of each channel is configured via register GCCR and external resistor REXT.
Three integrated pattern controllers provide auto breathing in group dimming control. Each pattern controller can work in auto breathing in manual control mode. All breathing parameters are configurable, including rising/falling slope, on/off time, repeat times, and minimum/maximum brightness, etc. Each LED’s PWM parameter can be sourced from any one of the 3 pattern controllers optionally.
Phase-delay, phase-inverting, selectable three phase, spread spectrum and slew rate control technology are utilized to reduce EMI and audible noise caused by MLCC when LEDs turn on in off simultaneously.
AW20198E can be turned off with minimum current consumption by either pulling the EN pin low in using the software reset.
AW20198E operates over the temperature range of -40°C to +85°C.
