| Frequency (GHz) |
0.1~5 |
| Switch Feature |
SP8T TRX |
| Control Interface |
MIPI |
| VDD (Min) (V) |
/ |
| VDD (Max) (V) |
/ |
| VIO (Min) (V) |
1.65 |
| VIO (Max) (V) |
1.95 |
| P0.1dB (dBm) |
38.5 |
| IL (Min) (dB) |
0.35 |
| IL (Max) (dB) |
1.15 |
| ISO (Max) (dB) |
47 |
| ISO (Min) (dB) |
26 |
| Temperature |
-40℃~105℃ |
| Package (mm) |
QFN 1.65X1.65-16L |
1. Broadband frequency range: 0.1 to 5 GHz
2. Low insertion loss: 0.55dB typical @ 2.7 GHz
3. High isolation: 35dB typical @ 2.7 GHz
4. P0.1dB @ 38.5dBm
5. MIPI RFFE V2.1 interface
6. No DC blocking capacitors required (unless external DC is applied to the RF ports)
7. QFN 1.65X1.65-16L package

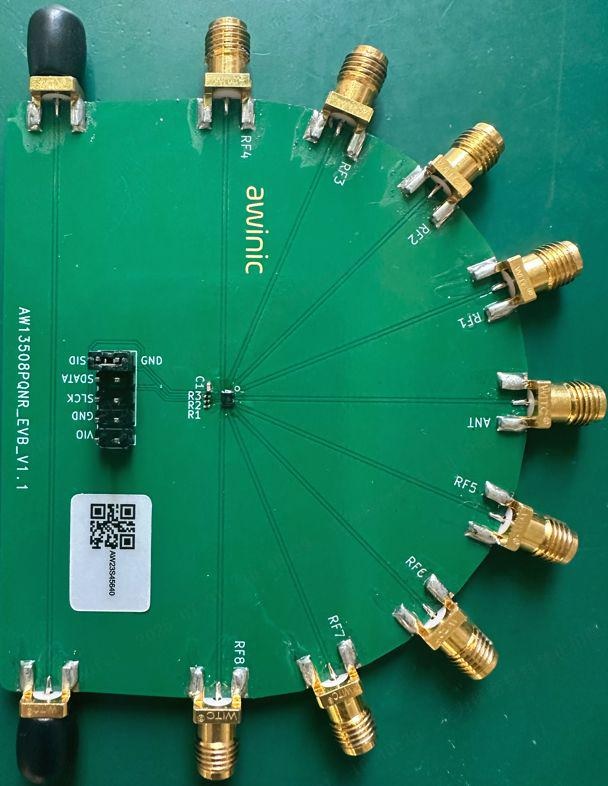

The AW13508PQNR is a SP8T switch with low insertion loss and high isolation. It can be used to support band switching and mode switching in antenna transmit and receive systems for 2G/3G/4G/5G, data cards and tablets.
The AW13508PQNR is perfectly compatible with MIPI RFFE V2.1 control interface. It is provided in a compact QFN 1.65X1.65-16L package.
